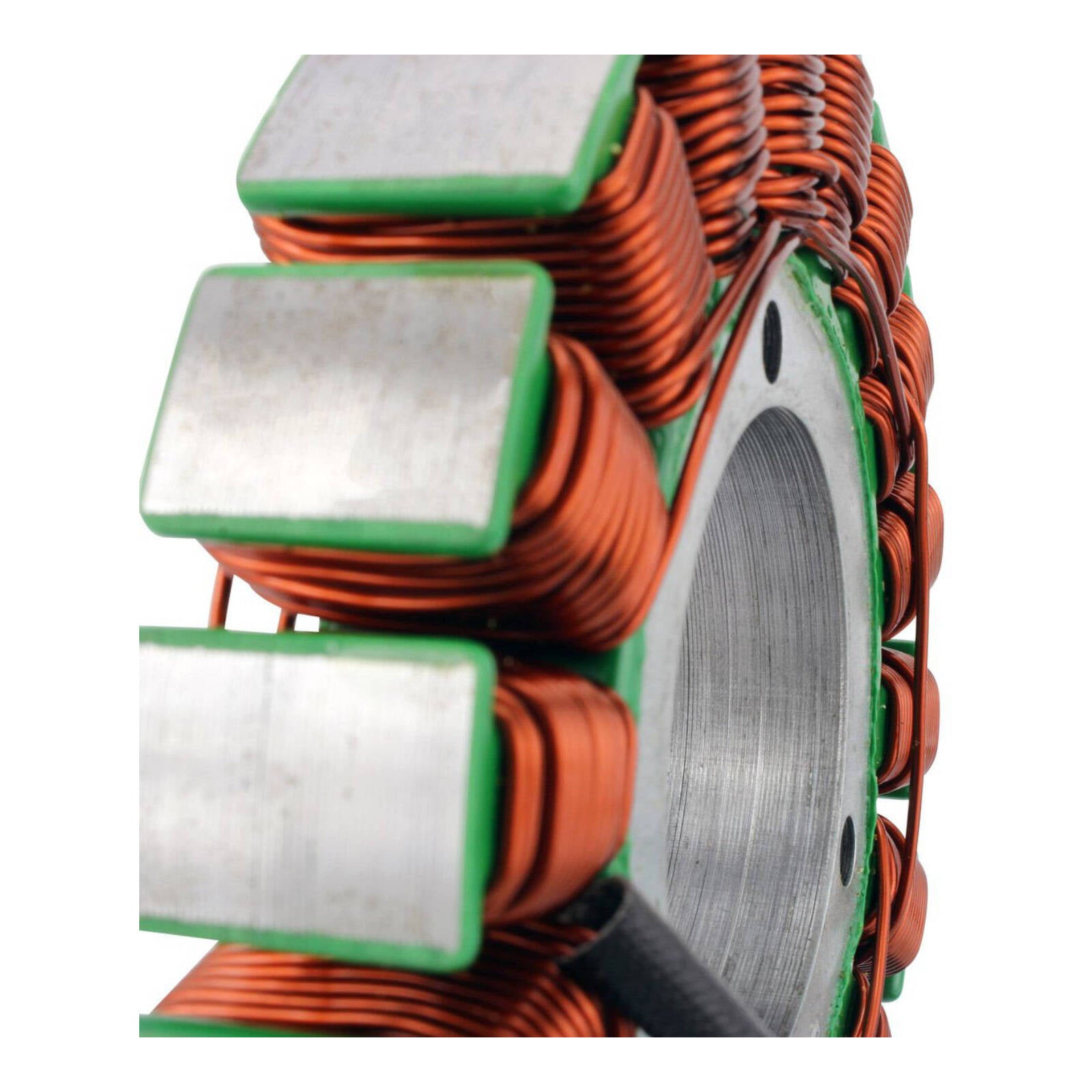

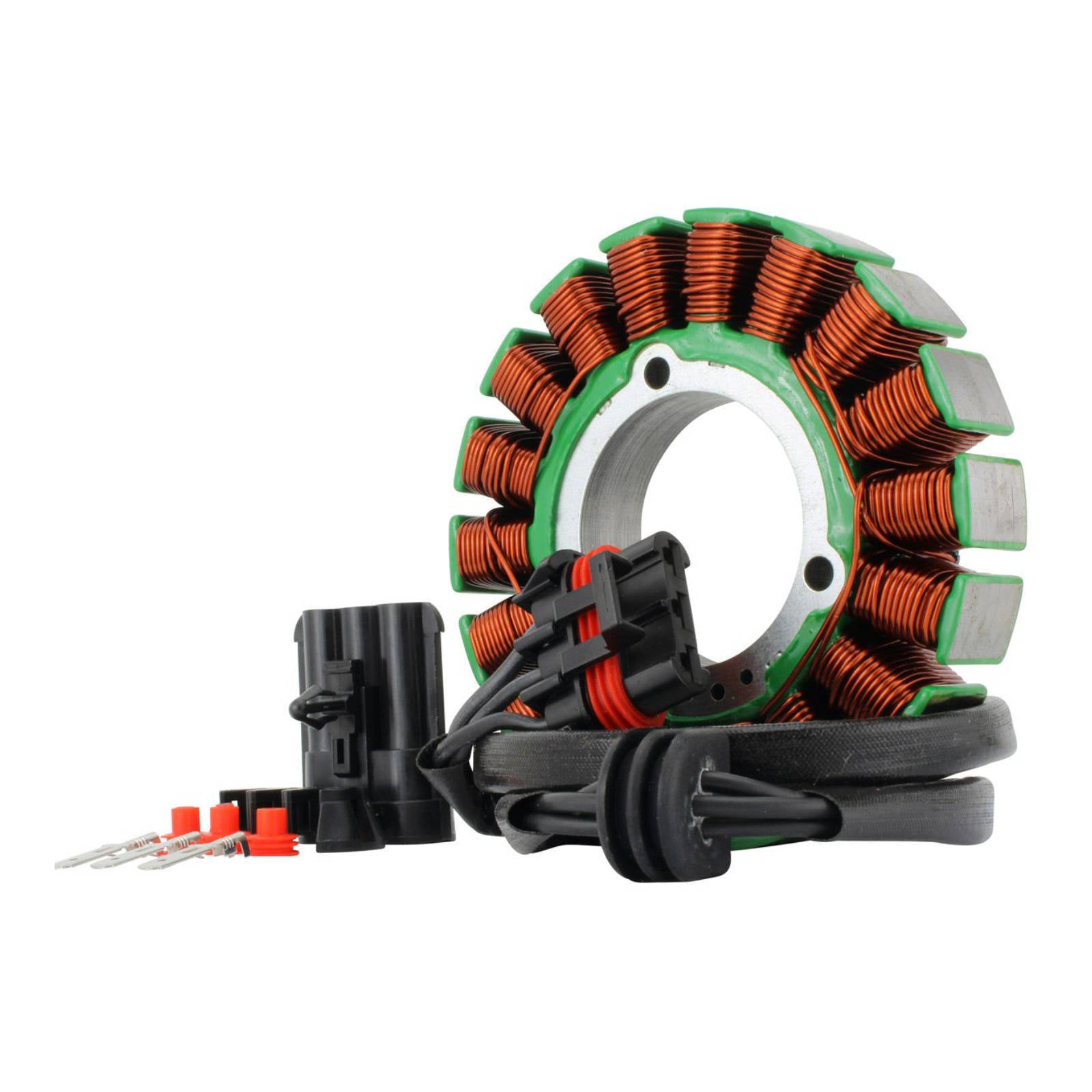

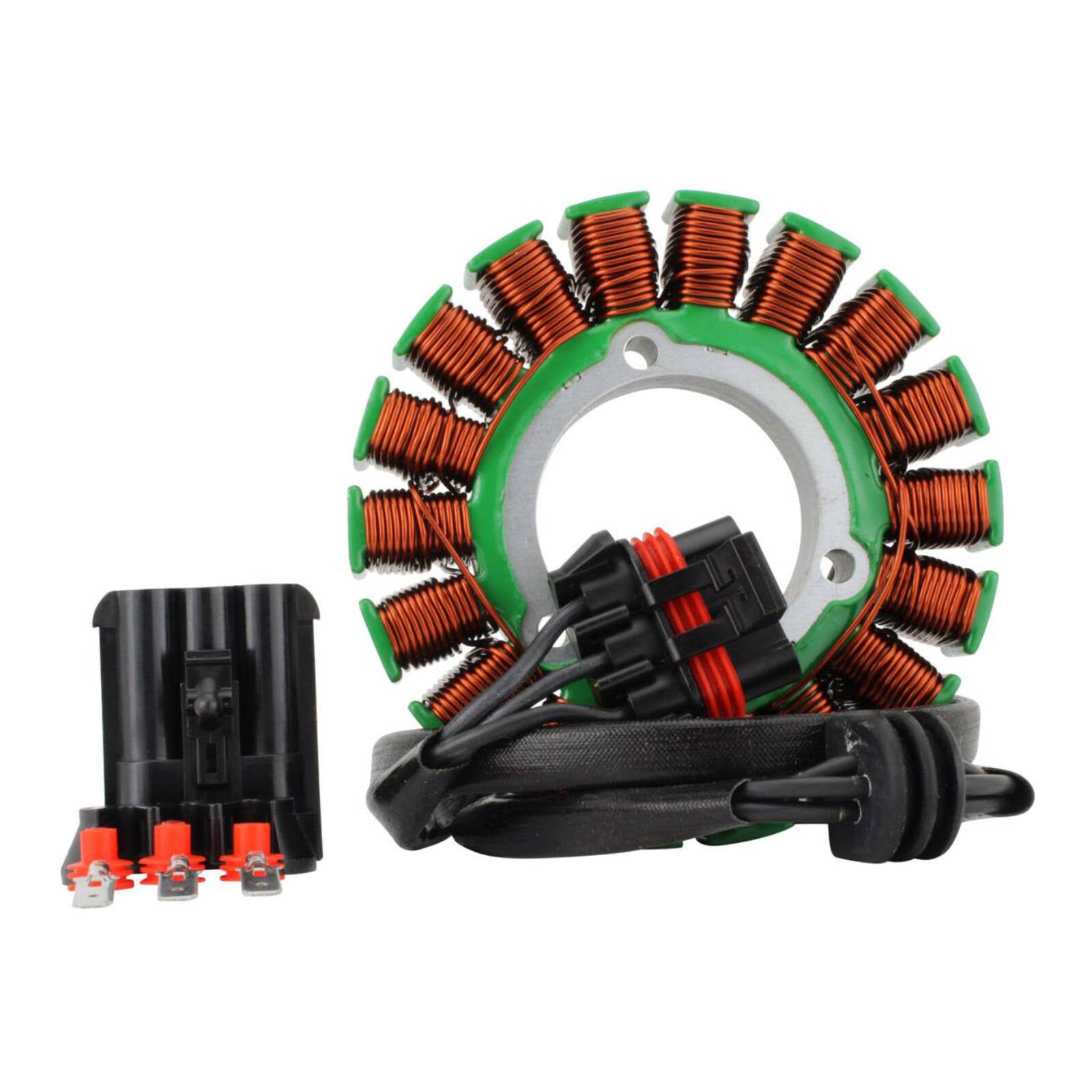

GENERATOR STATOR POLARIS RANGER 1000 18-21 (RMS010-107104)

المخزون منخفض
$479.99
$479.99
الشحن يتم حسابه عند الخروج.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "ينتهي في {{ end_date }}"

Question about this product?

We're happy to help.

Plug-and-play replacement stator from RM Stator.



Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 126 mm
  • Thickness: 21 mm
  • Length of wires stator to grommet: 120 mm
  • Length of wires grommet to plug: 680 mm



Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins:3
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Between each Yellow = 0.6 ohms +-20%
    • Alternator: to ground = O.L



Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested
