GENERATOR STATOR SUZU DL VSTROM 14-16' 18-19'

المخزون منخفض
$429.99
$429.99
الشحن يتم حسابه عند الخروج.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "ينتهي في {{ end_date }}"

Question about this product?

We're happy to help.

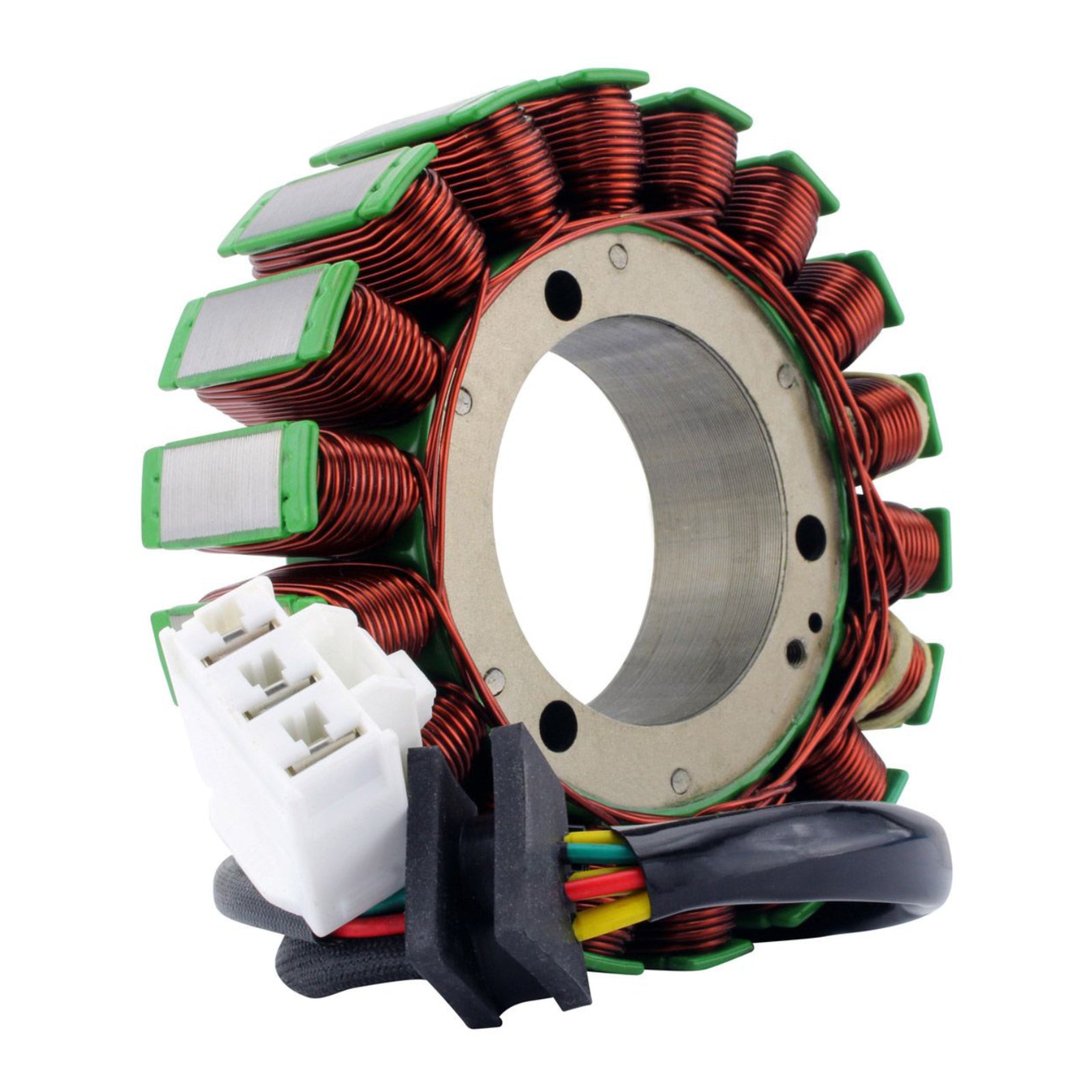

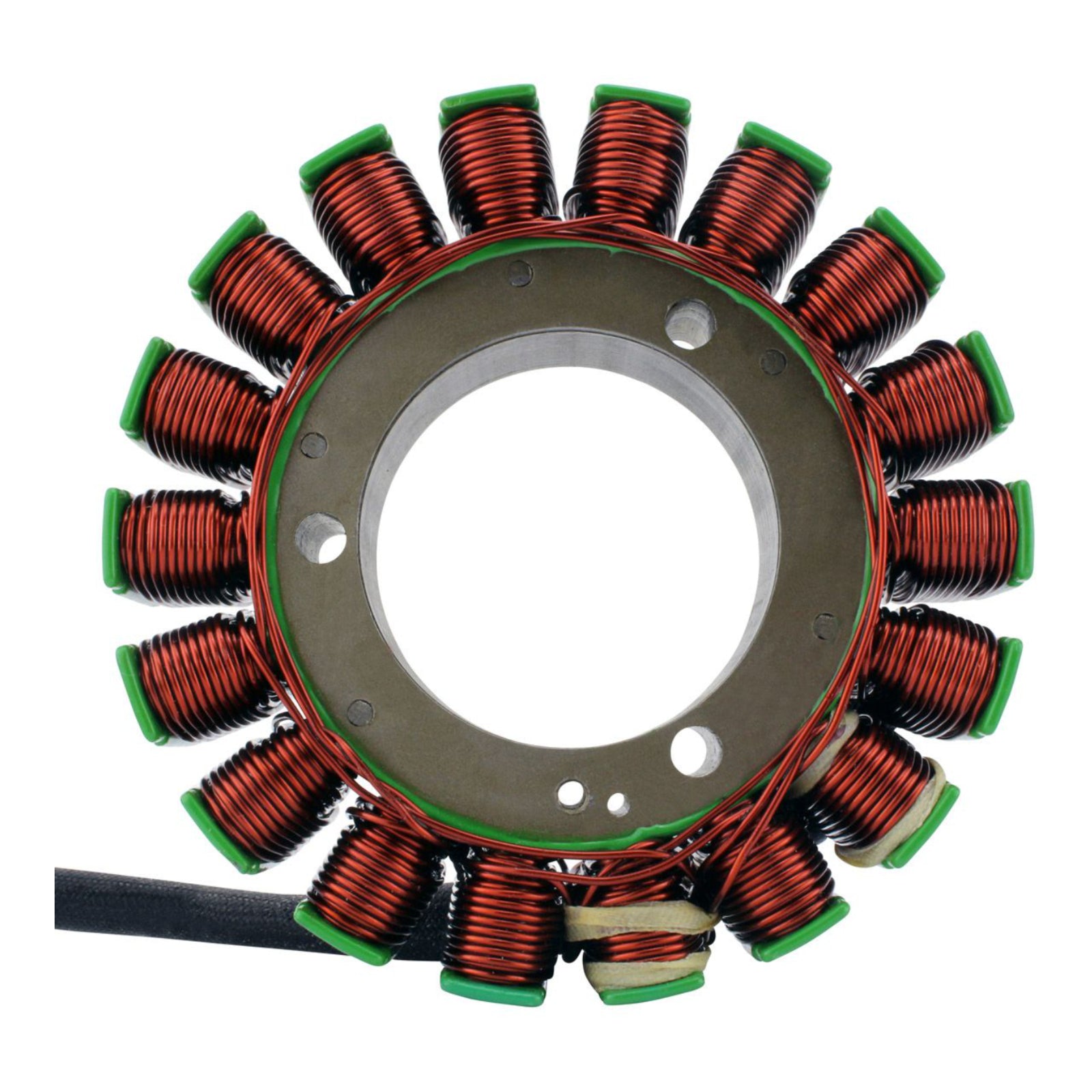

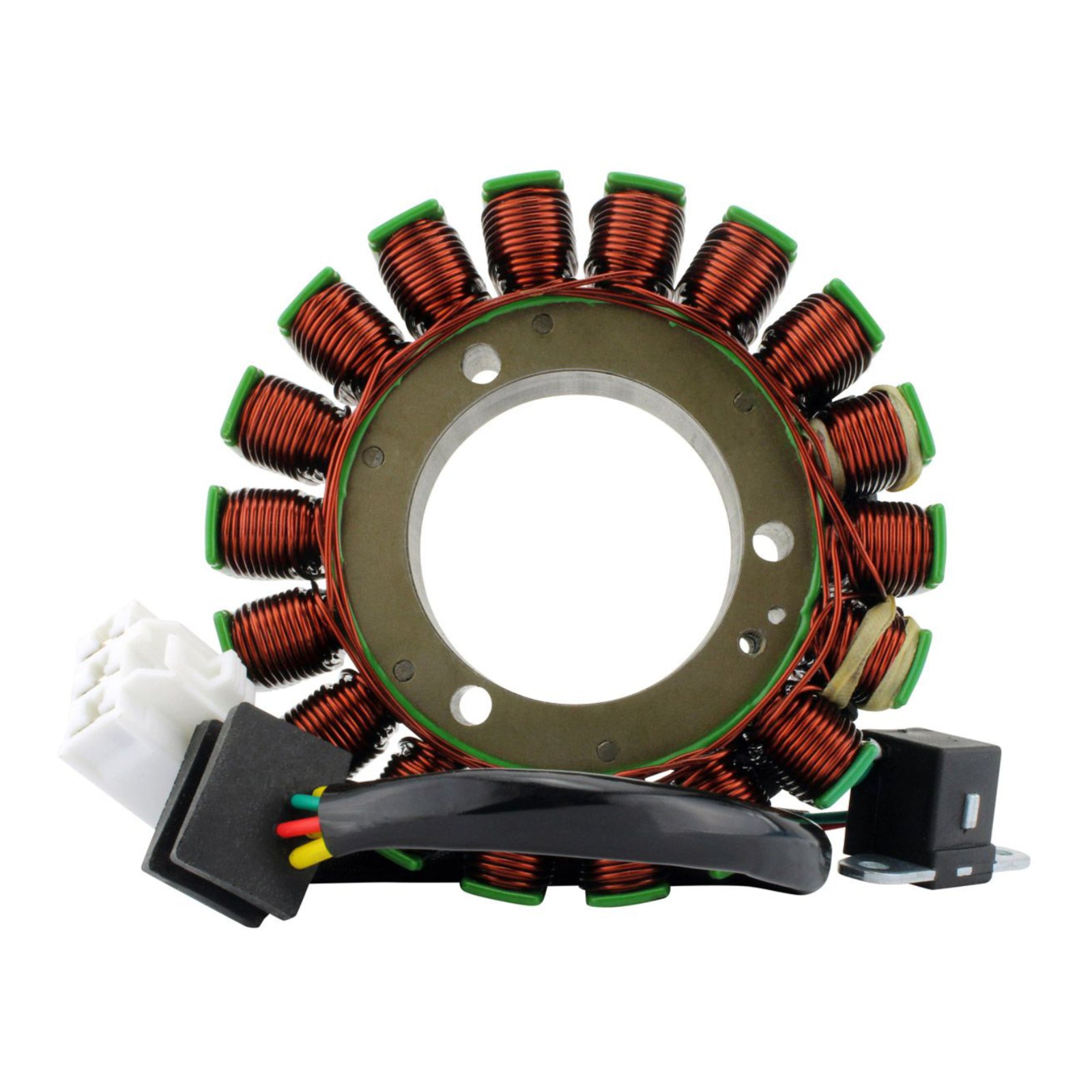

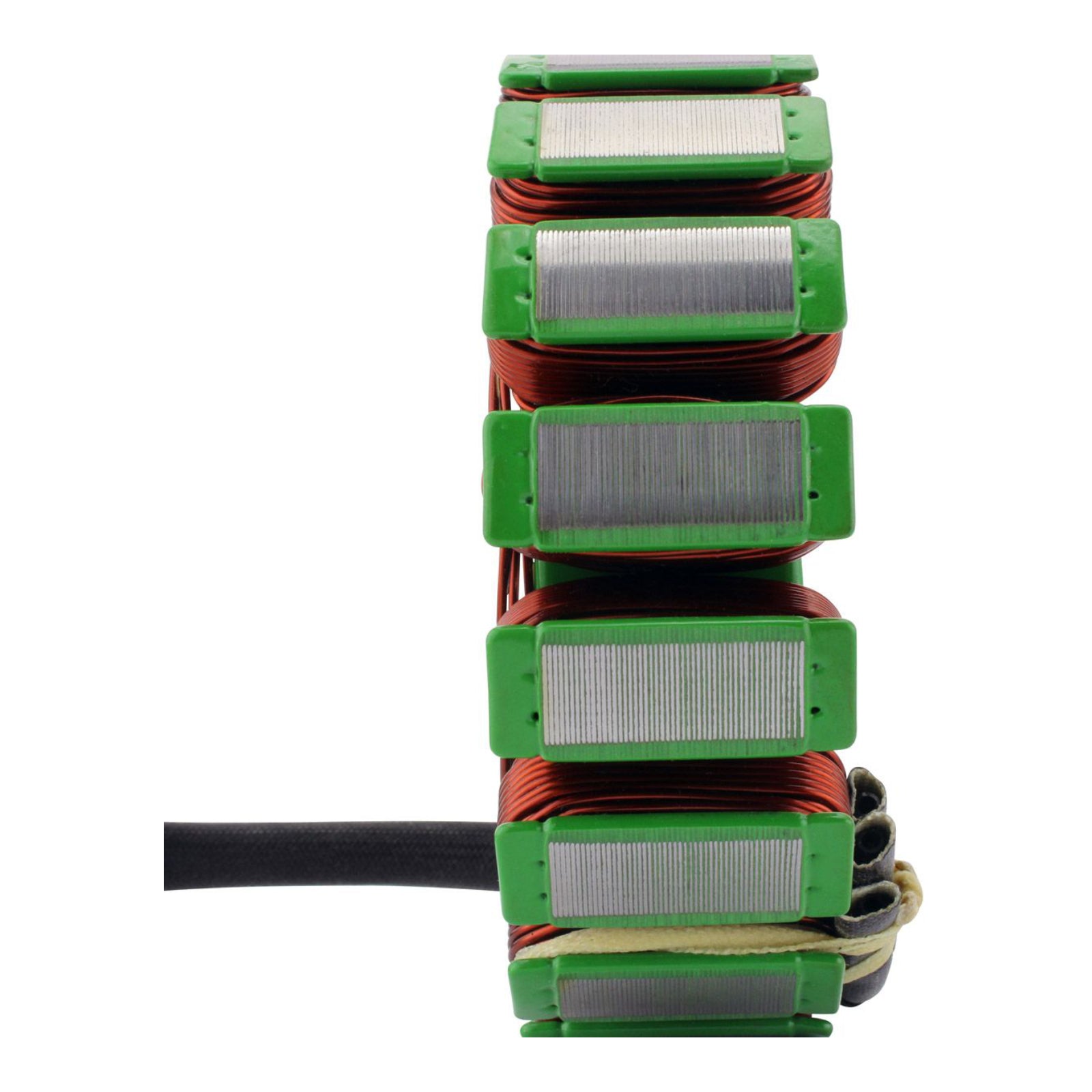

Plug-and-play replacement generator stator from RM Stator.



Dimensions:

  • Interior diameter: 54mm
  • Exterior diameter: 119mm
  • Thickness: 26mm
  • Length of wires stator to grommet: 170mm
  • Length of wires grommet to plug: 270mm
  • Length of pickup coil's wire to grommet: 150mm



Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Yellow to Yellow = 0.6 ohms +-20%
    • Alternator: Yellow to ground = O.L
    • Pickup: Green to Red = 192 ohms +-20%



Details:

    < li>Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

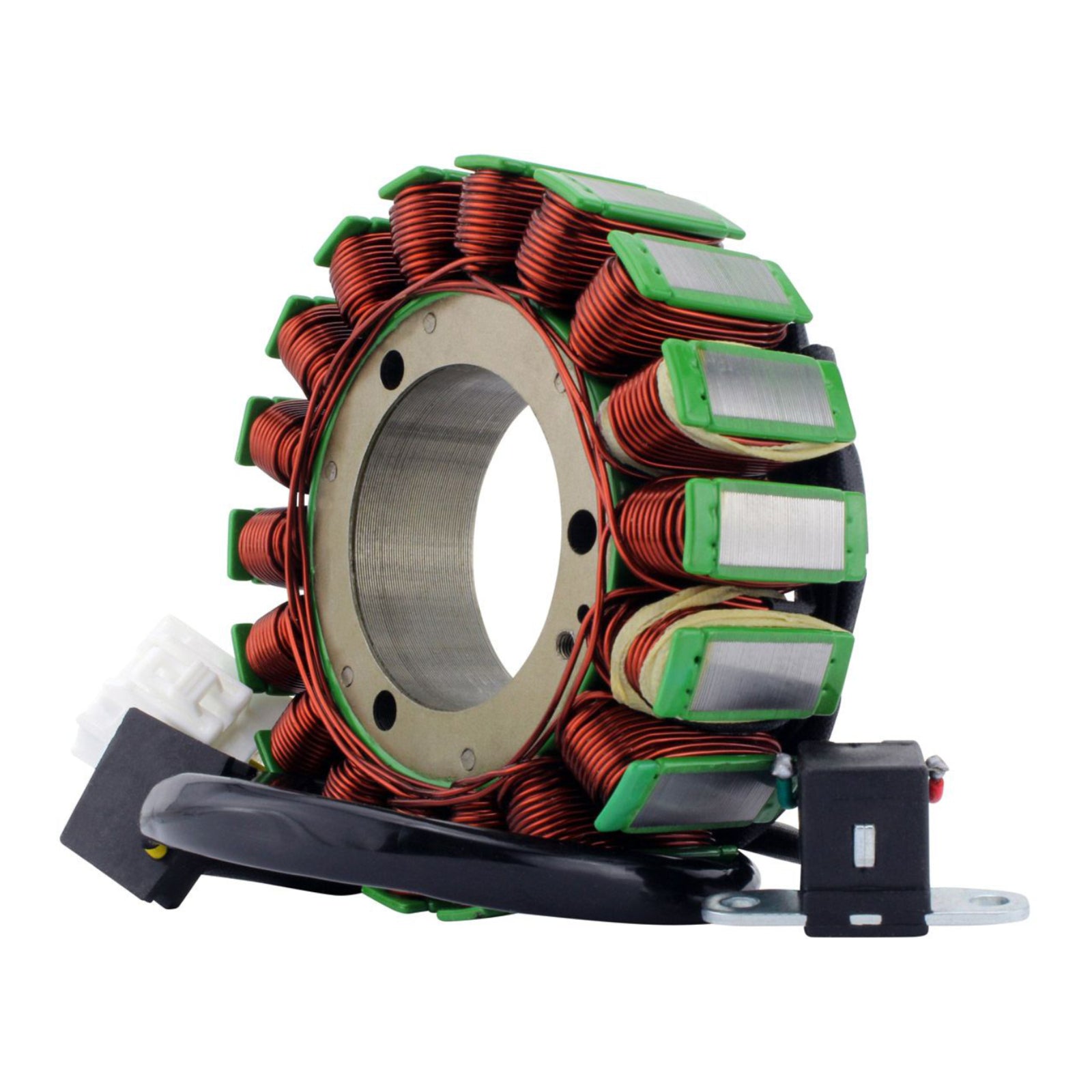

  • Pick up pulsar coil included

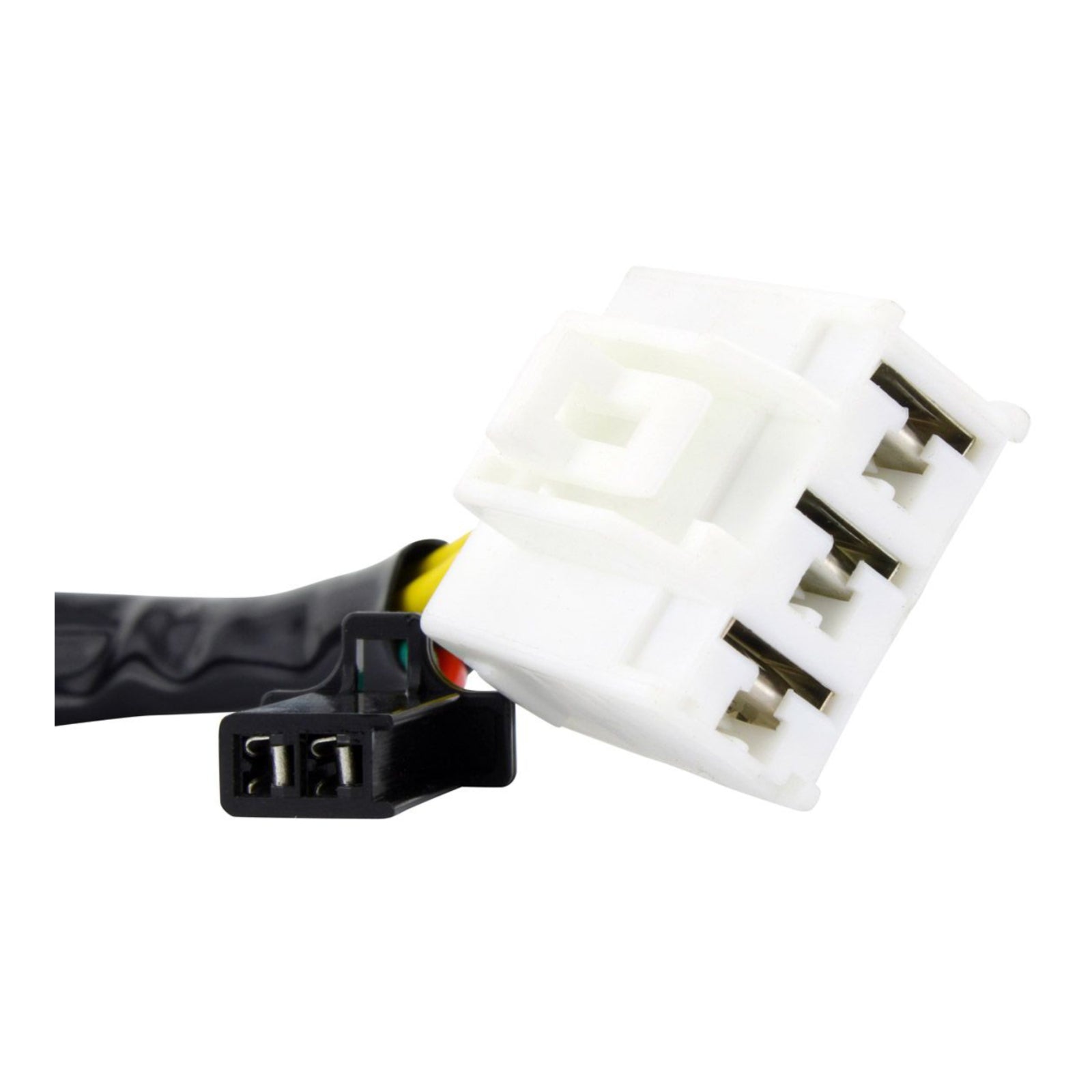

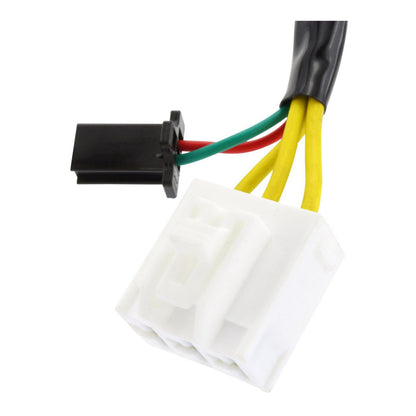

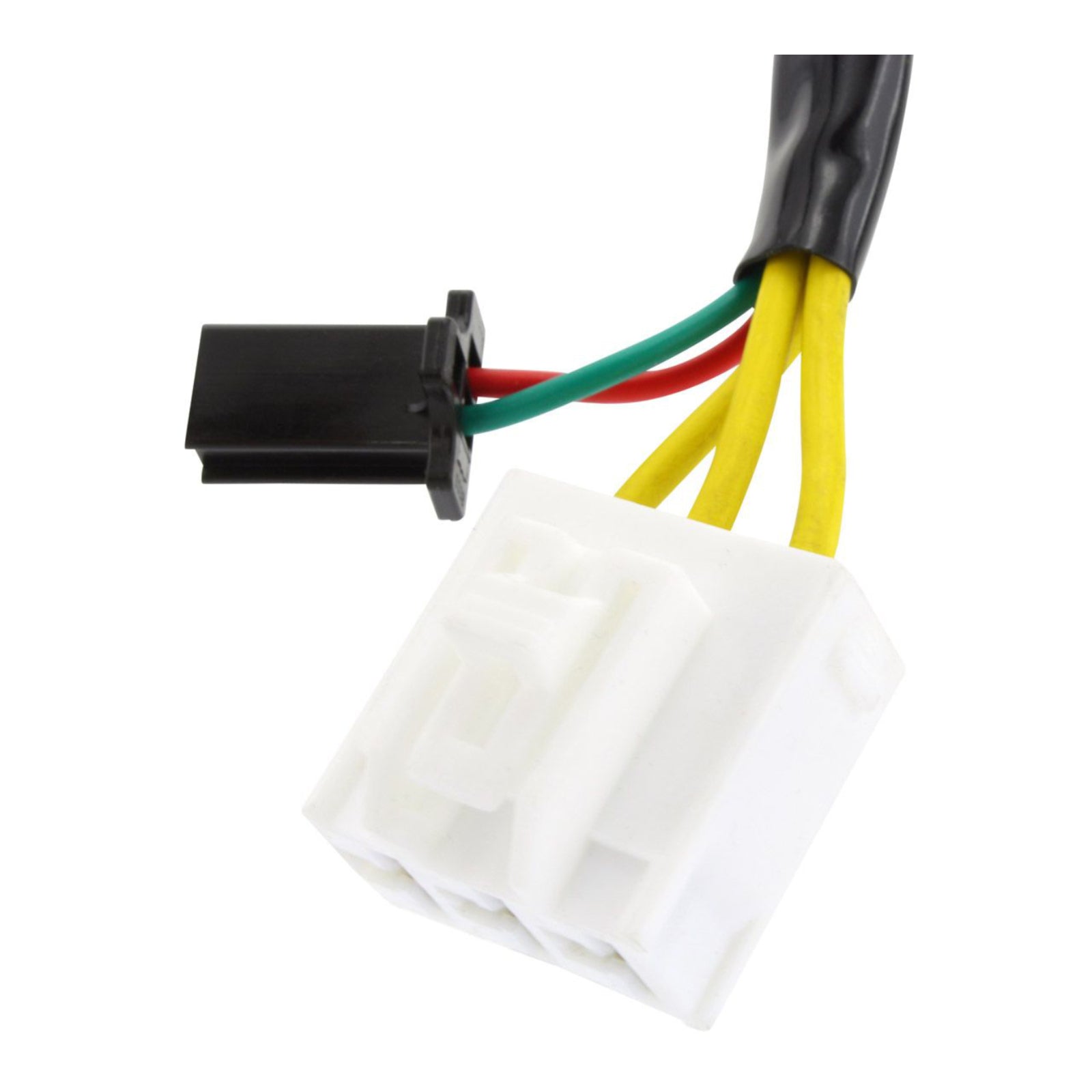

  • Connectors included

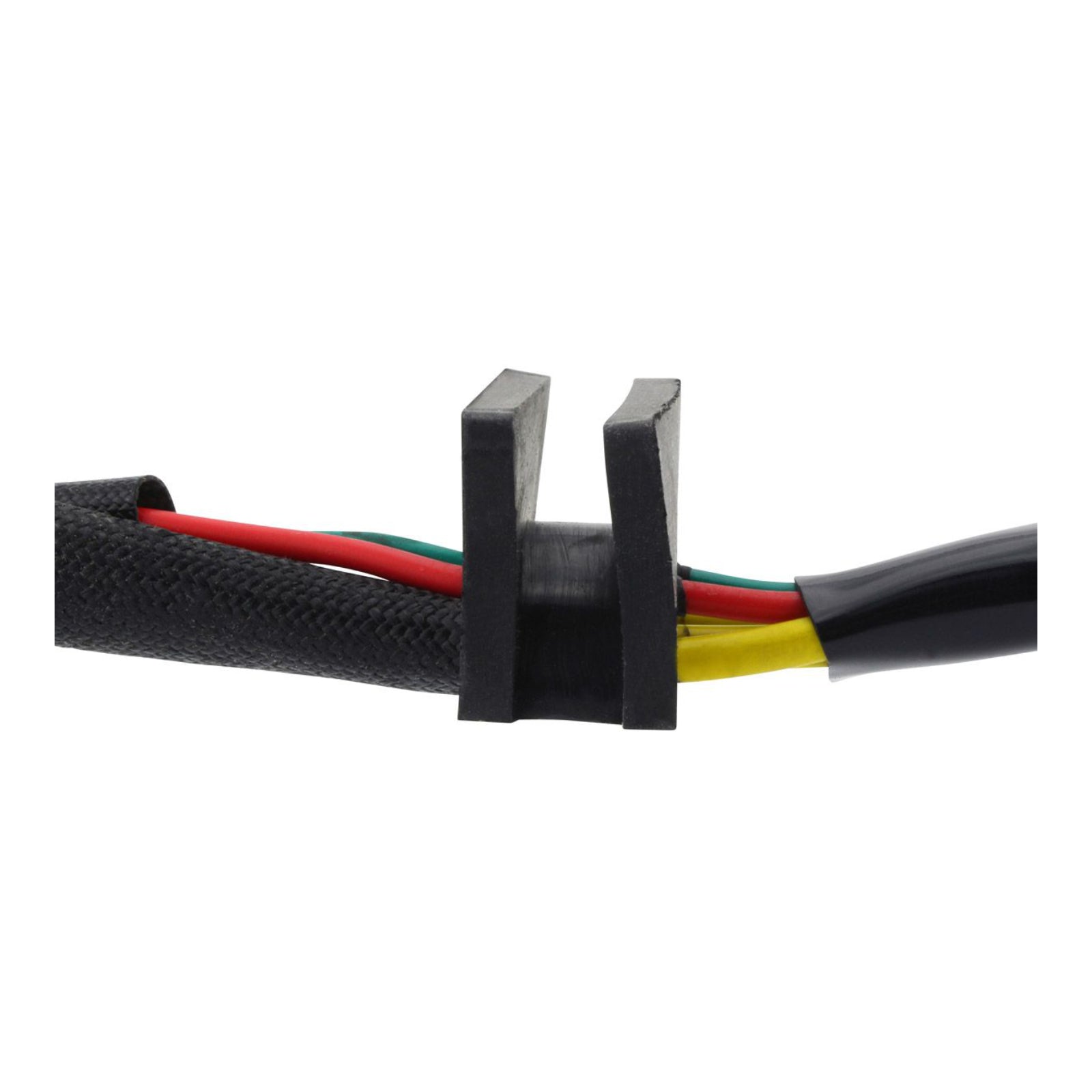

  • Rubber grommet included
  • All products shipped are tested
