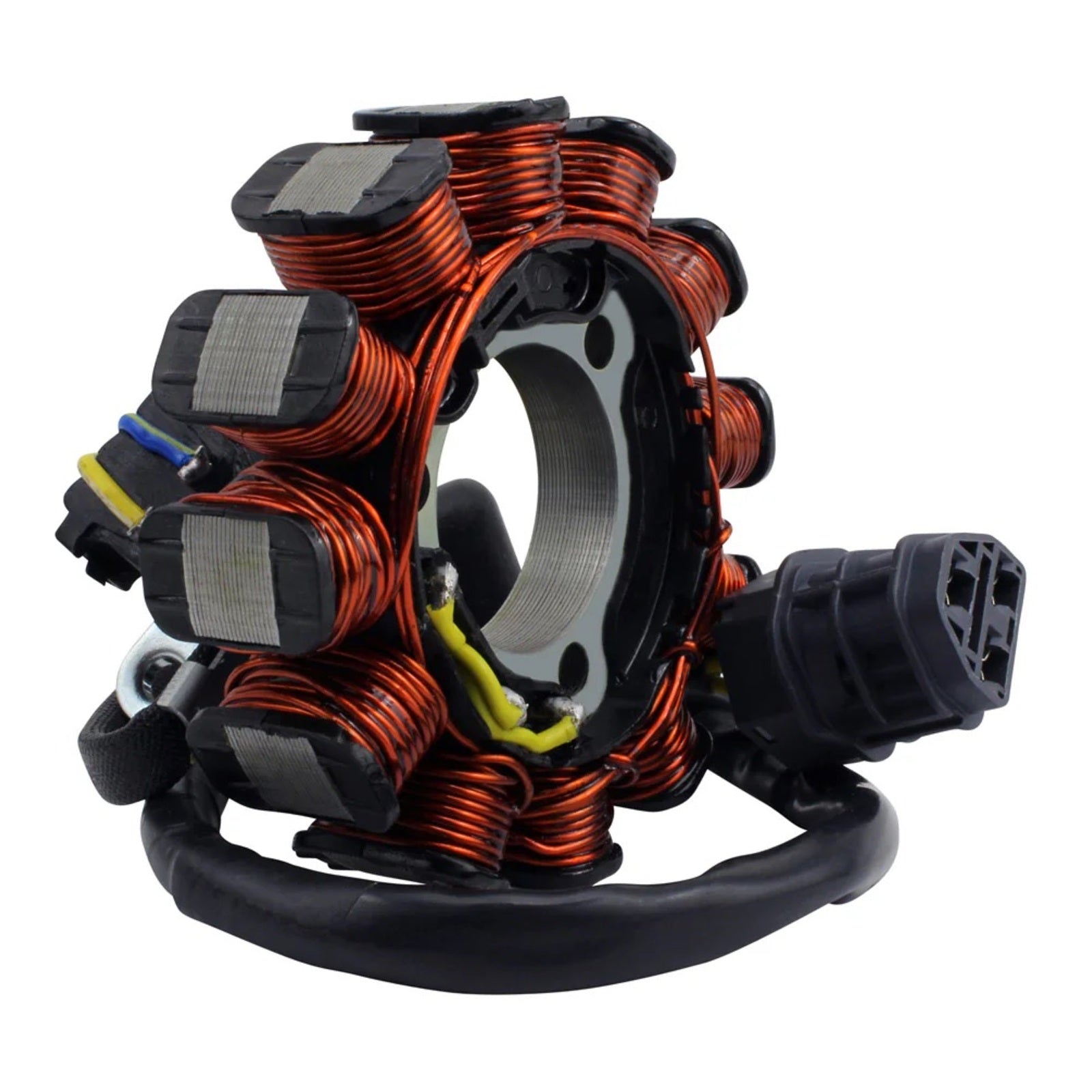

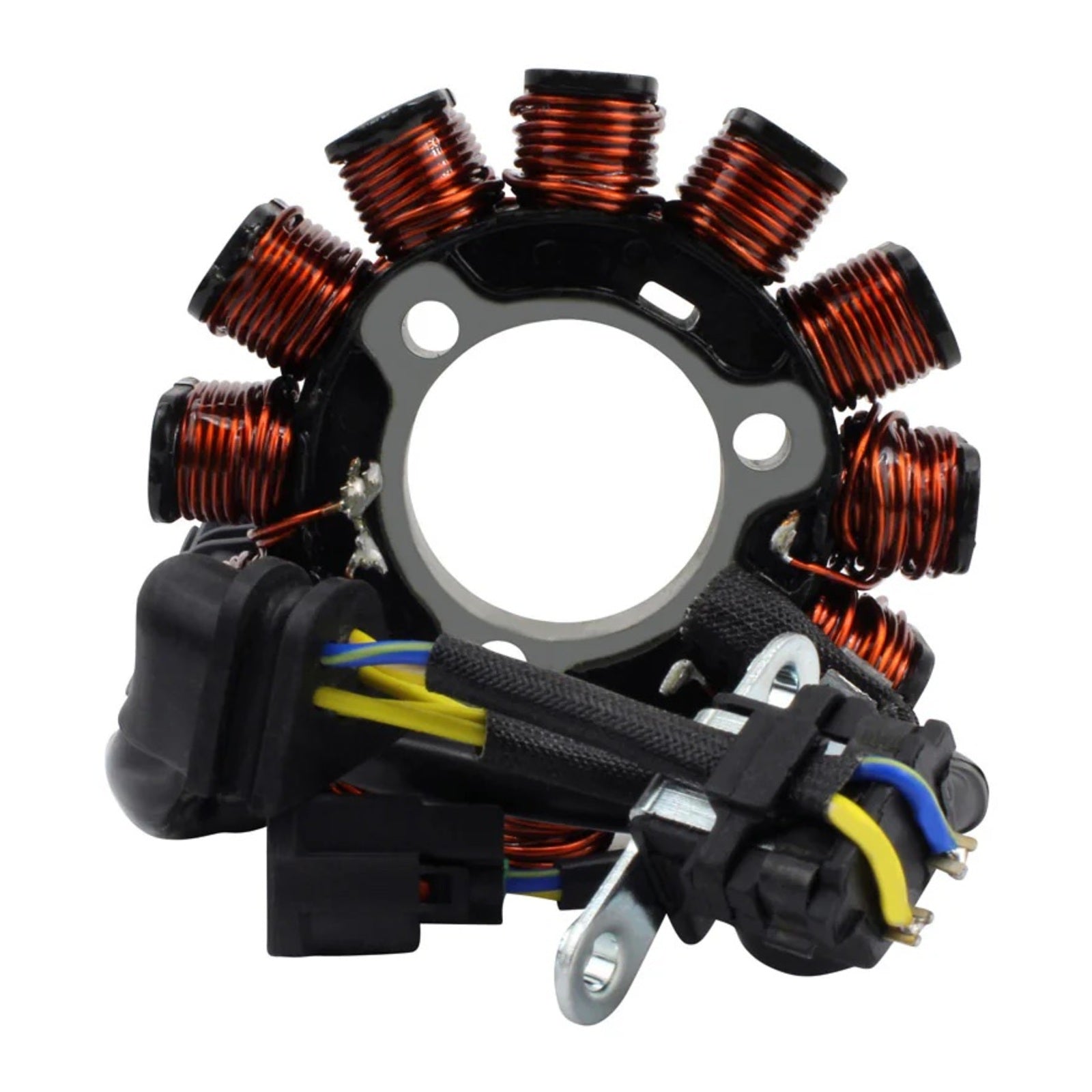

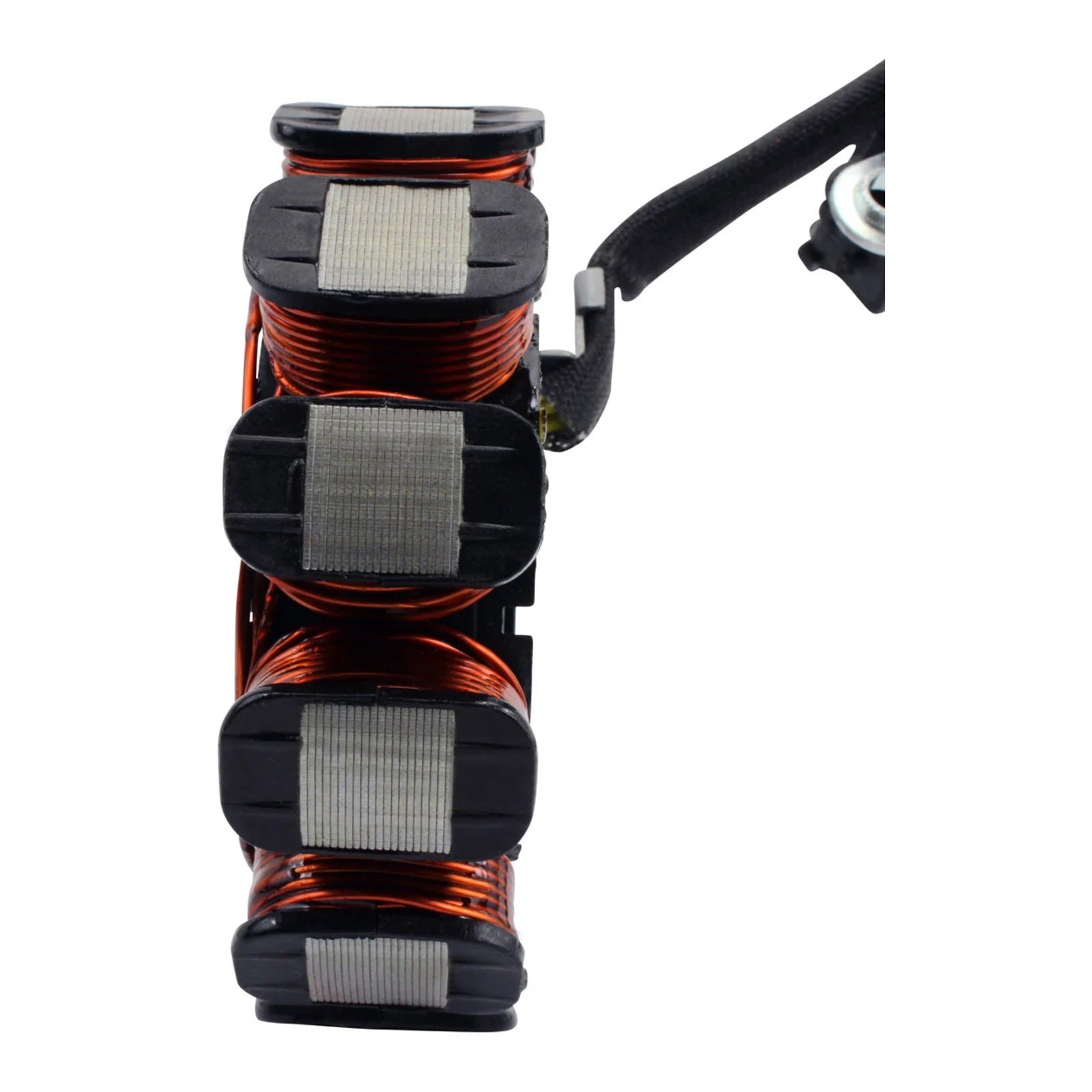

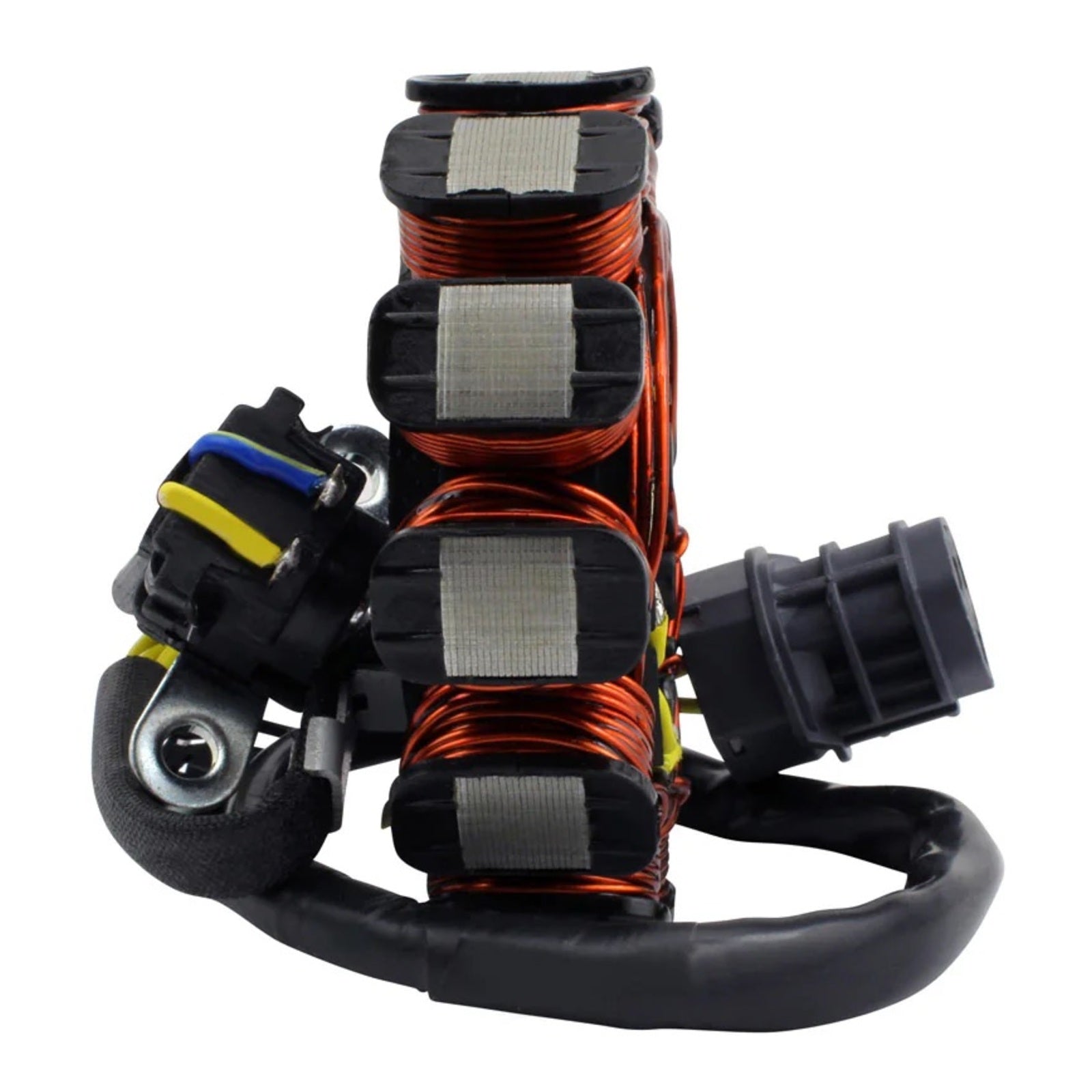

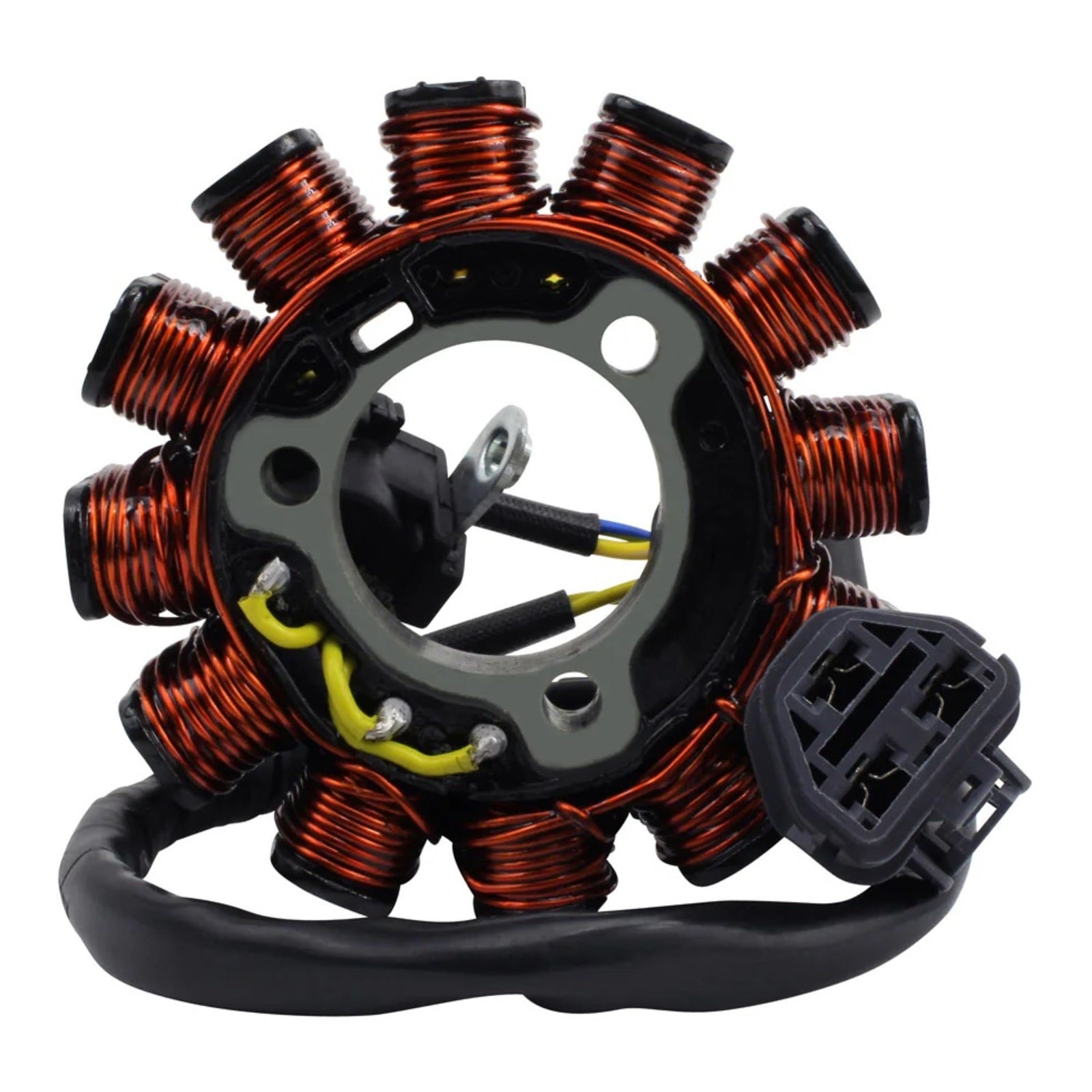

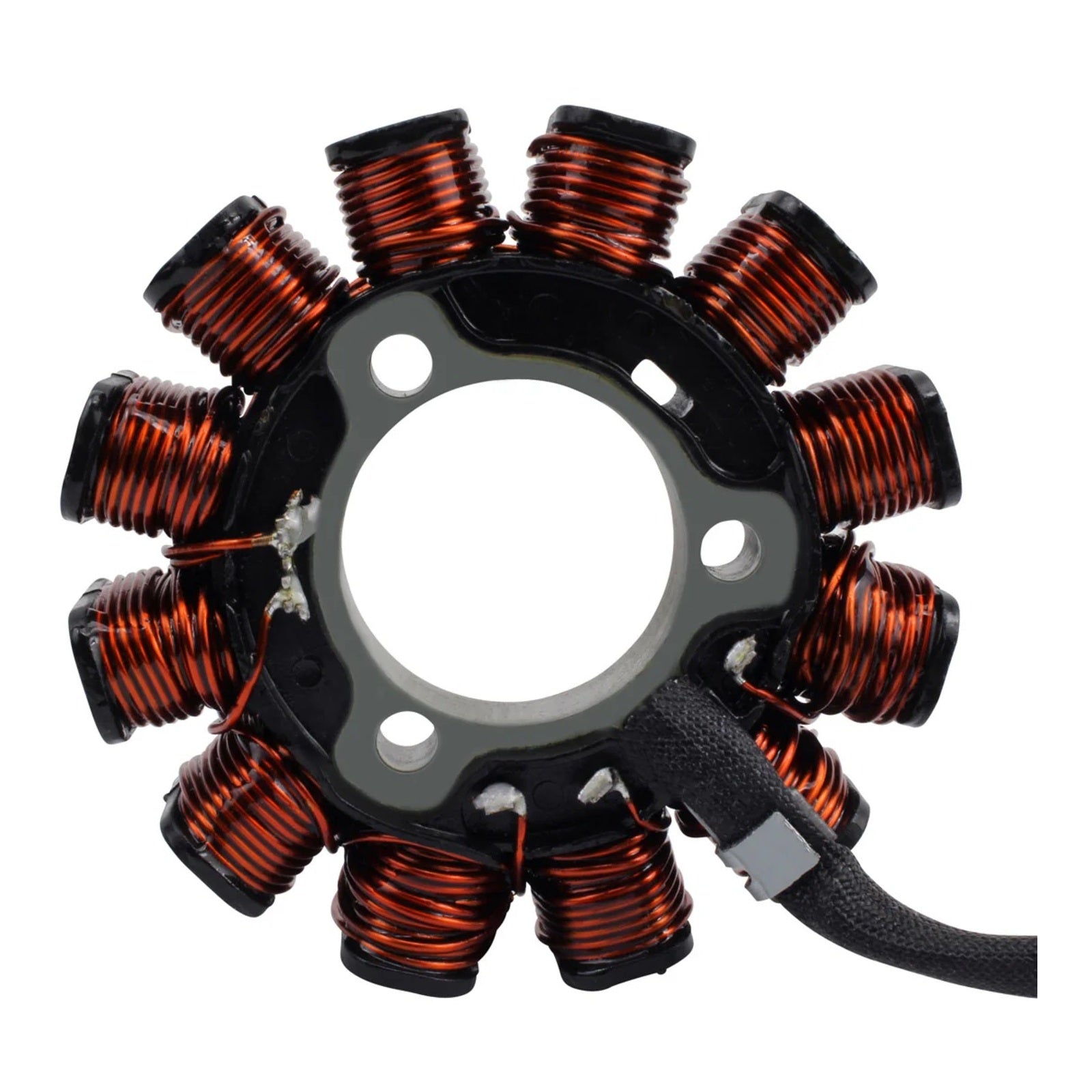

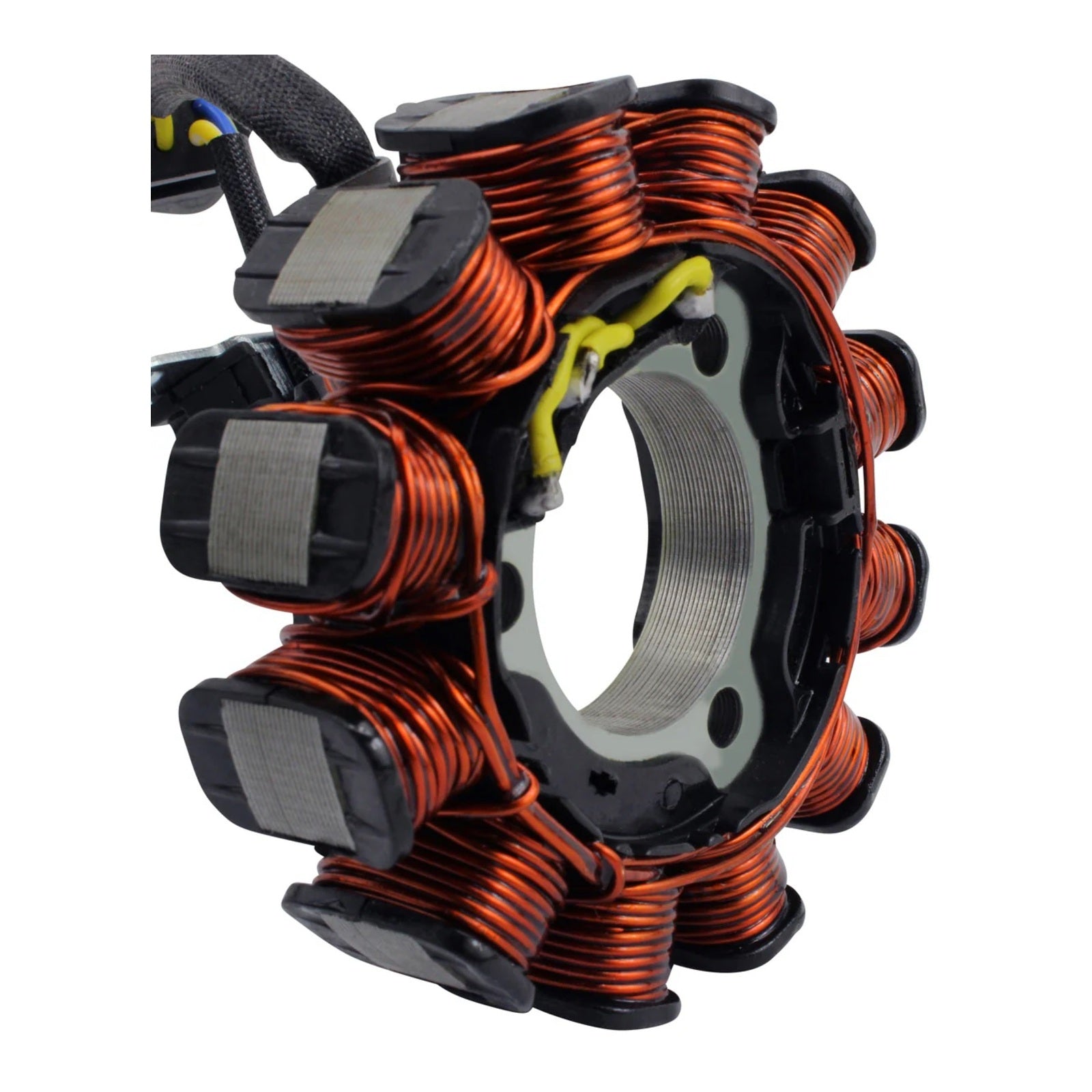

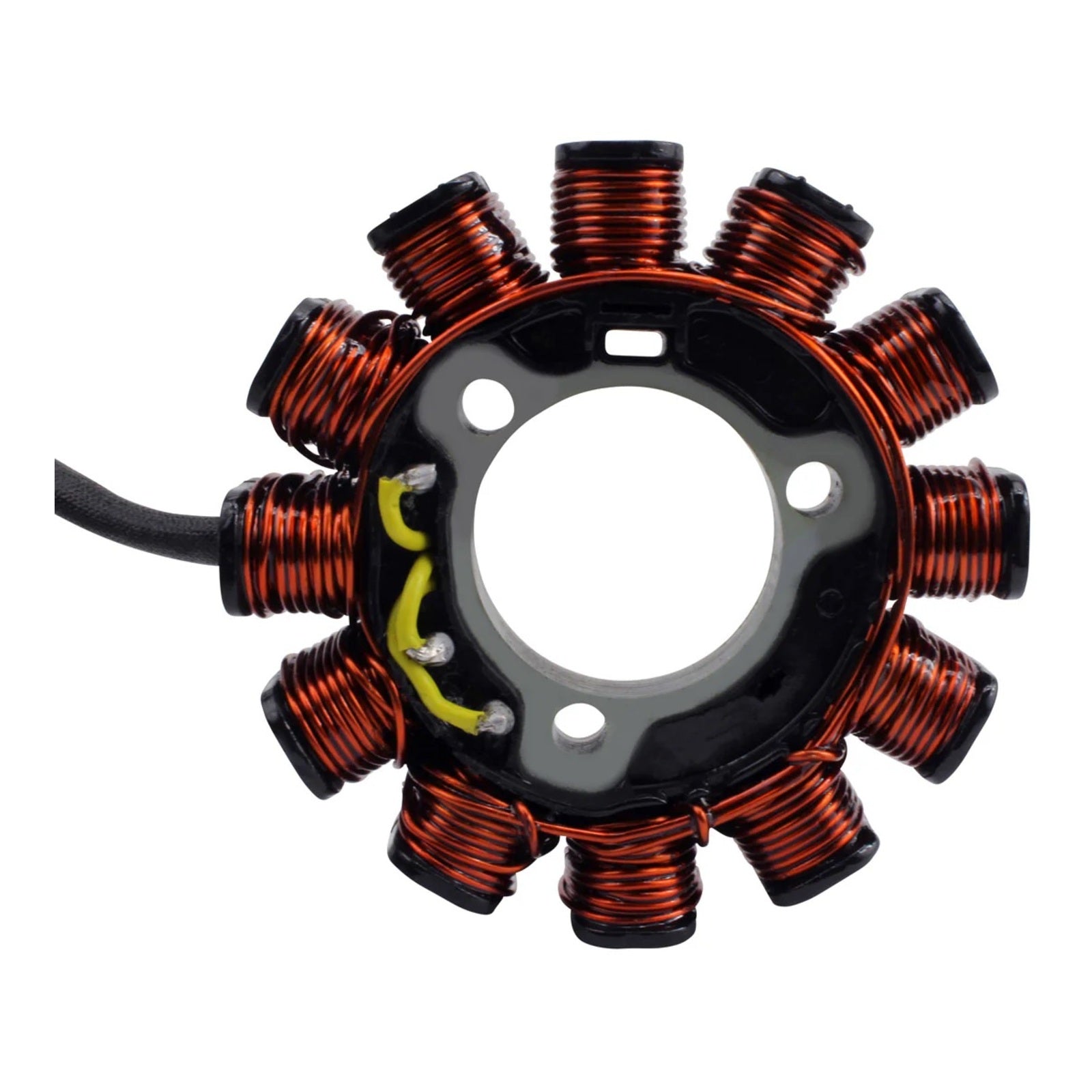

High Output Stator 200W Honda CRF450 X/L/RL (RMS010-108786)

المخزون منخفض
$344.99
$344.99
الشحن يتم حسابه عند الخروج.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "ينتهي في {{ end_date }}"

Question about this product?

We're happy to help.

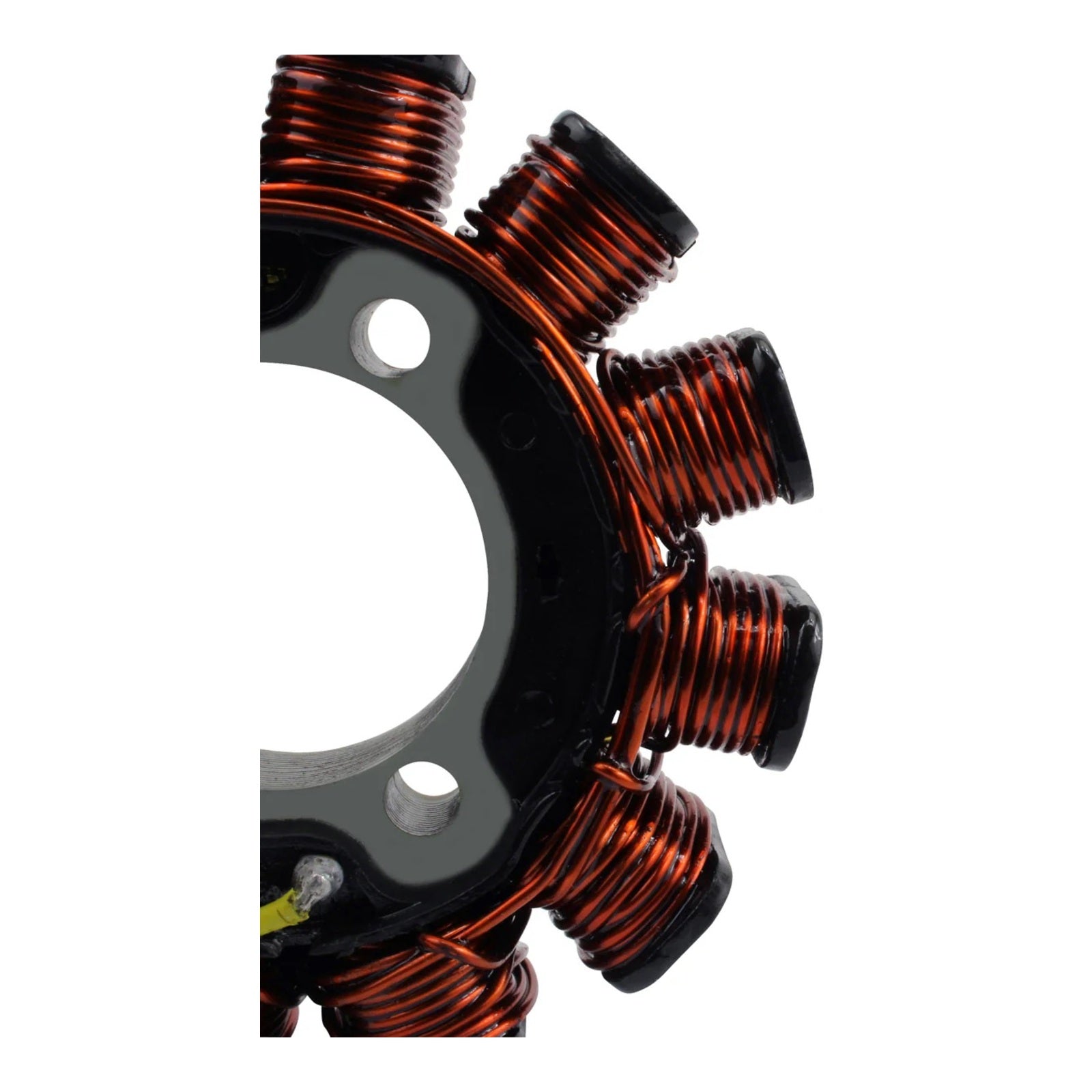

Brand new aftermarket high-output stator (200W).

Features:

  • Direct replacement for your original unit.
  • Plug-and-play, direct fit for easy installation.
  • Highest grade lamination materials.
  • Premium copper windings resistant to 200°C.

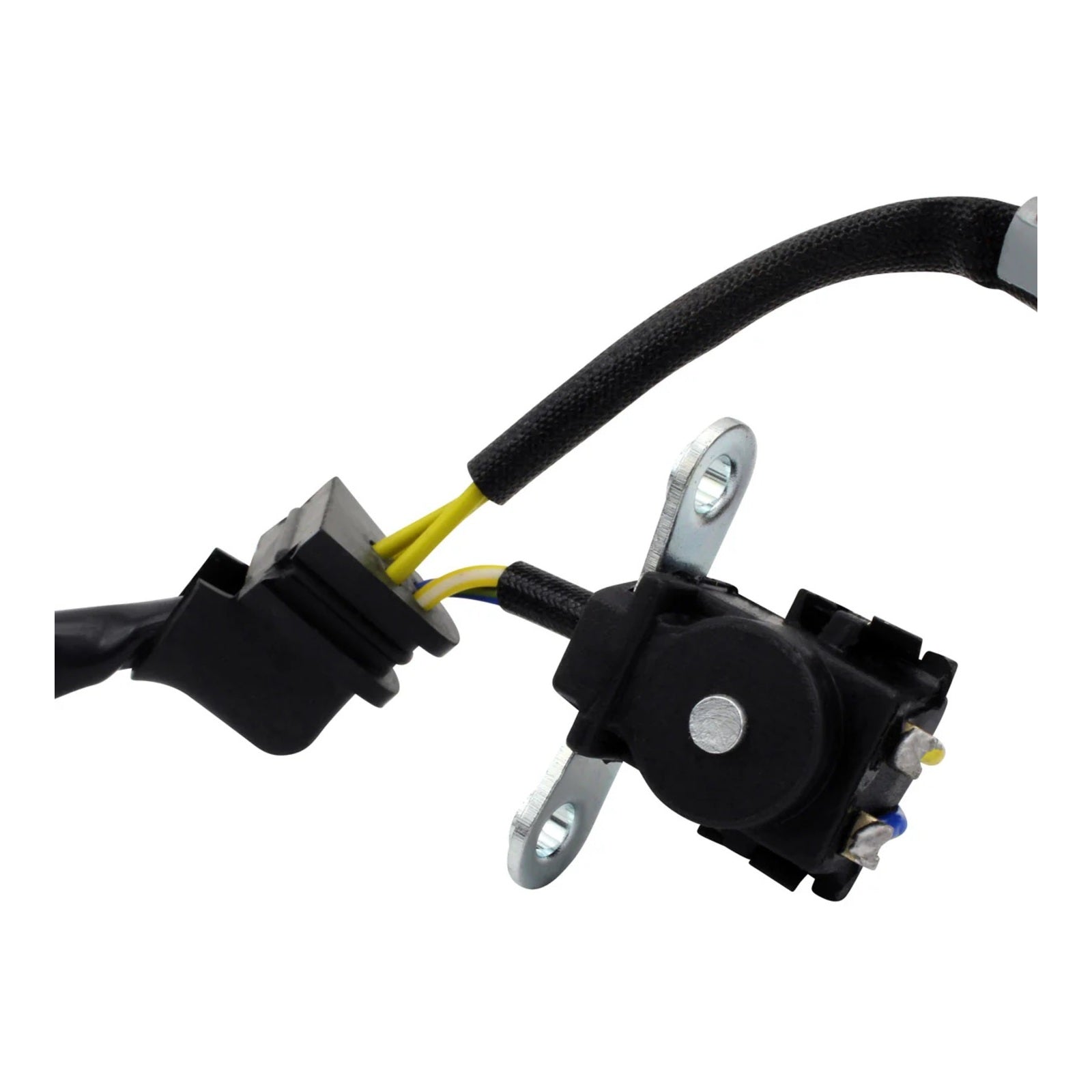

  • Pickup pulsar coil included.

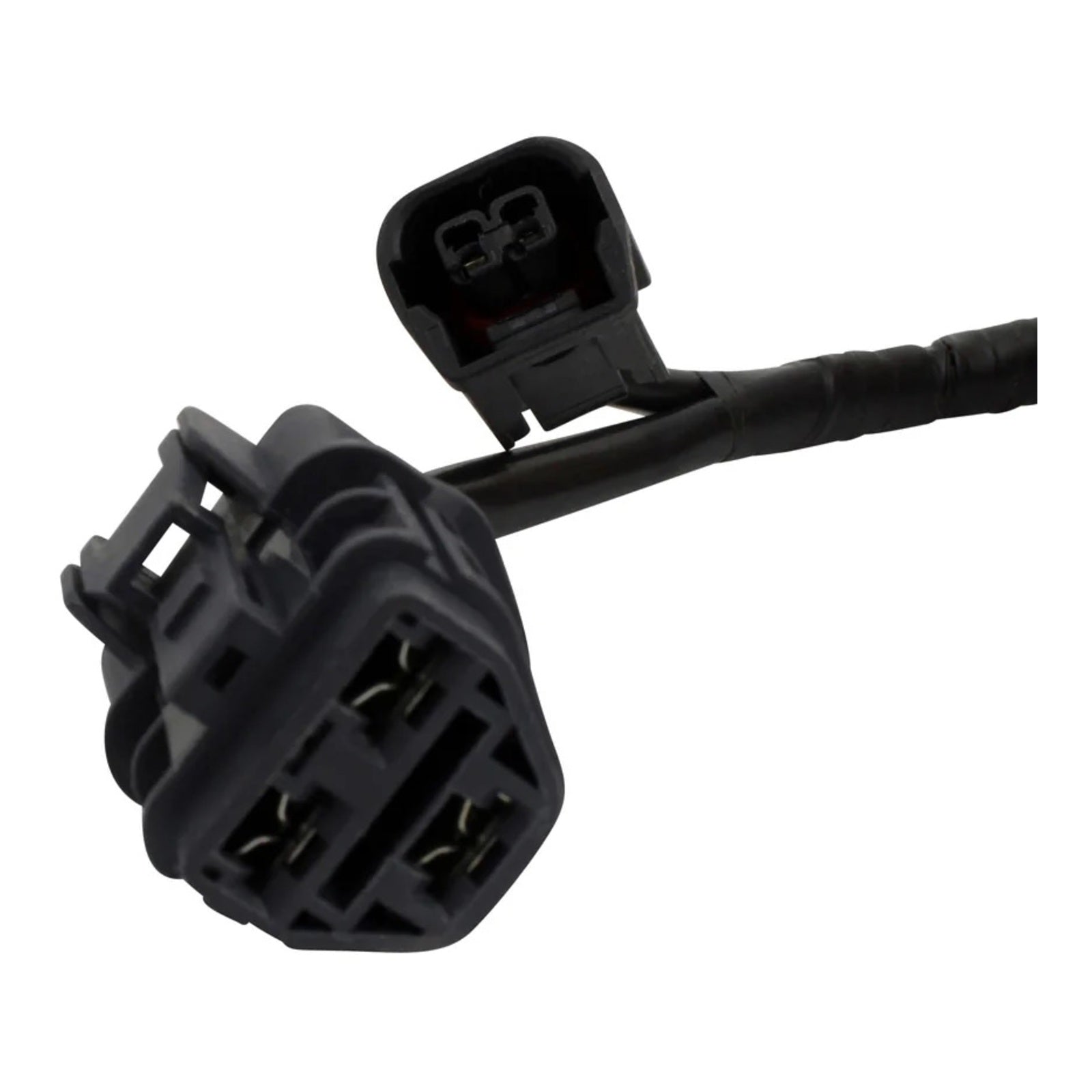

  • Connectors included.

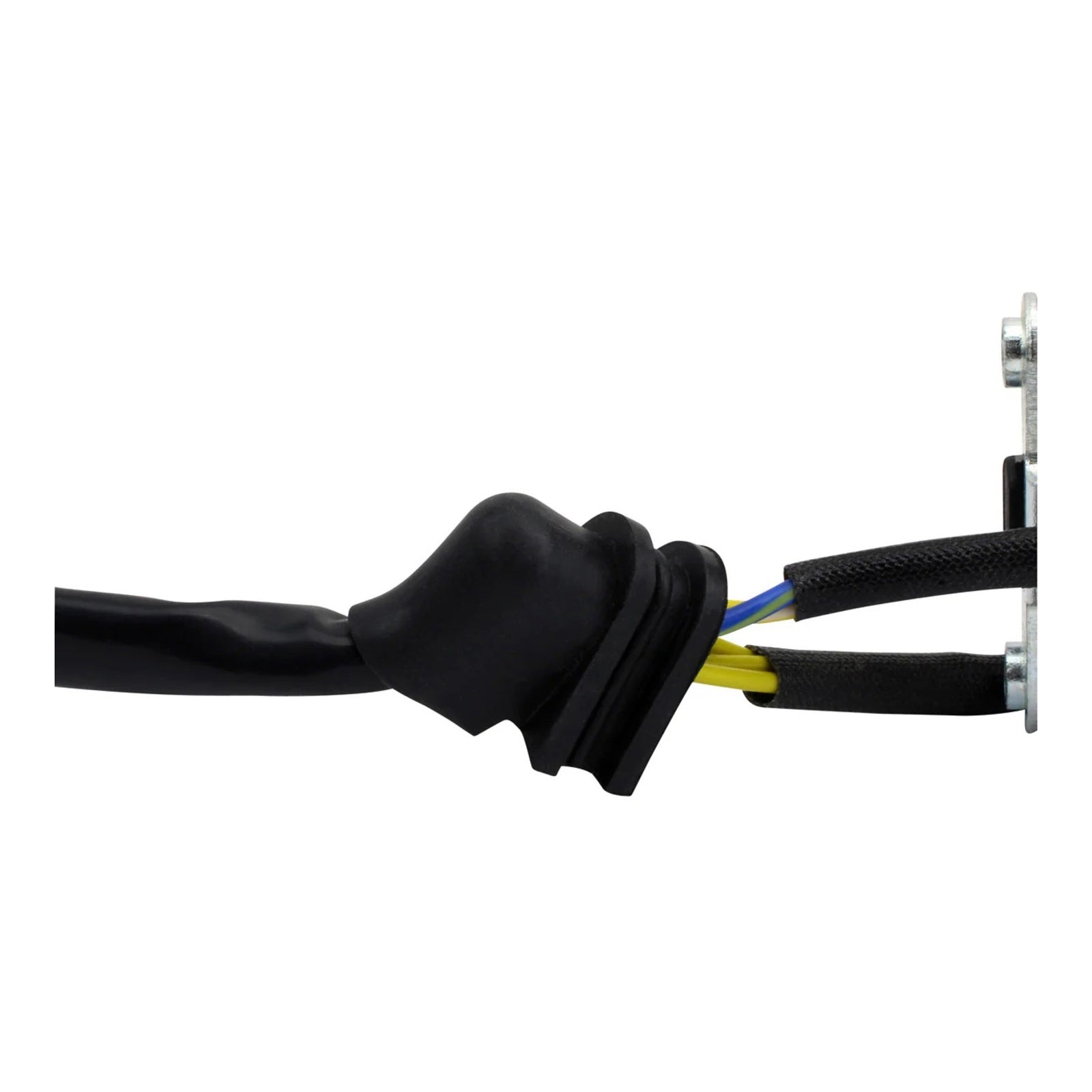

  • Rubber grommet included.
  • All units are tested before shipping.

Specifications:

Dimensions

  • Interior diameter: 35 mm
  • Exterior diameter: 89 mm
  • Thickness: 12 mm
  • Stator wires (to grommet): 80 mm
  • Grommet to plug wire lengths: 250 mm and 310 mm
  • Pickup coil wire (to grommet): 45 mm

Other Specifications

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 12

Electrical Specifications

  • Alternator resistance (Yellow to Yellow): 1.3 Ω ±20%
  • Alternator resistance (Yellow to ground): O.L (open line)
  • Pickup resistance (Blue/Yellow to White/Yellow): 240 Ω ±20%
