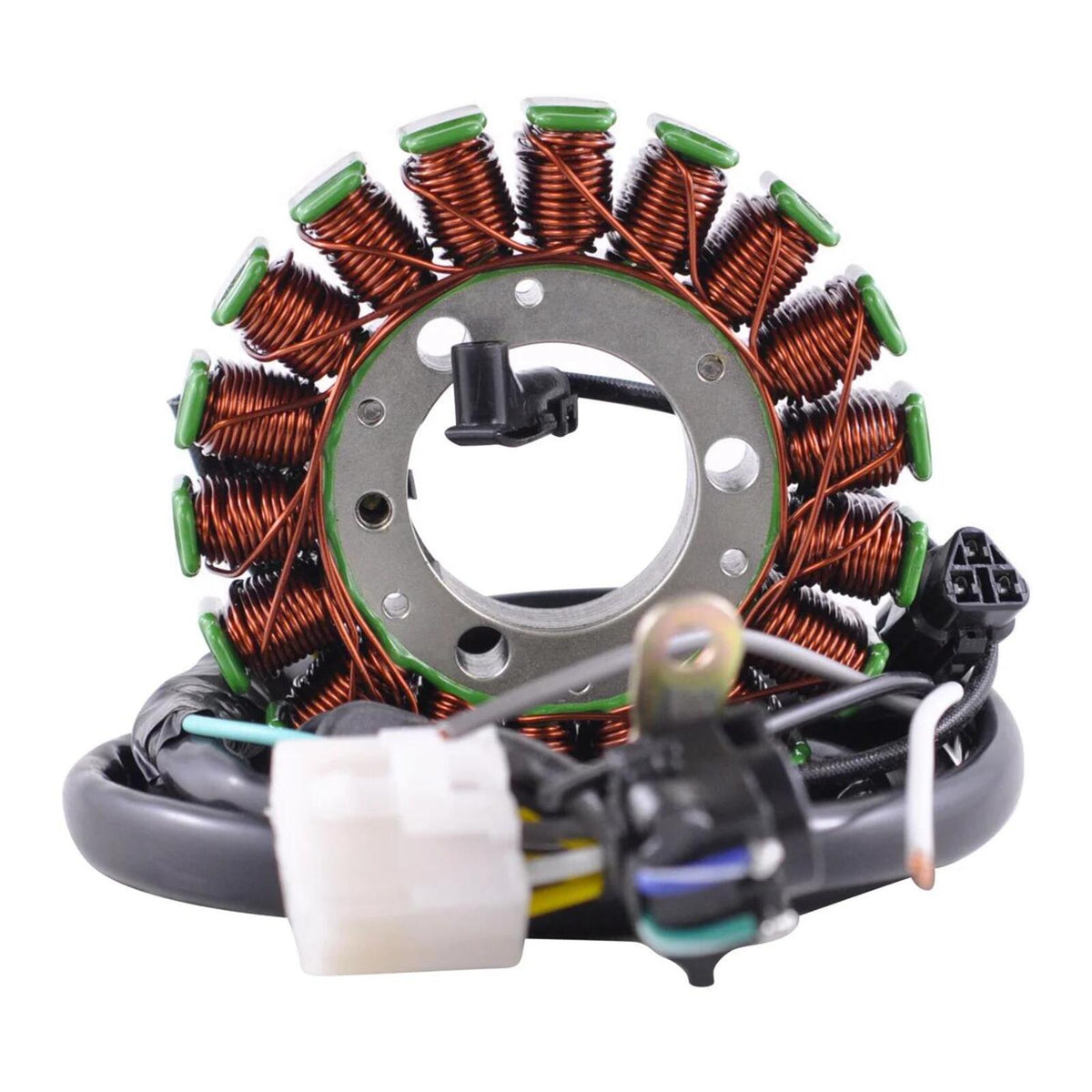

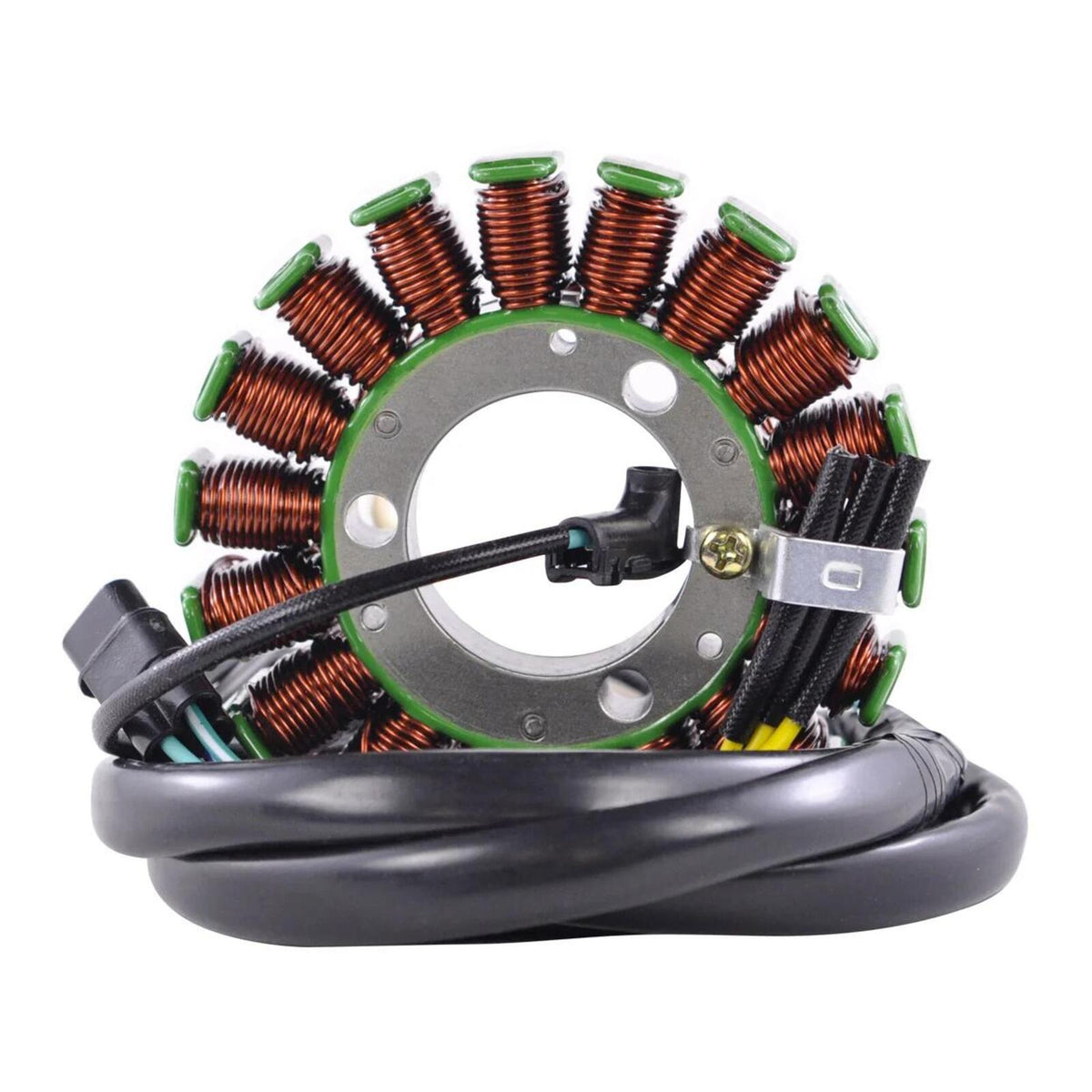

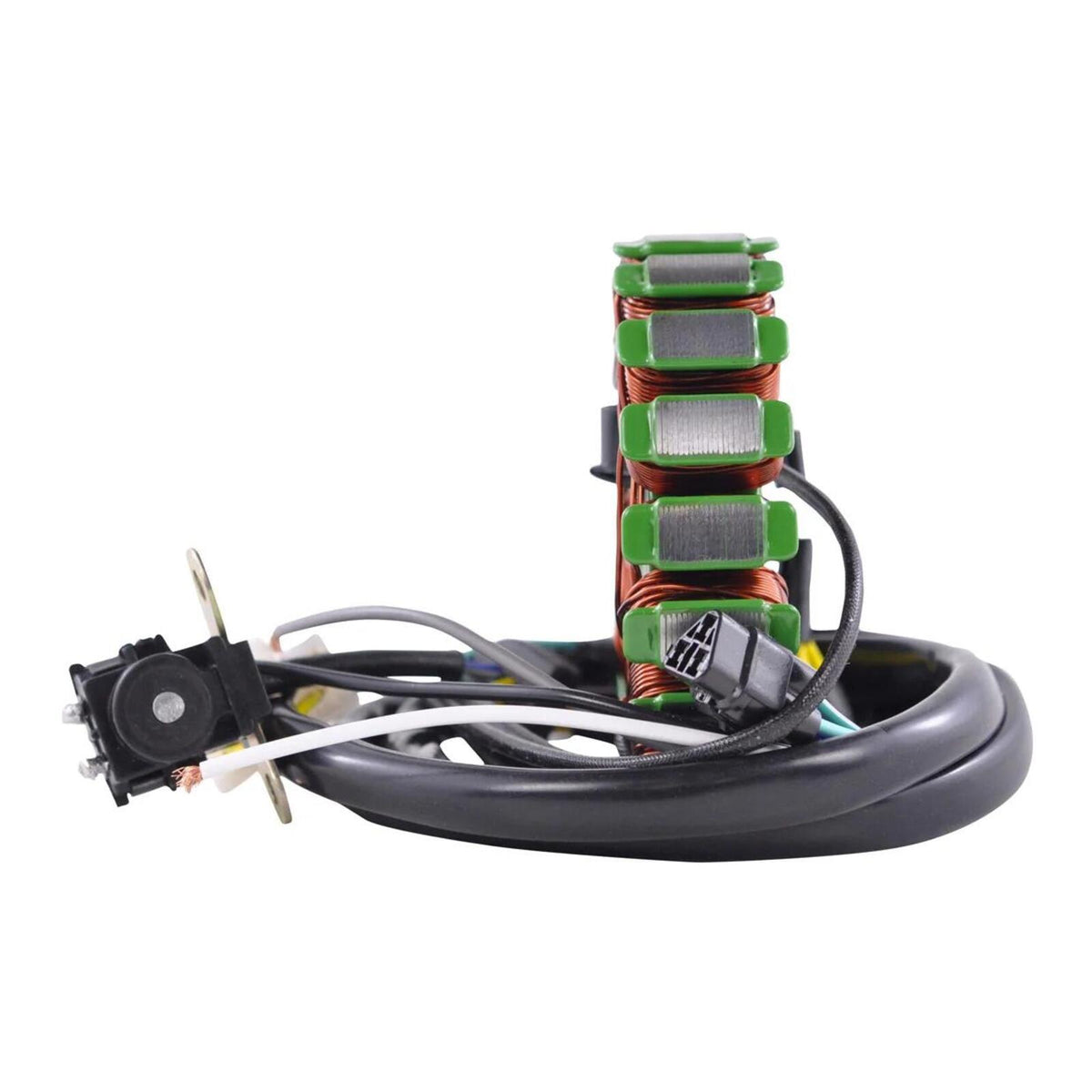

Stator - Kawasaki KLX250S / KLX250SF '09-'14 (RMS010-101405)

Low stock
$329.99
$329.99
Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

Brand new aftermarket stator.

Features:

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials.
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included.

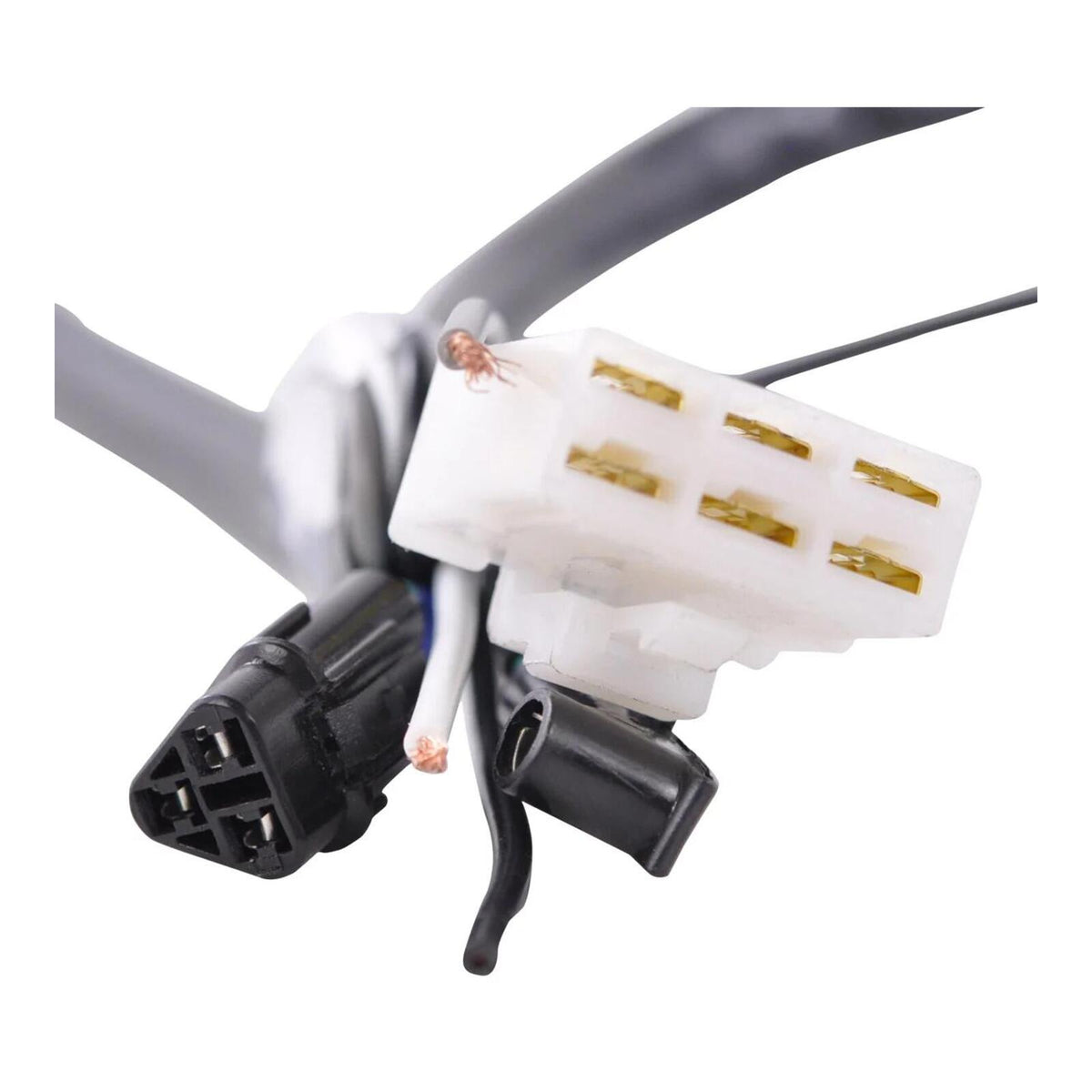

  • Connector included.
  • Rubber grommet included.
  • All products shipped are tested.

Specifications:

  • Interior diameter: 35 mm
  • Exterior diameter: 93 mm
  • Thickness: 18 mm
  • Stator wire length to grommet 1: 155 mm
  • Wire length from grommet to plug 1: 505 mm
  • Wire length from grommet to plug 2: 810 mm
  • Wire length from grommet to pickup coil plug: 72 mm
  • Pickup coil wire length to grommet: 60 mm
  • 13 wires
  • 4 plugs
  • 13 pins
  • Alternator resistance (Yellow to Yellow): 0.9 Ω ±20%
  • Pickup coil resistance (Blue/White to Green/White): 244 Ω ±20%
