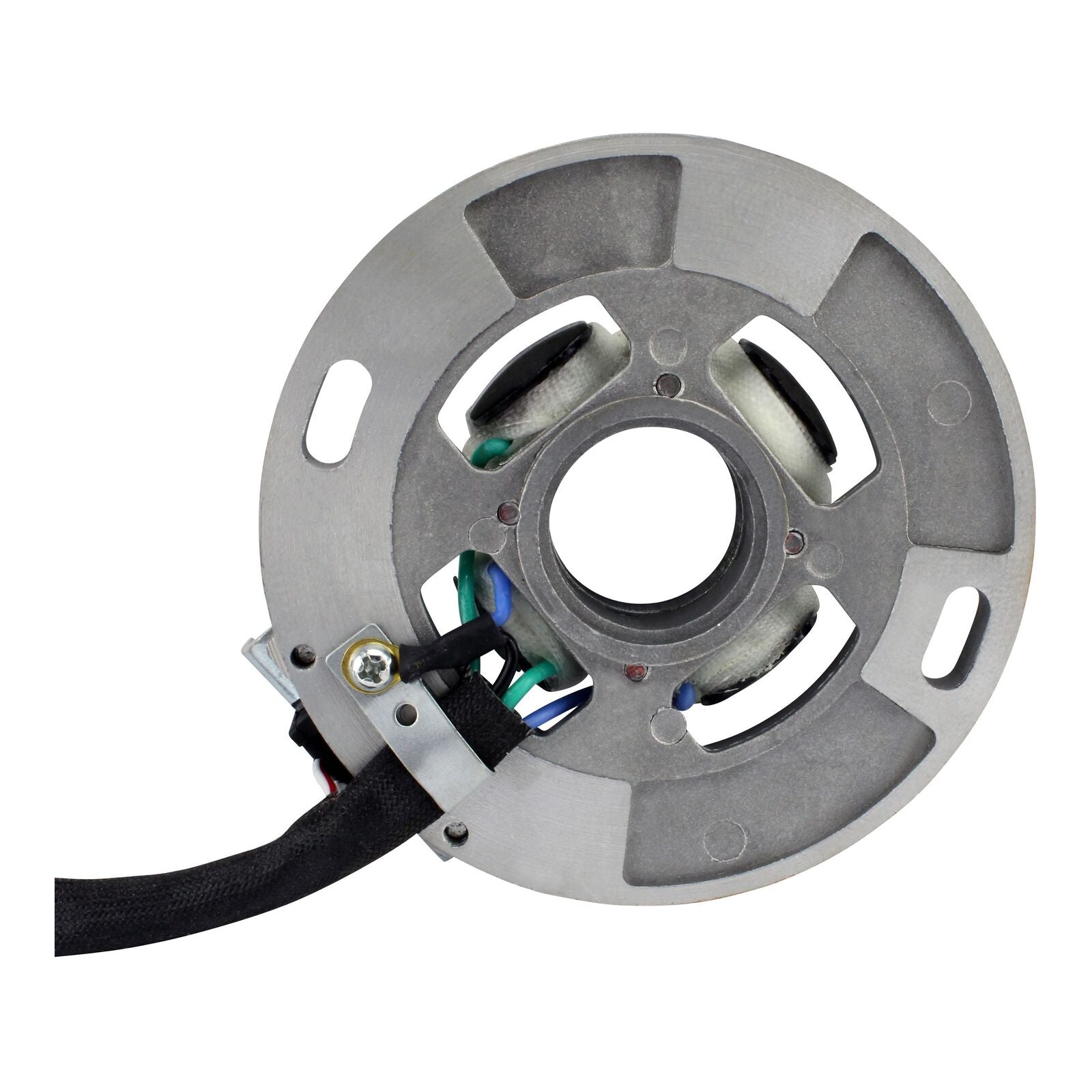

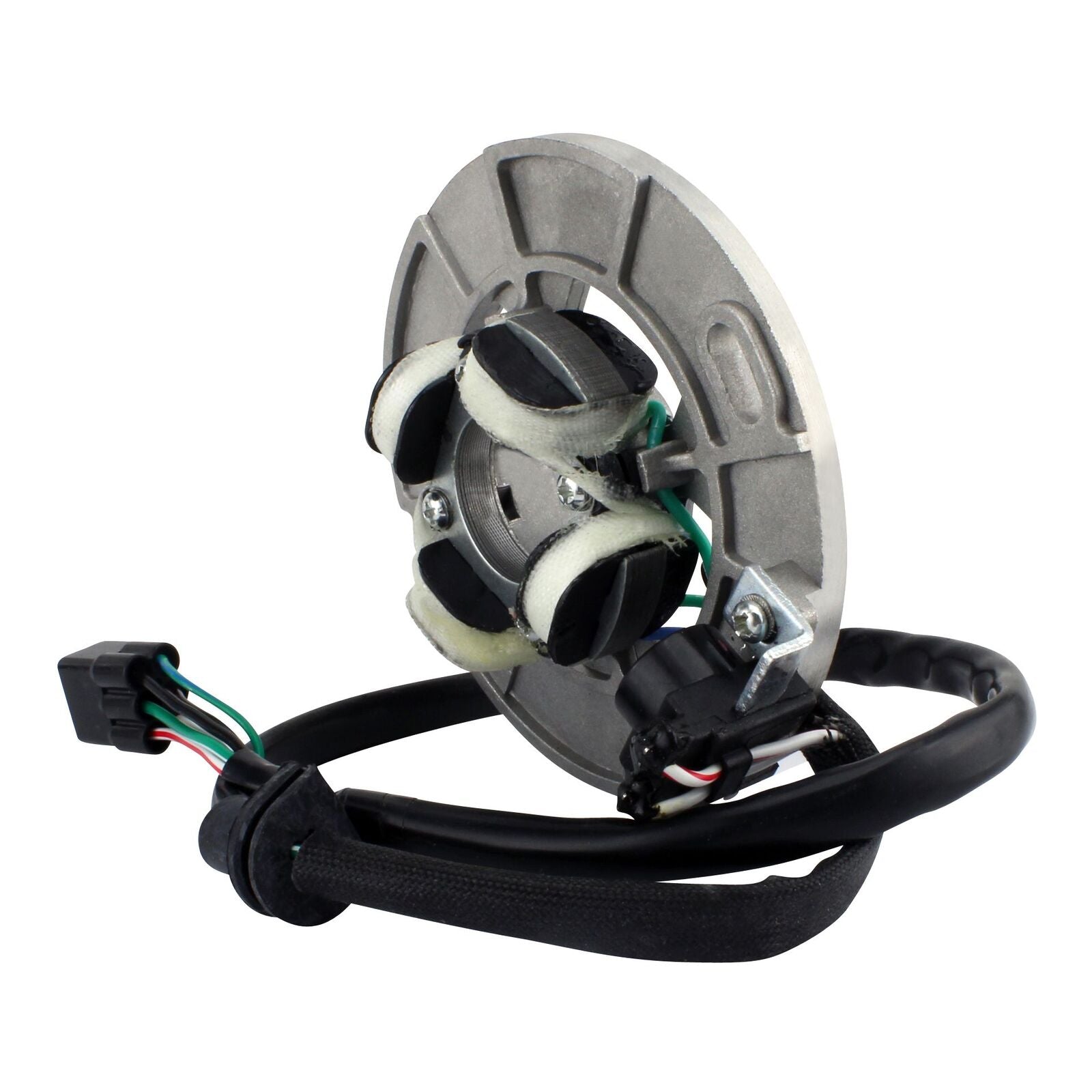

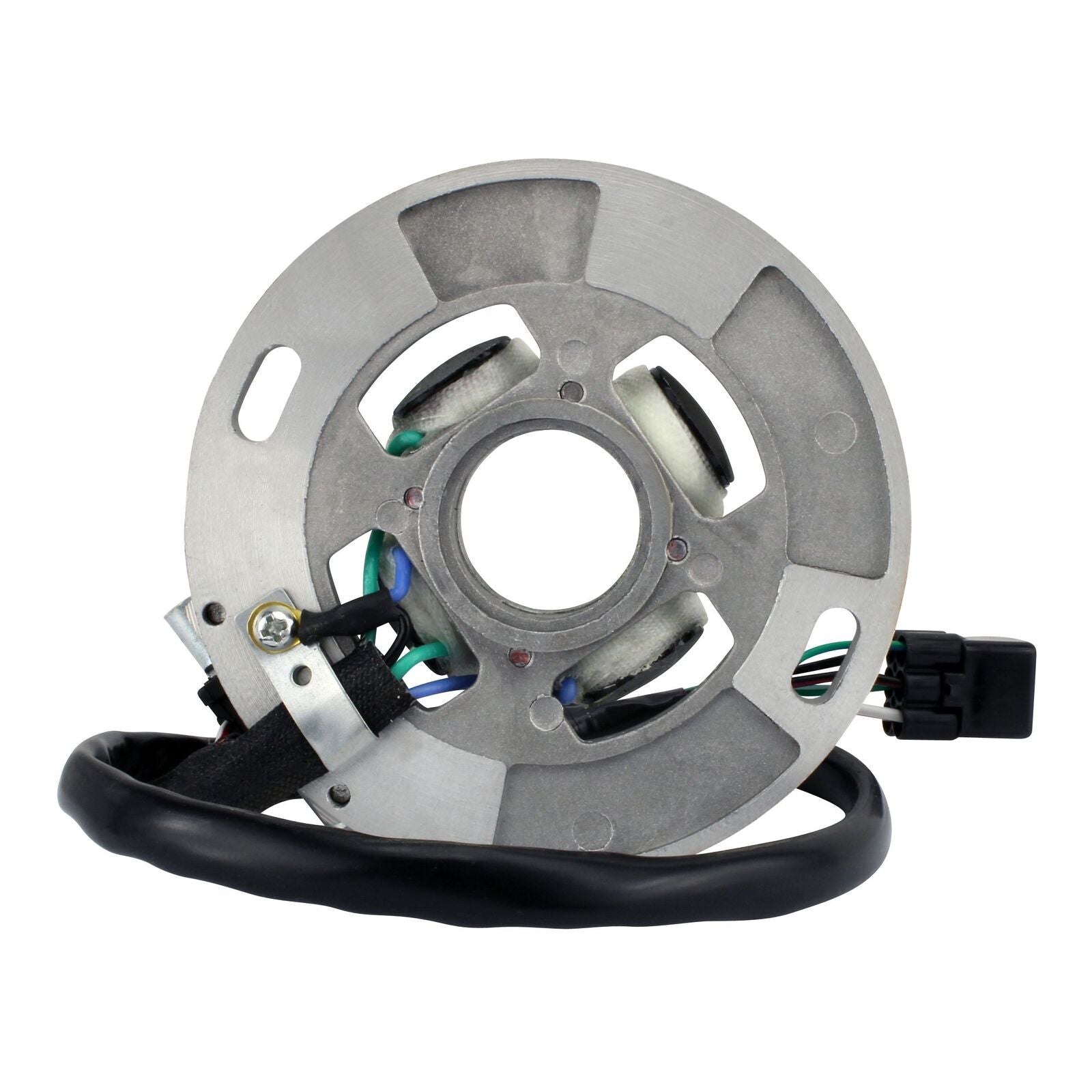

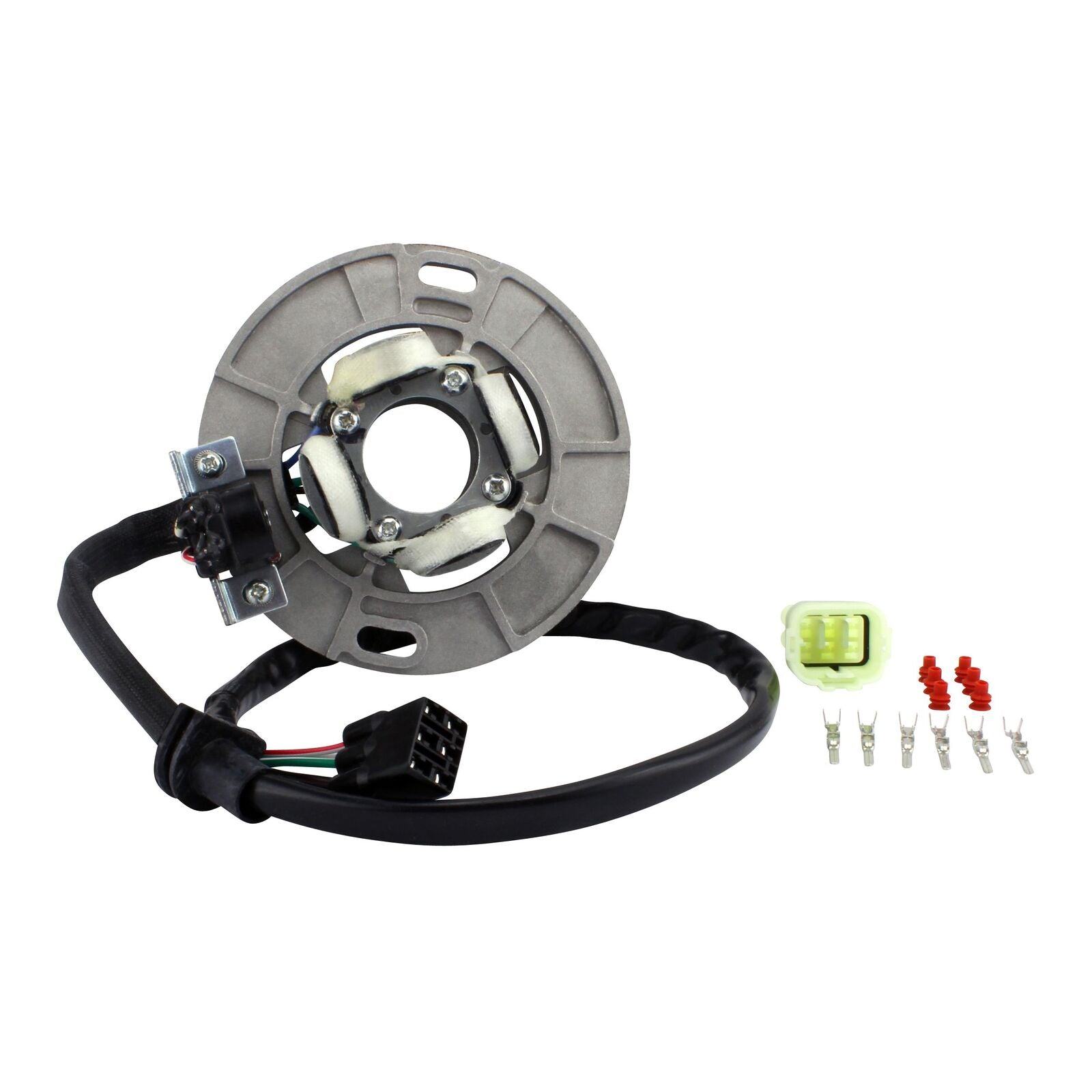

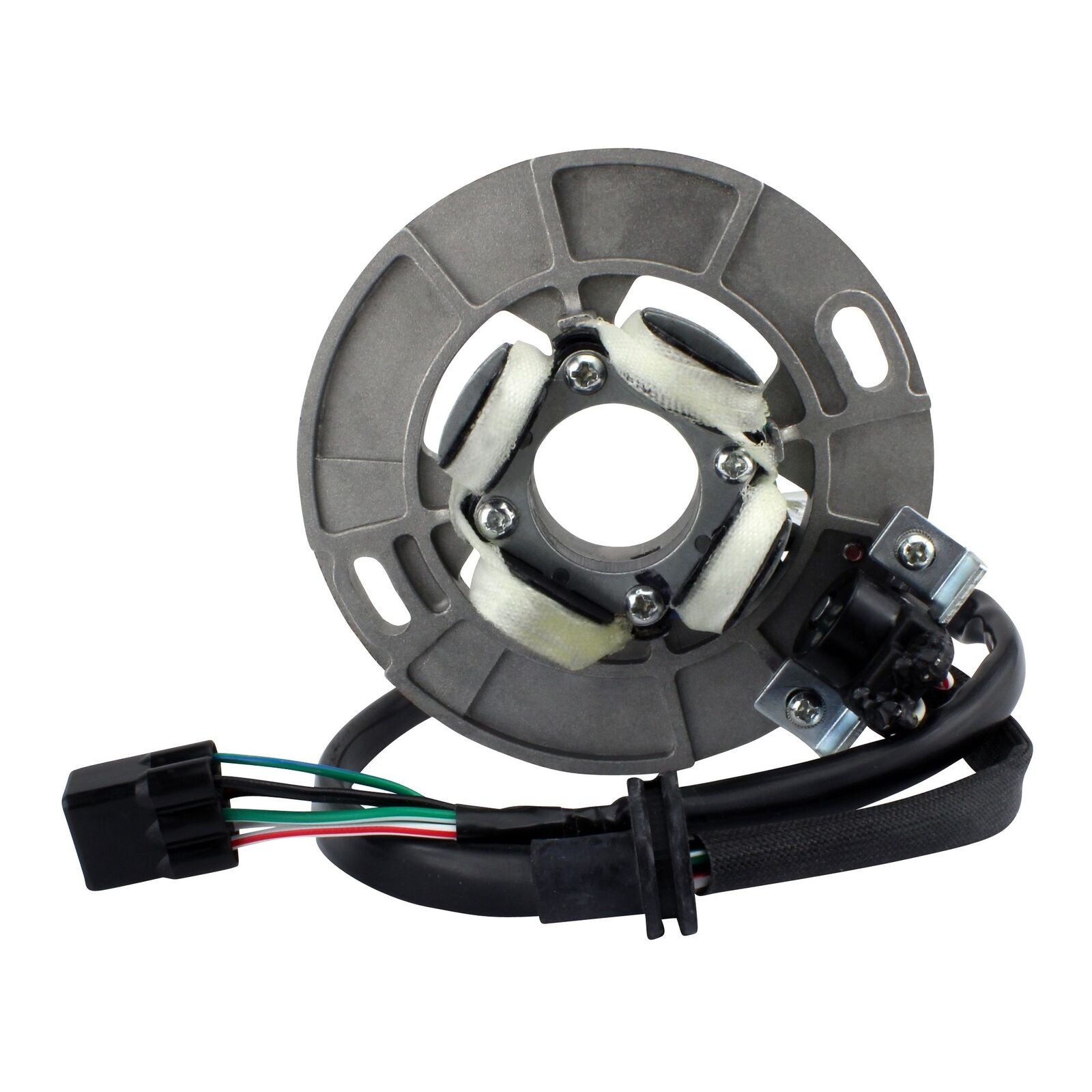

Stator Yamaha YZ65 '18-'24 & YZ85 '02-'24 (RMS010-108281)

Name: Stator Yamaha YZ65 '18-'24 & YZ85 '02-'24 (RMS010-108281)
Brand: RMSTATOR
SKU: RMS010108281
Price: 319.99 AUD
Availability: InStock

Stock bas : 6 restant(s)

$319.99

Frais d'expédition calculés à l'étape de paiement.

Fully secure checkout
Trusted by thousands
Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Se termine le {{ end_date }}"

Question about this product?

We're happy to help.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Direct replacement to your original unit.

Plug-and-play, direct fit, easy installation.
Made with the highest grade of lamination materials.
Features the highest grade of copper winding, resistant to 200 degrees Celsius.
Includes a pick up pulsar coil.

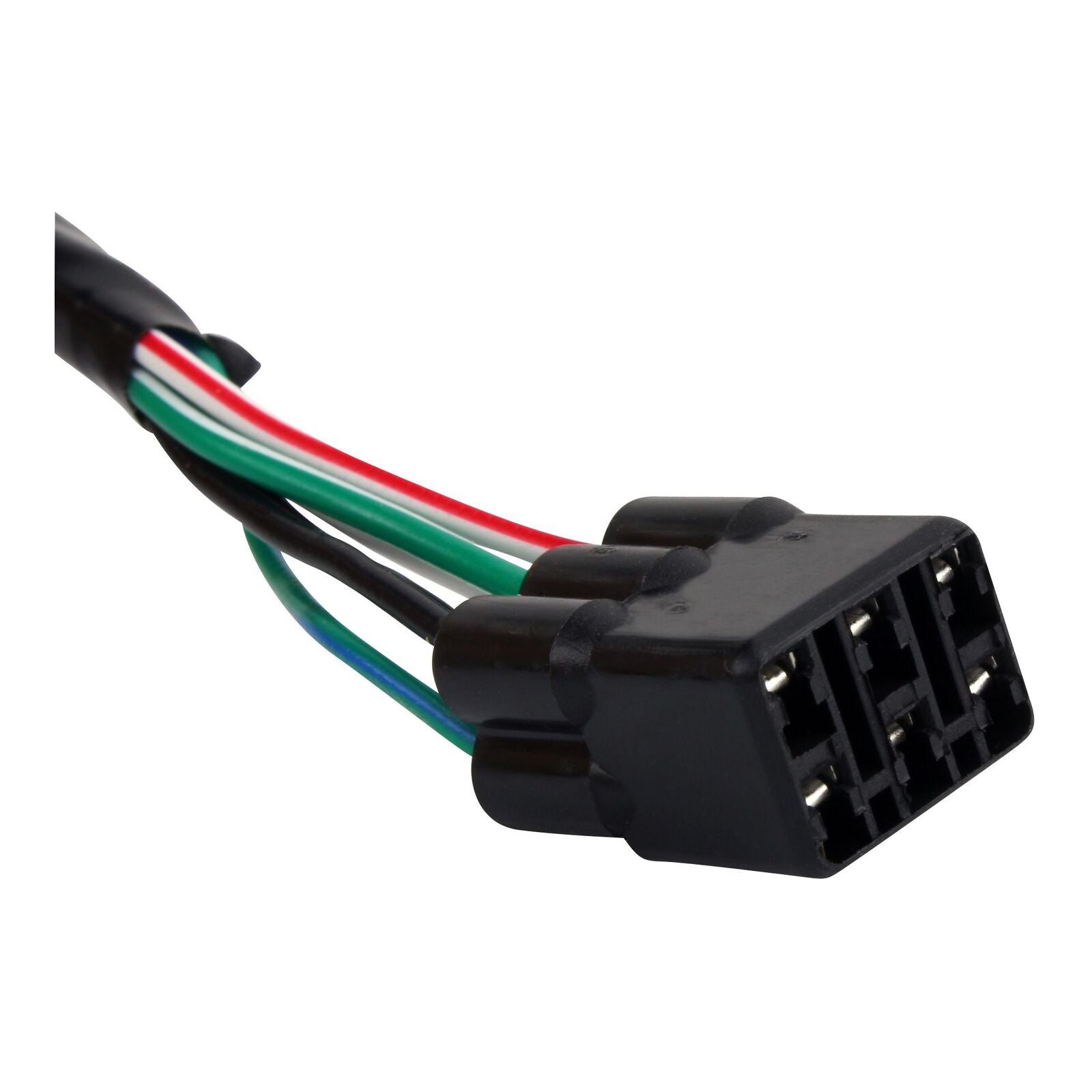

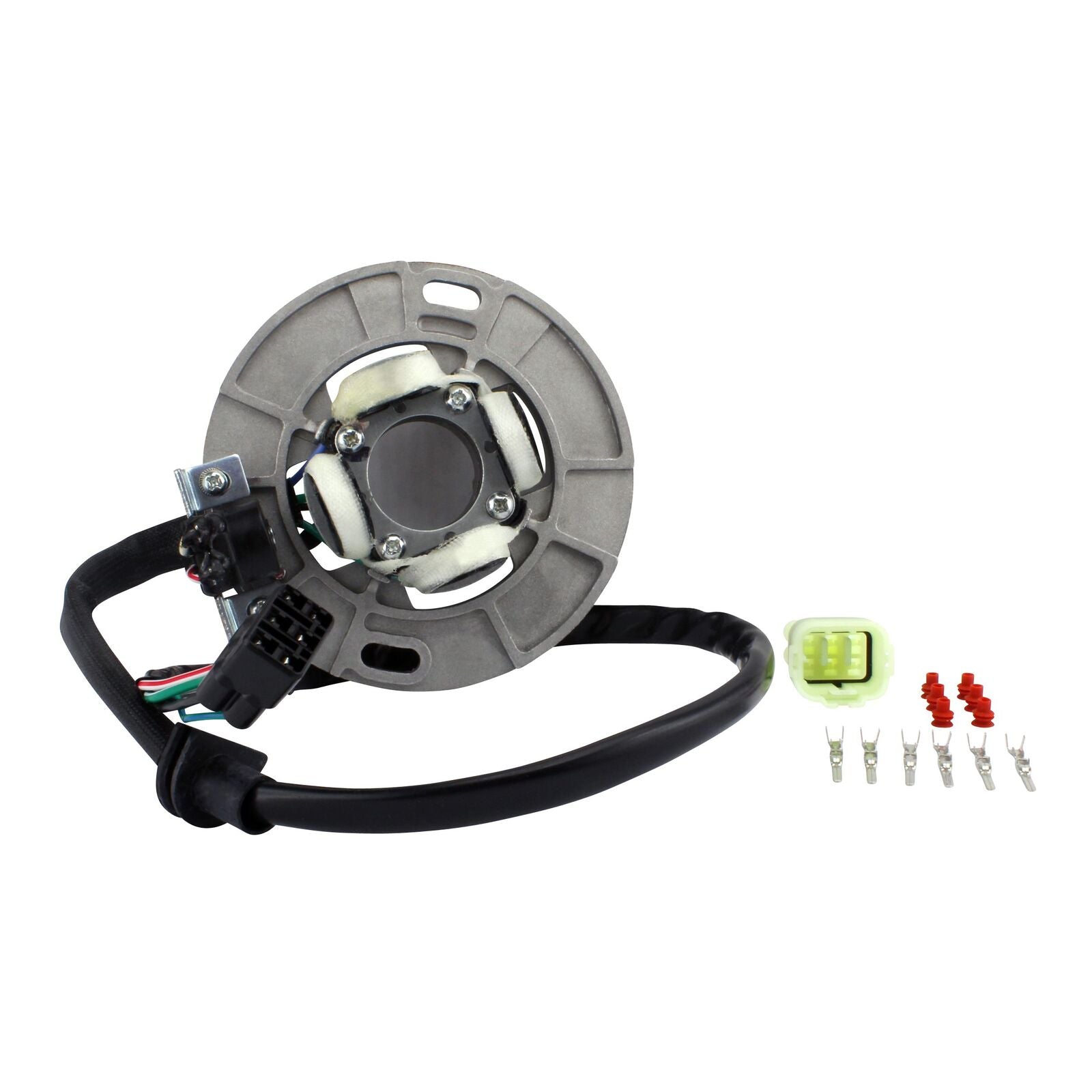

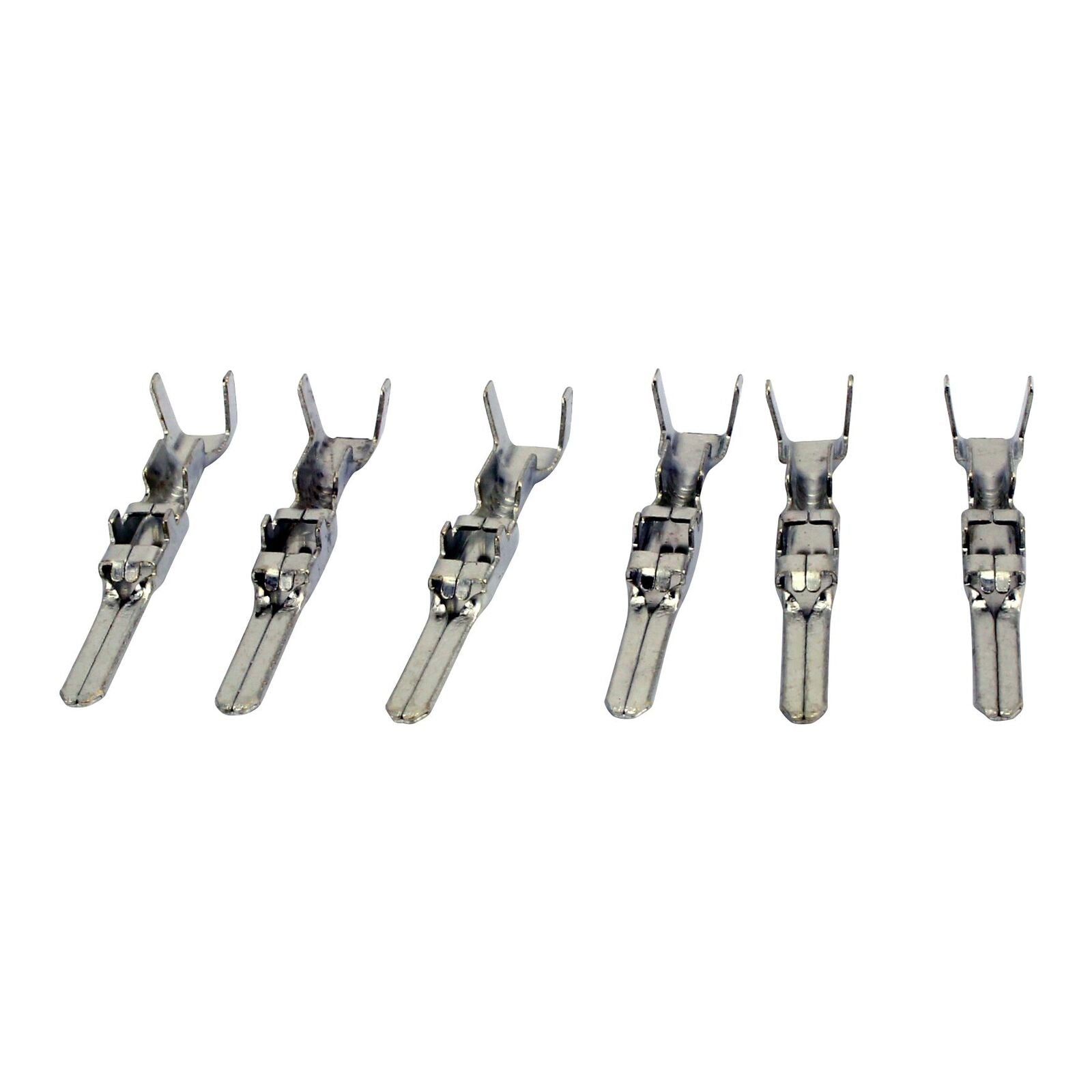

Comes with connectors.

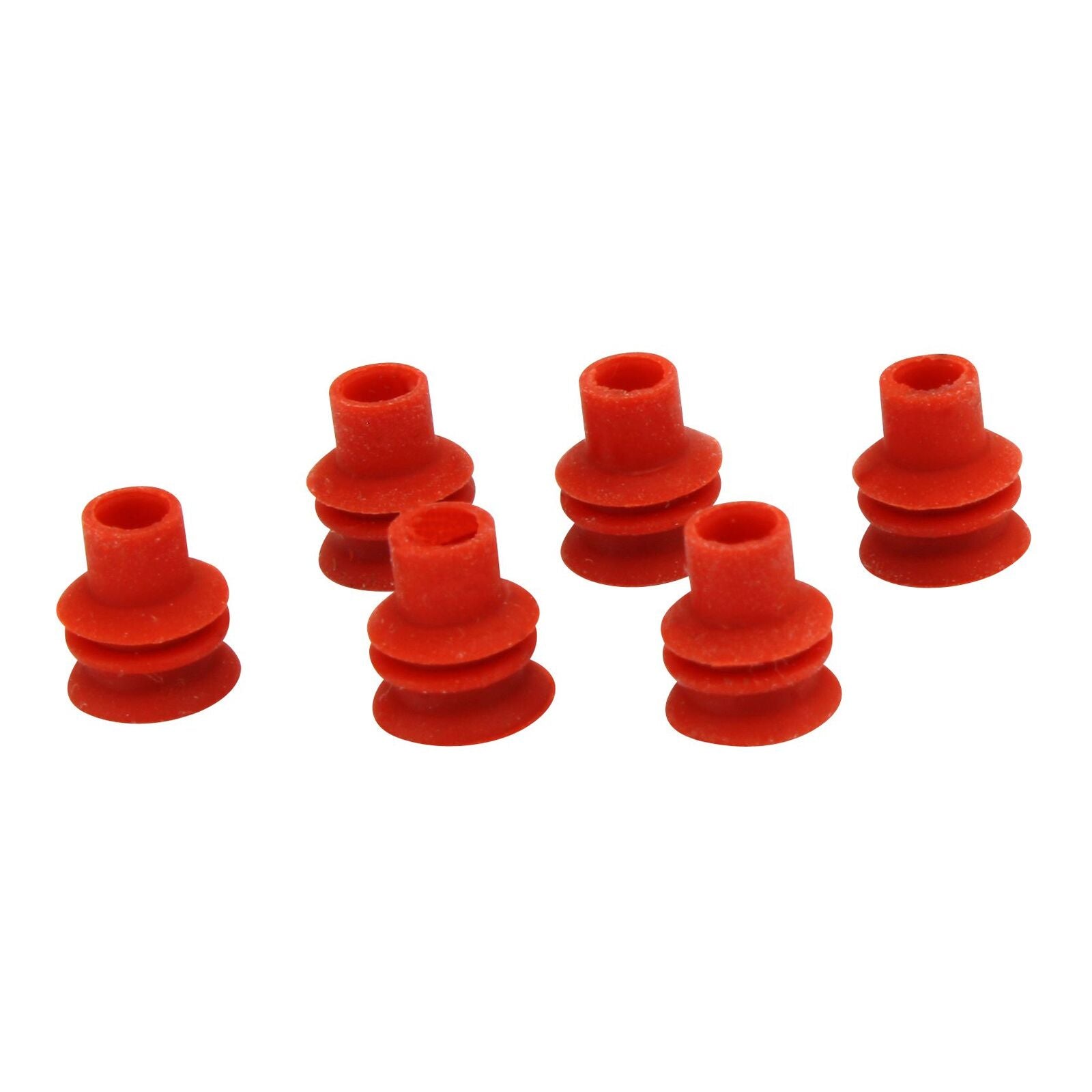

Includes a rubber grommet.
Back plate is included.
All products are tested before shipping.

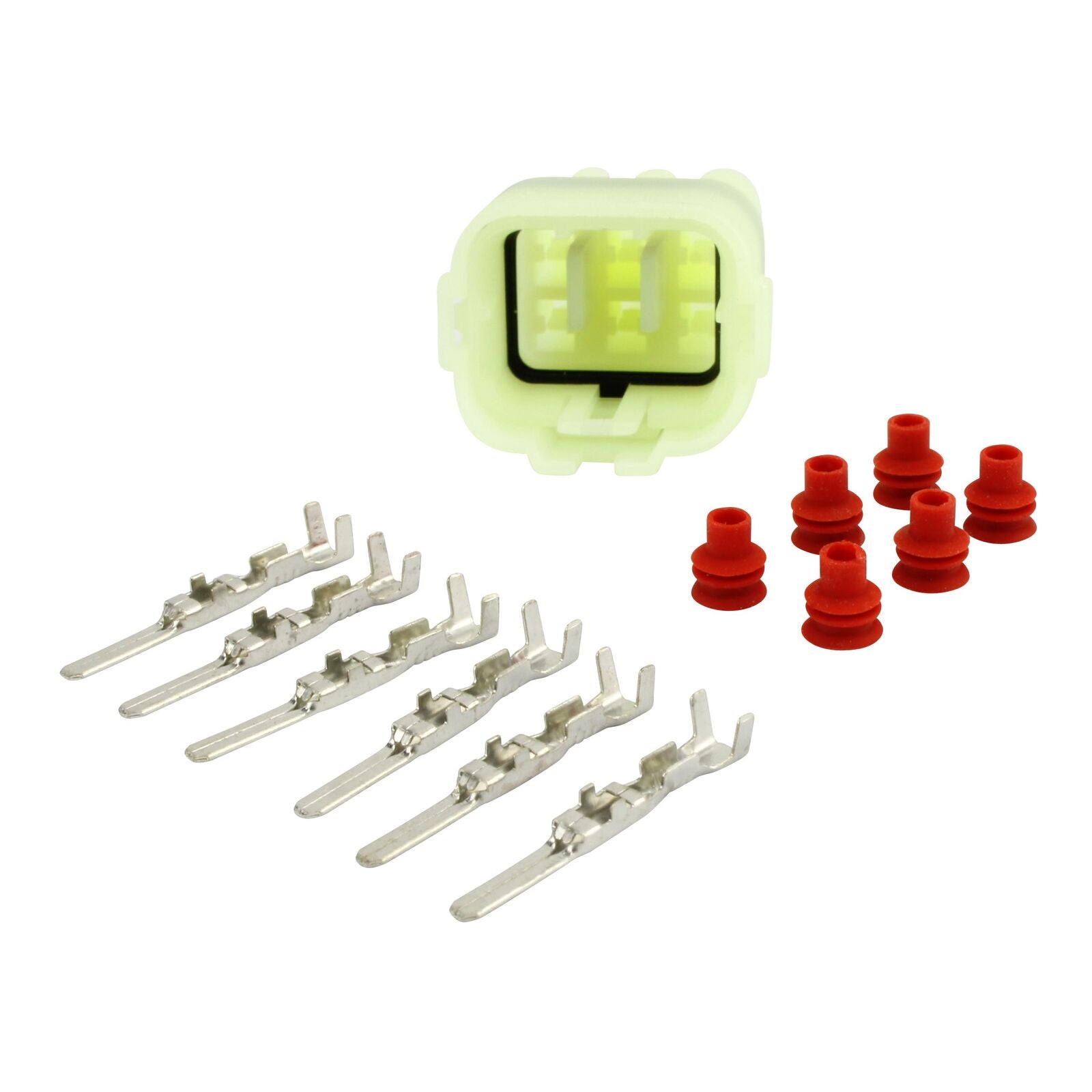

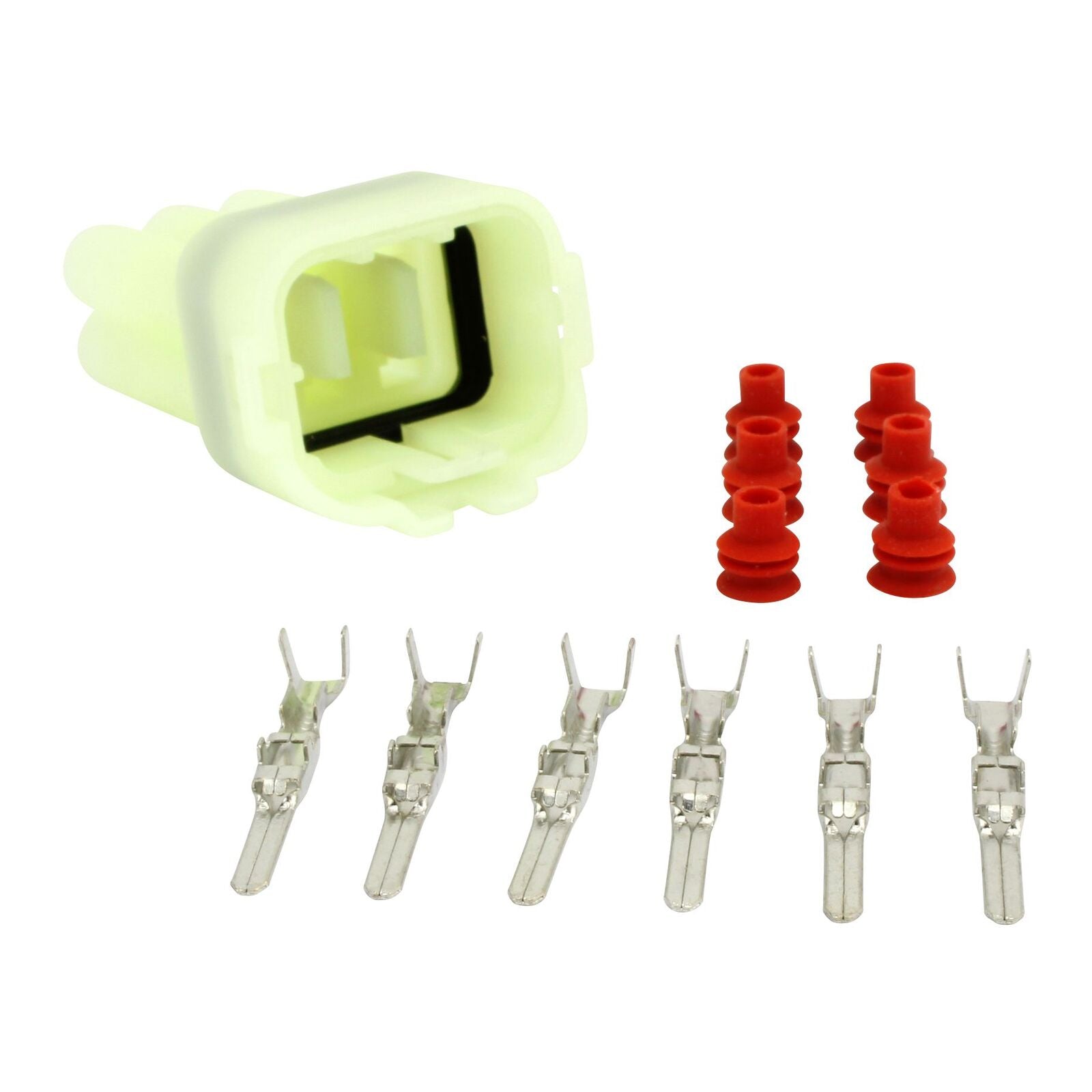

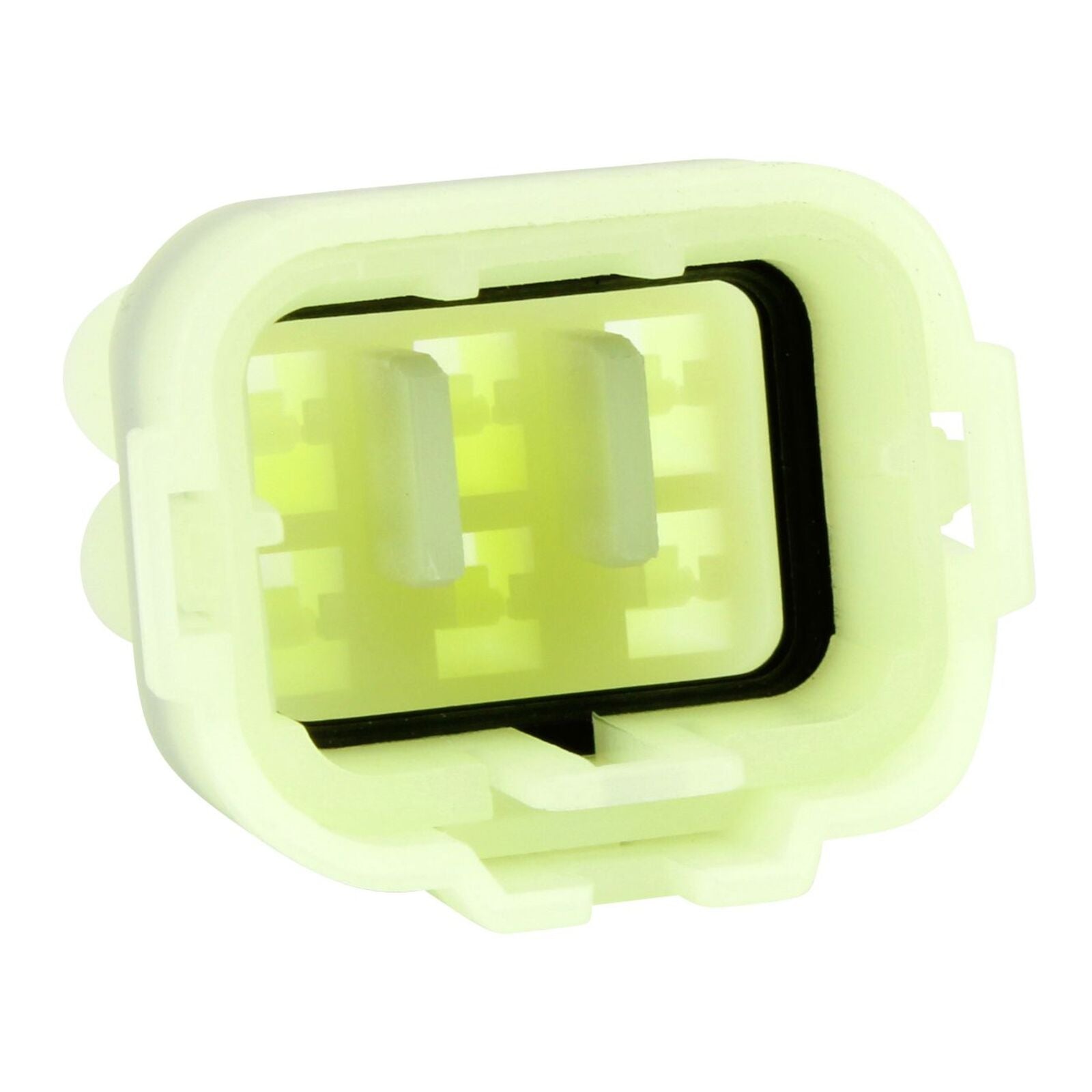

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Dimensions:

Interior diameter: 27 mm
Exterior diameter: 109 mm
Thickness: 32.6 mm
Length of wires (stator to grommet): 135 mm
Length of wires (grommet to plug): 410 mm
Length of pickup coil's wire to grommet: 135 mm

Other Specifications:

Number of wires: 6
Number of plugs: 1
Number of pins: 6
Number of poles: 4
Wire to wire resistance:
- Pickup: White/Blue to White/Red = 293 ohms ±20%
- Source: Green/White to Black/Red = 858 ohms ±20%
- Source: Black to Green/Blue = 53 ohms ±20%
