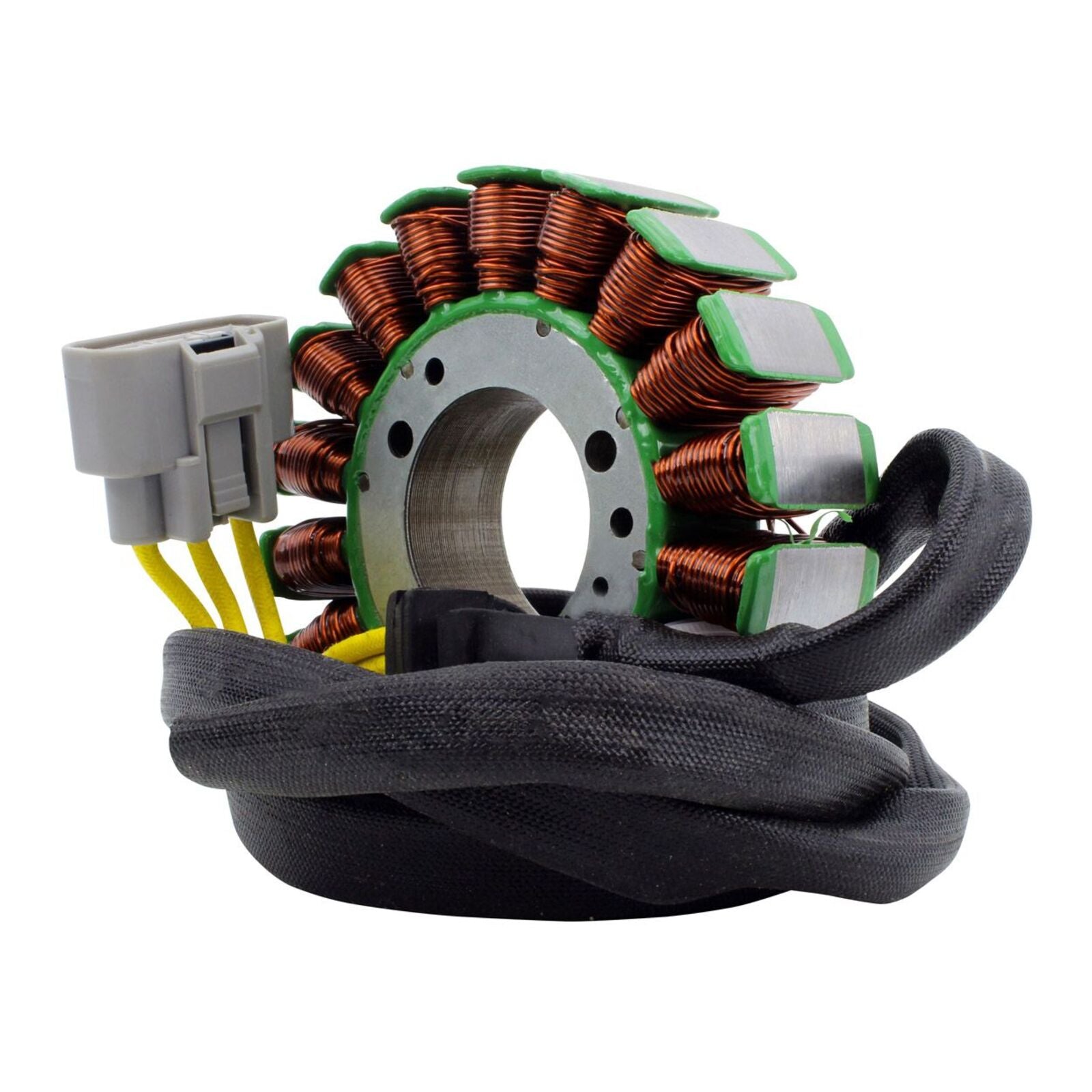

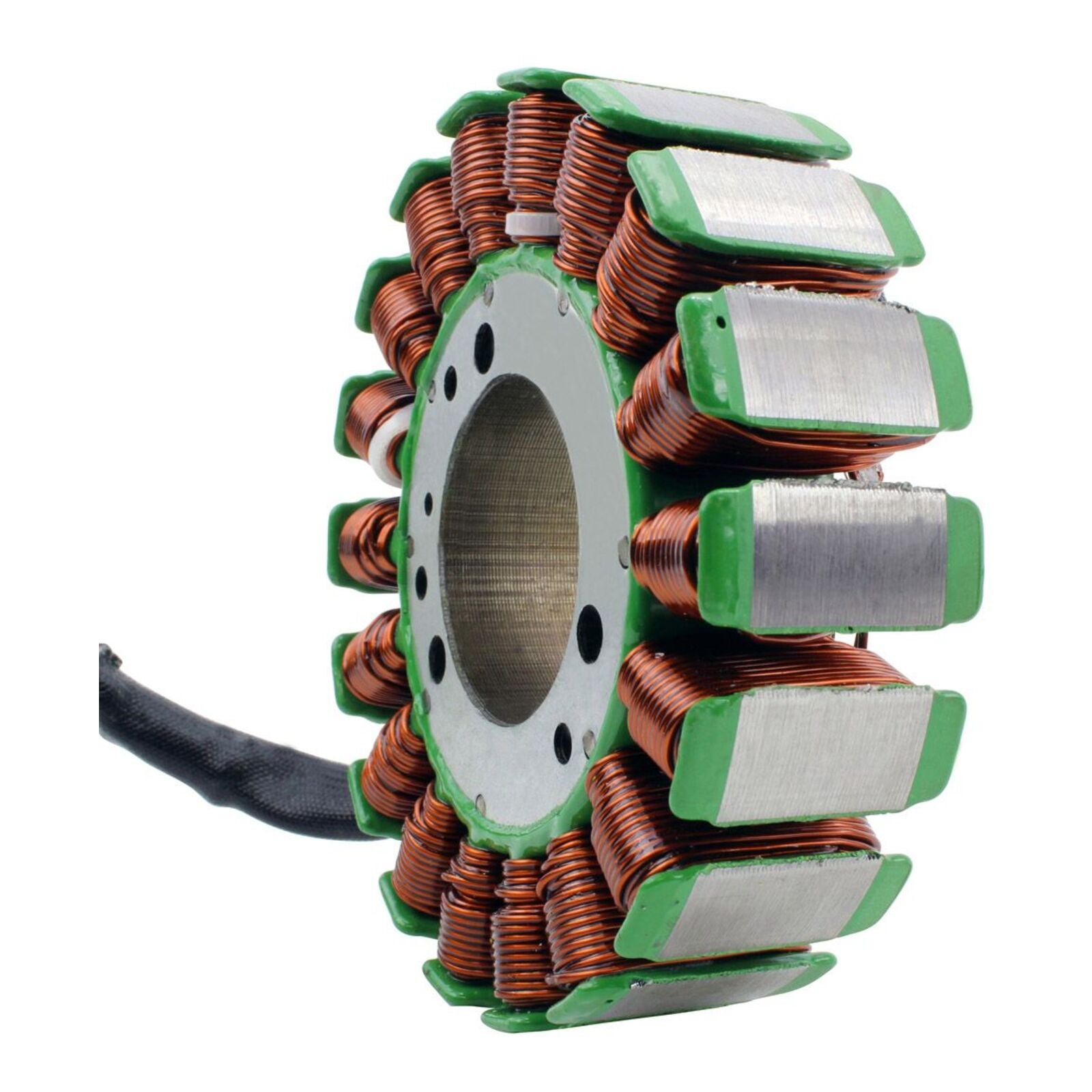

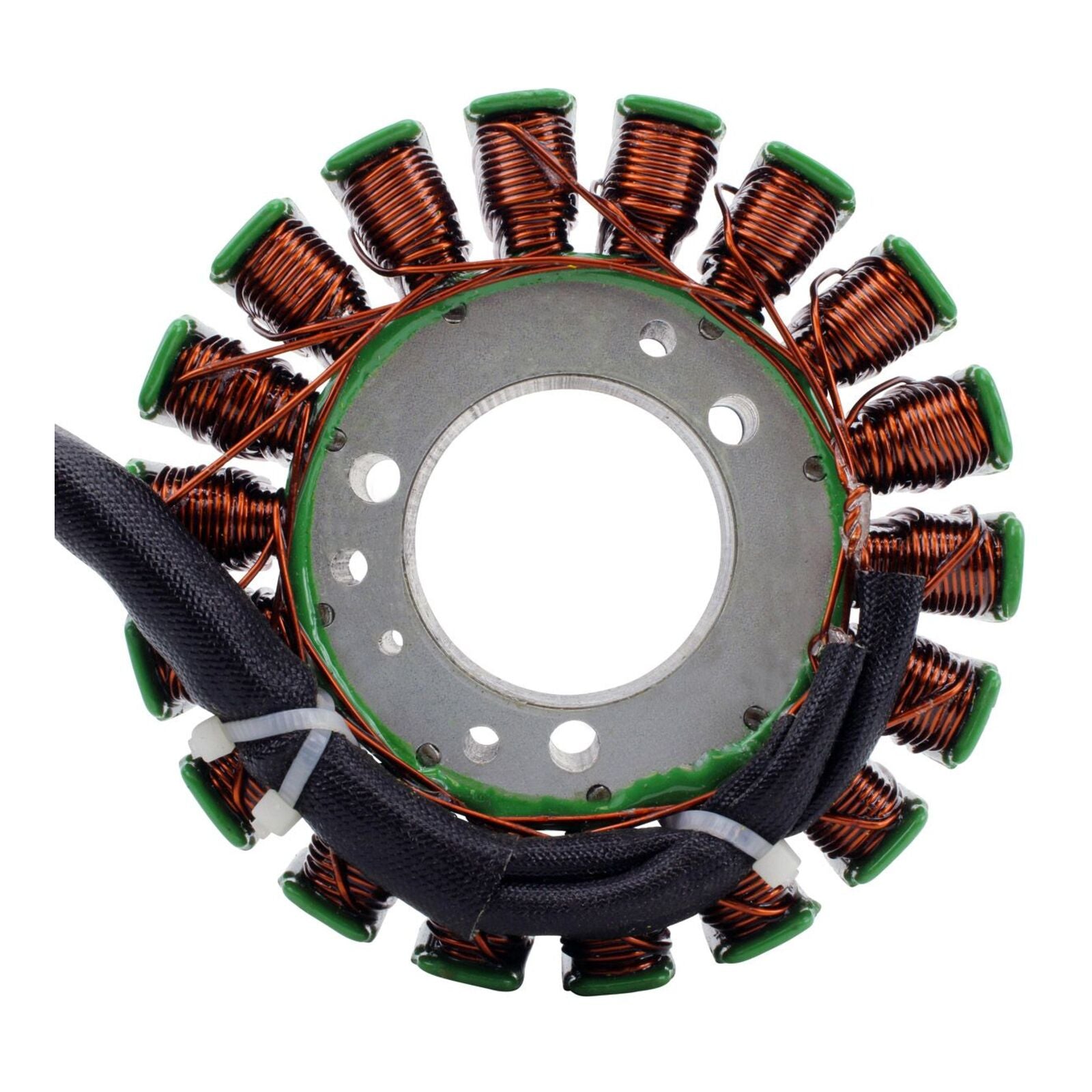

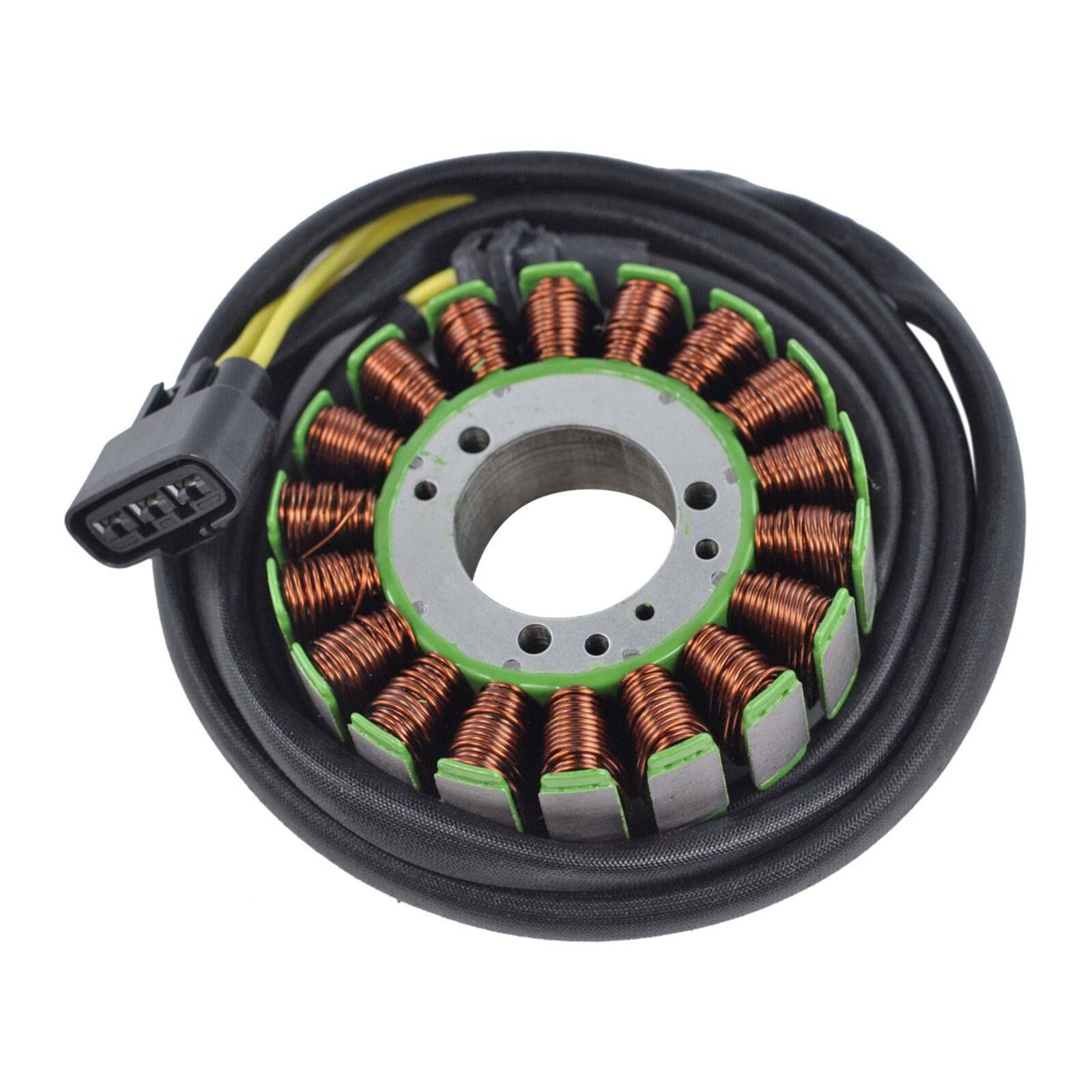

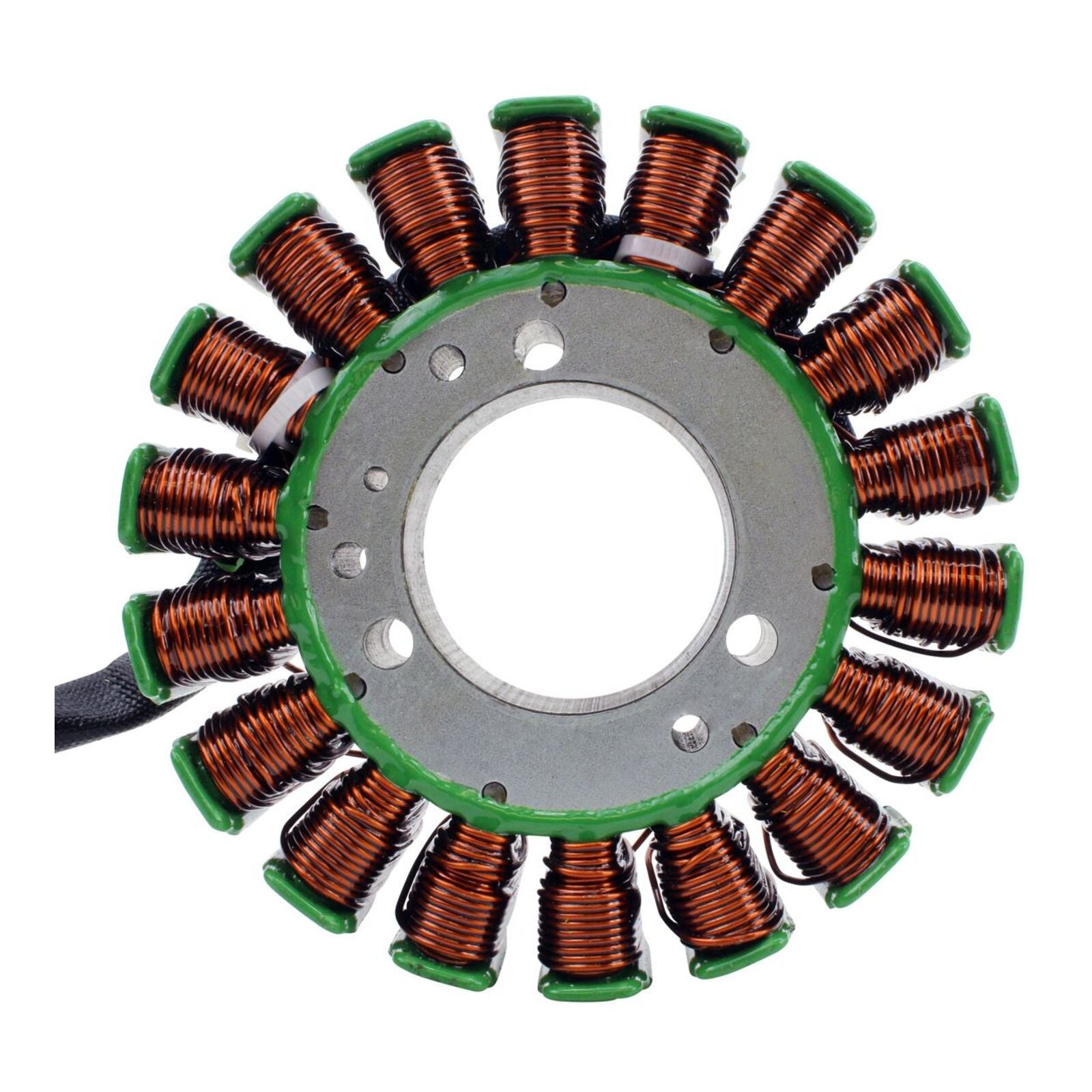

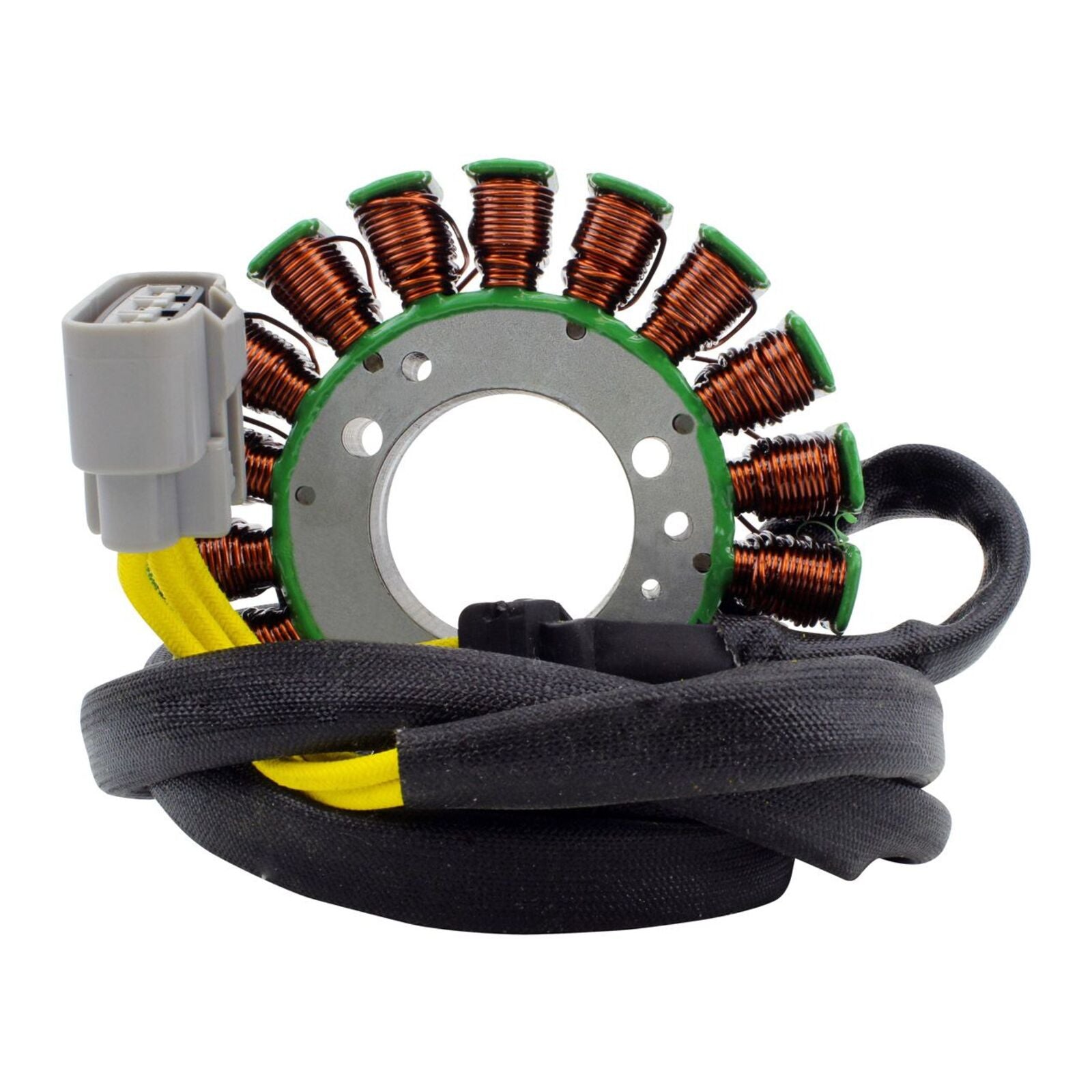

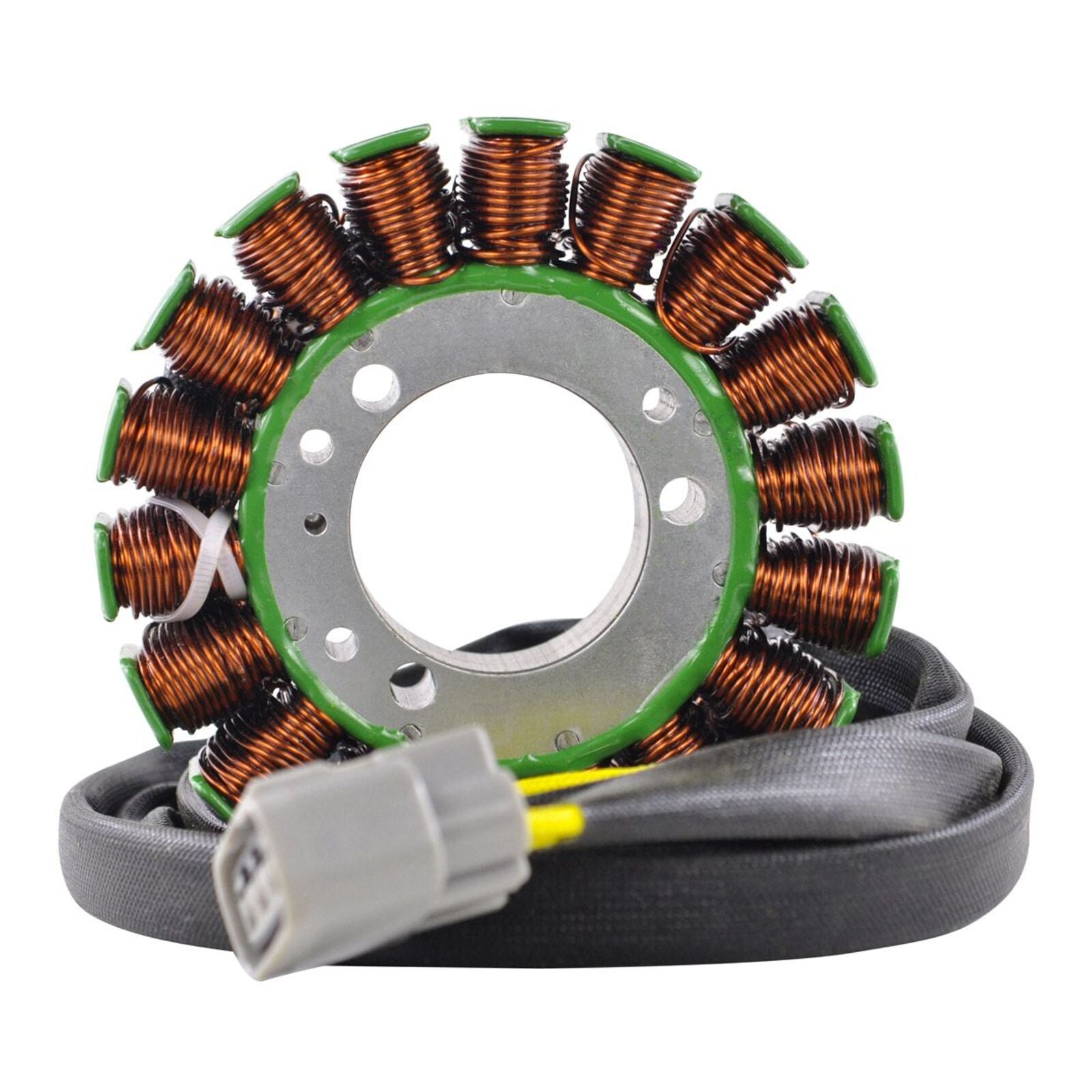

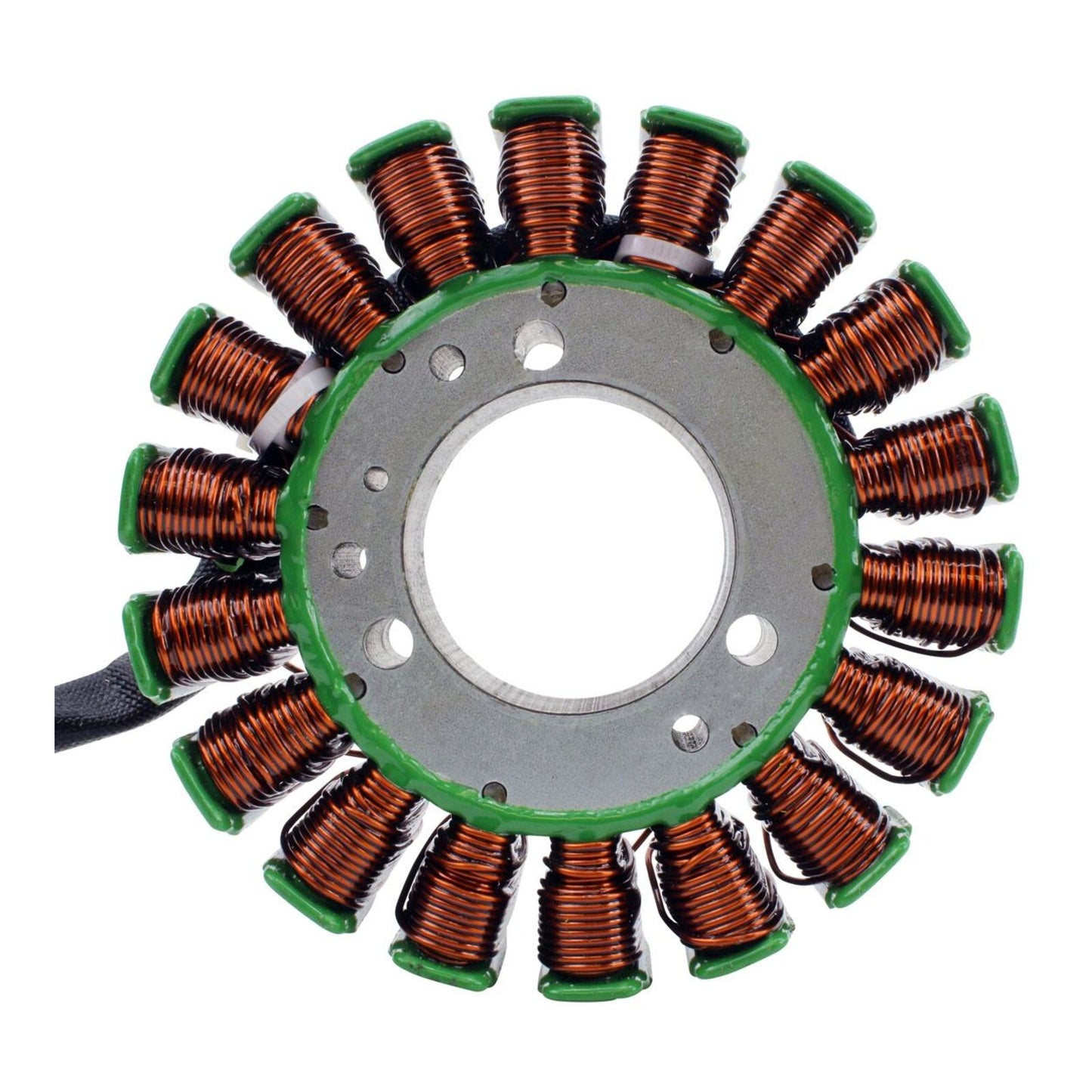

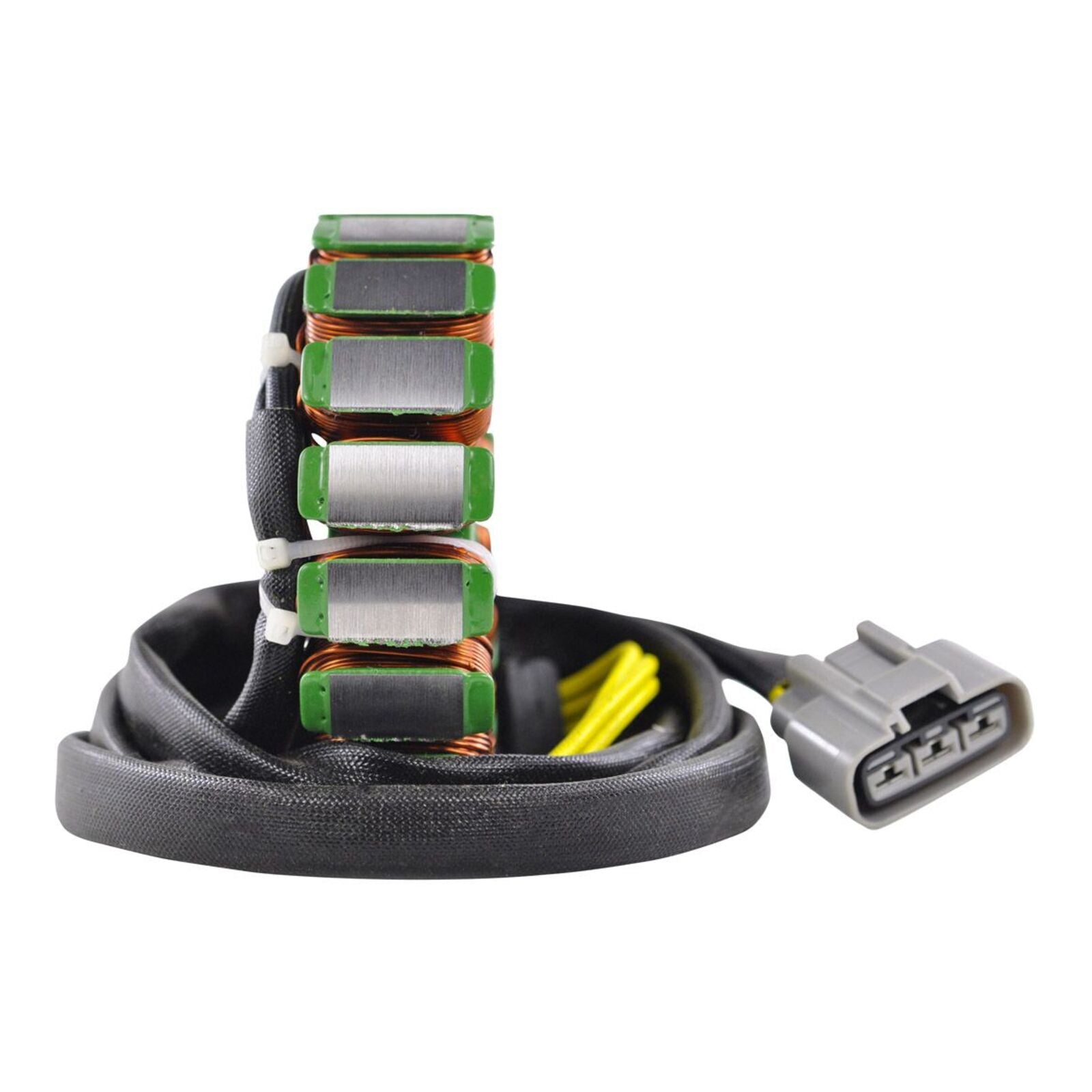

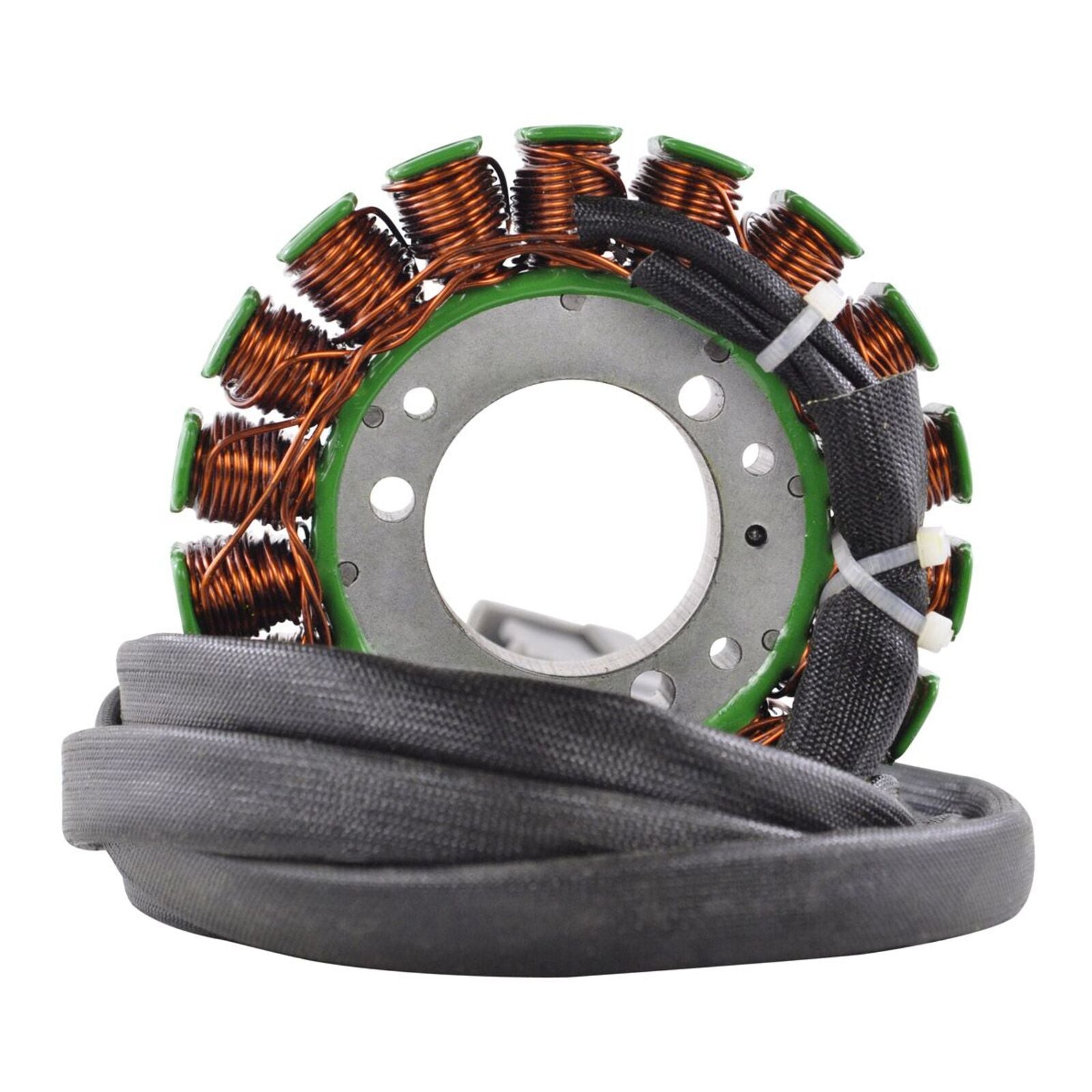

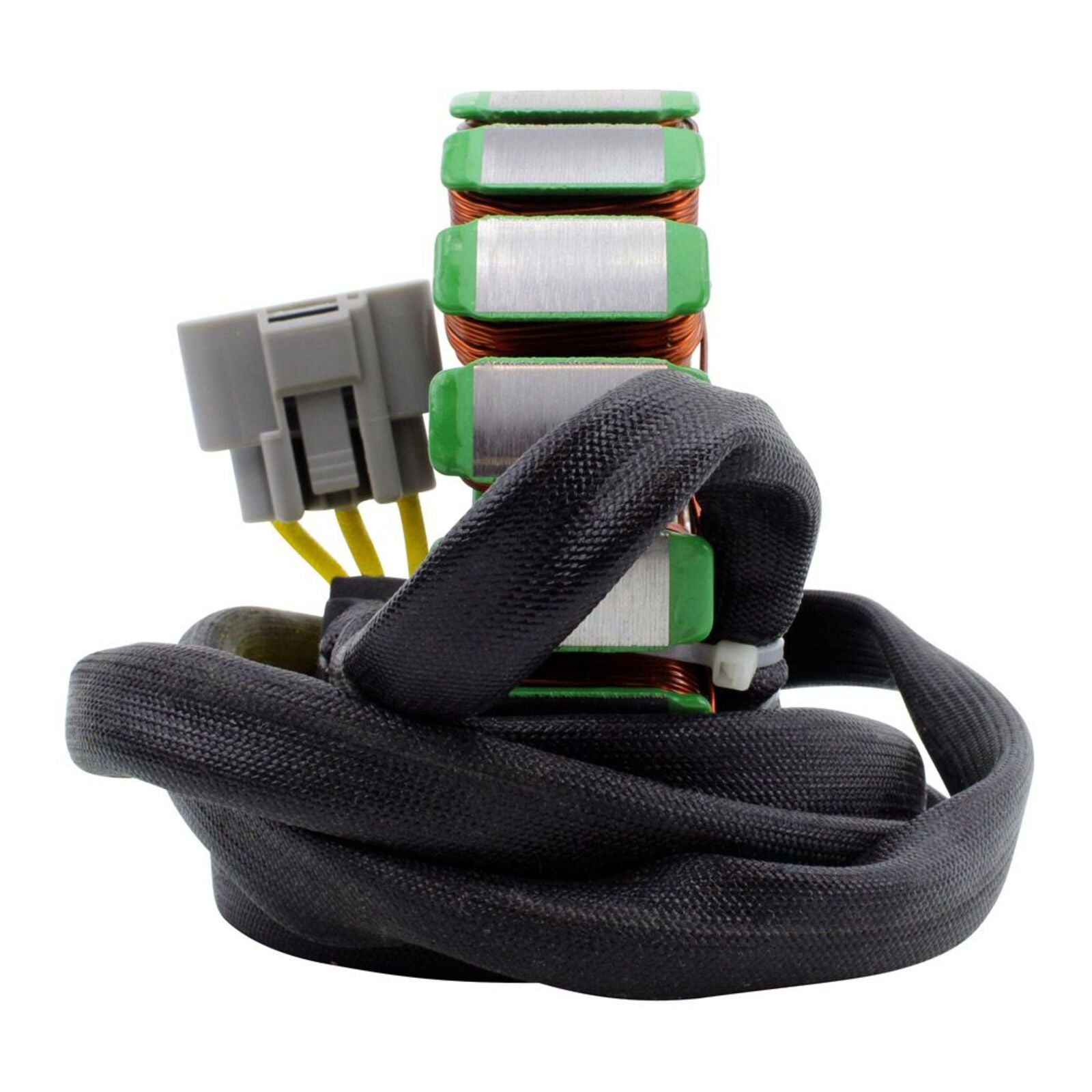

GENERATOR STATOR CAN-AM COMMANDER MAVERICK OUTLANDER

Name: GENERATOR STATOR CAN-AM COMMANDER MAVERICK OUTLANDER
Brand: RMSTATOR
SKU: RMS01399
Price: 439.99 AUD
Availability: InStock

Stok düzeyi düşük: 9 adet kaldı

$439.99

Kargo, ödeme sayfasında hesaplanır.

Fully secure checkout
Trusted by thousands
Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "{{ end_date }} tarihinde sona erer"

Question about this product?

We're happy to help.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Features:

650W
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

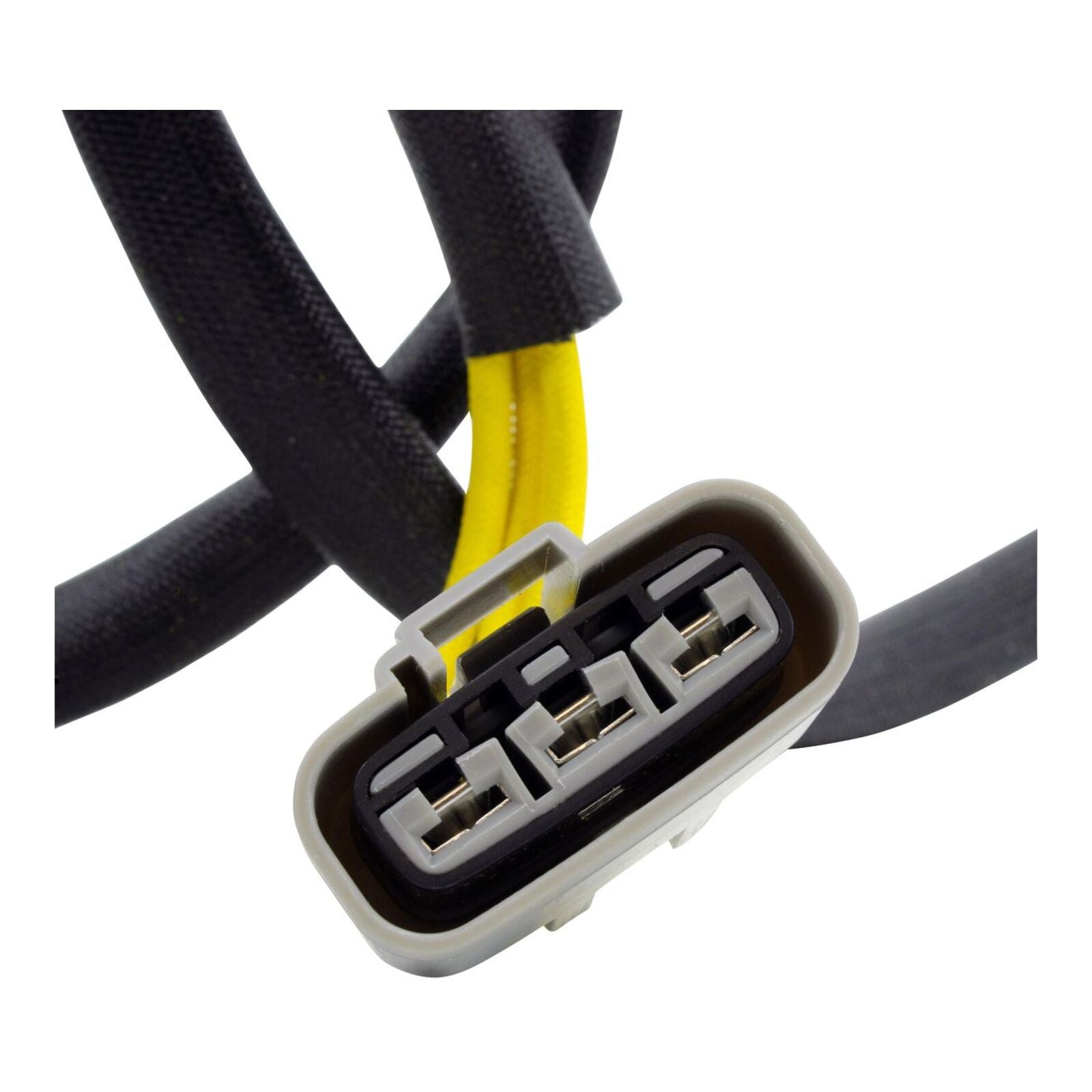

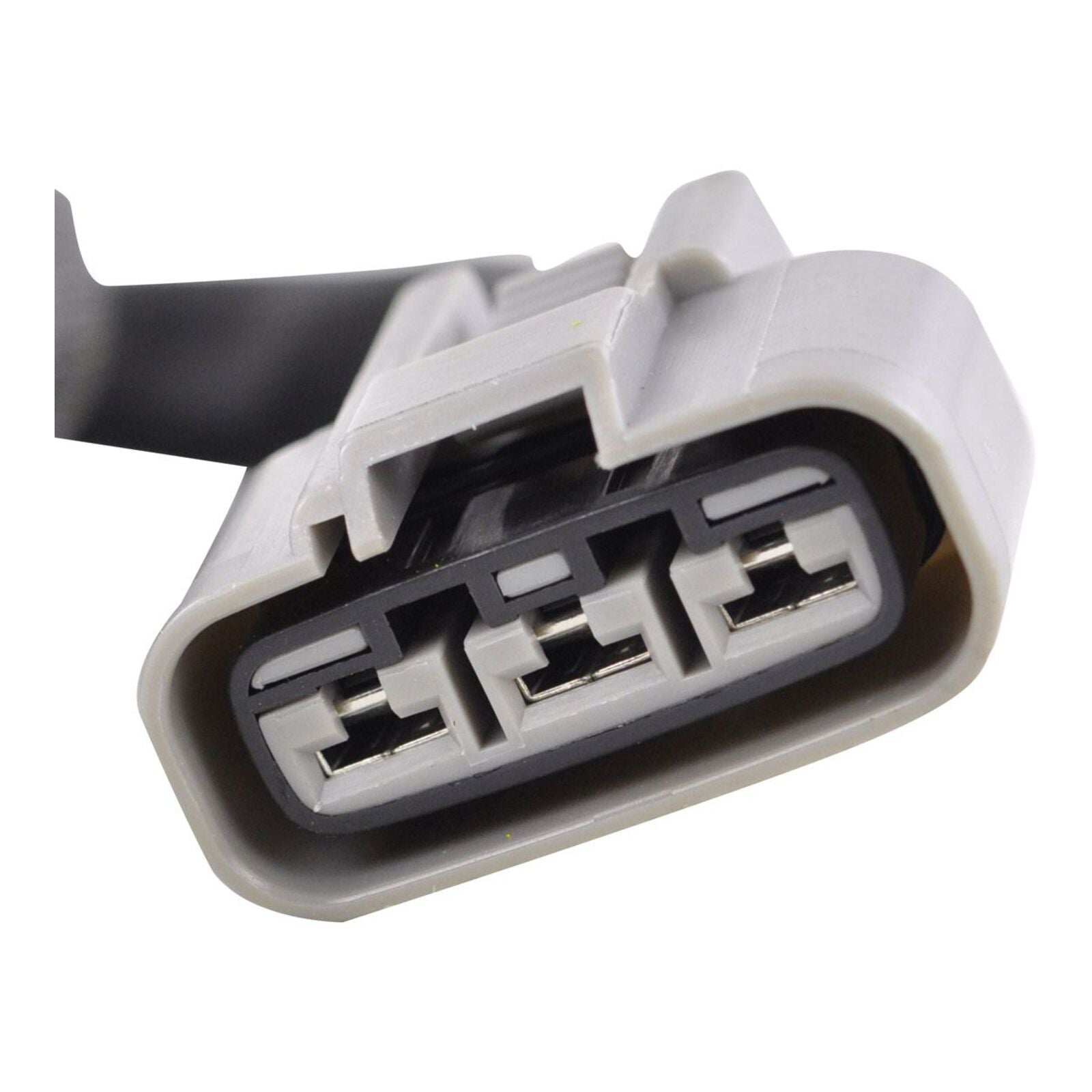

Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:

Dimensions:

Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 24 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 1470 mm

Other specifications:

Wattage: 650
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.4 ohms +/-20%

Before installing your new stator:

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi- temp dielectric grease on all connectors

The new stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations.

This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If the new stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible, no less than 0.010’’.
