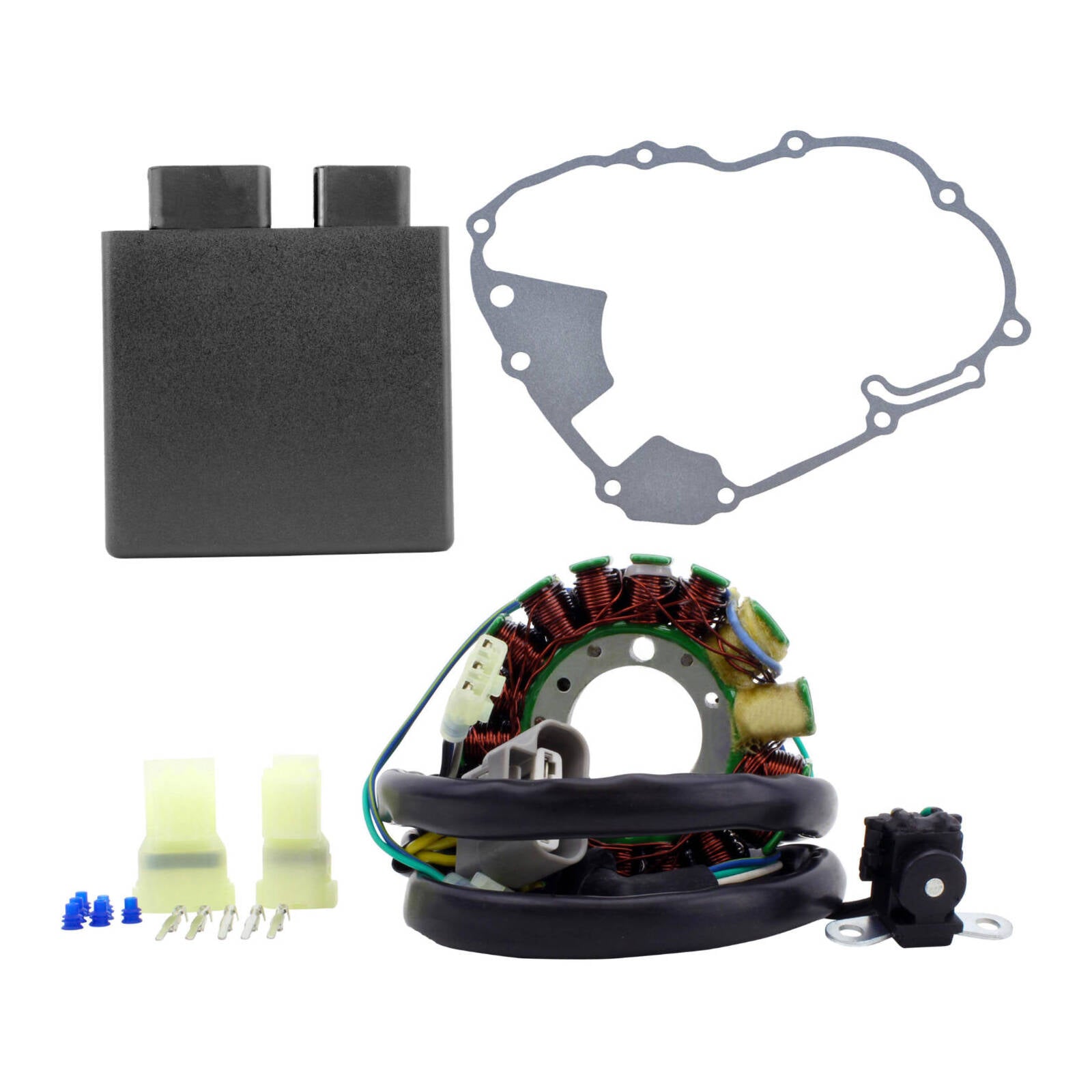

STATOR KIT + CDI BOX + GASKET HON TRX450R 04 (RMS900-106198)

Brand new aftermarket stator, PeakRPM CDI box and gasket kit.

• Direct replacement for the original unit.
• Plug-and-play, direct fit and easy installation.
• All products are tested before shipping.

All item pictures are accurate. If in doubt, compare the item with the original part.

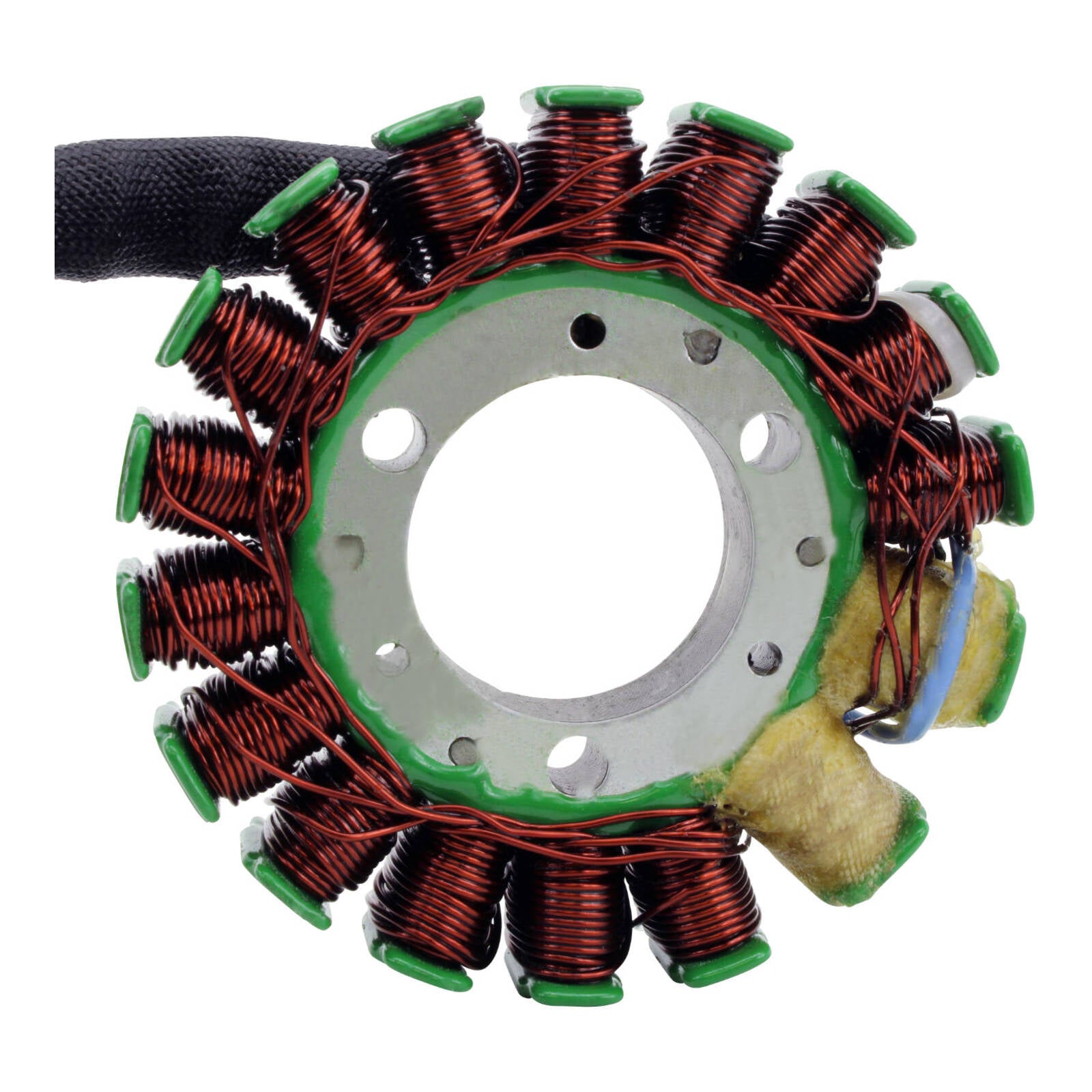

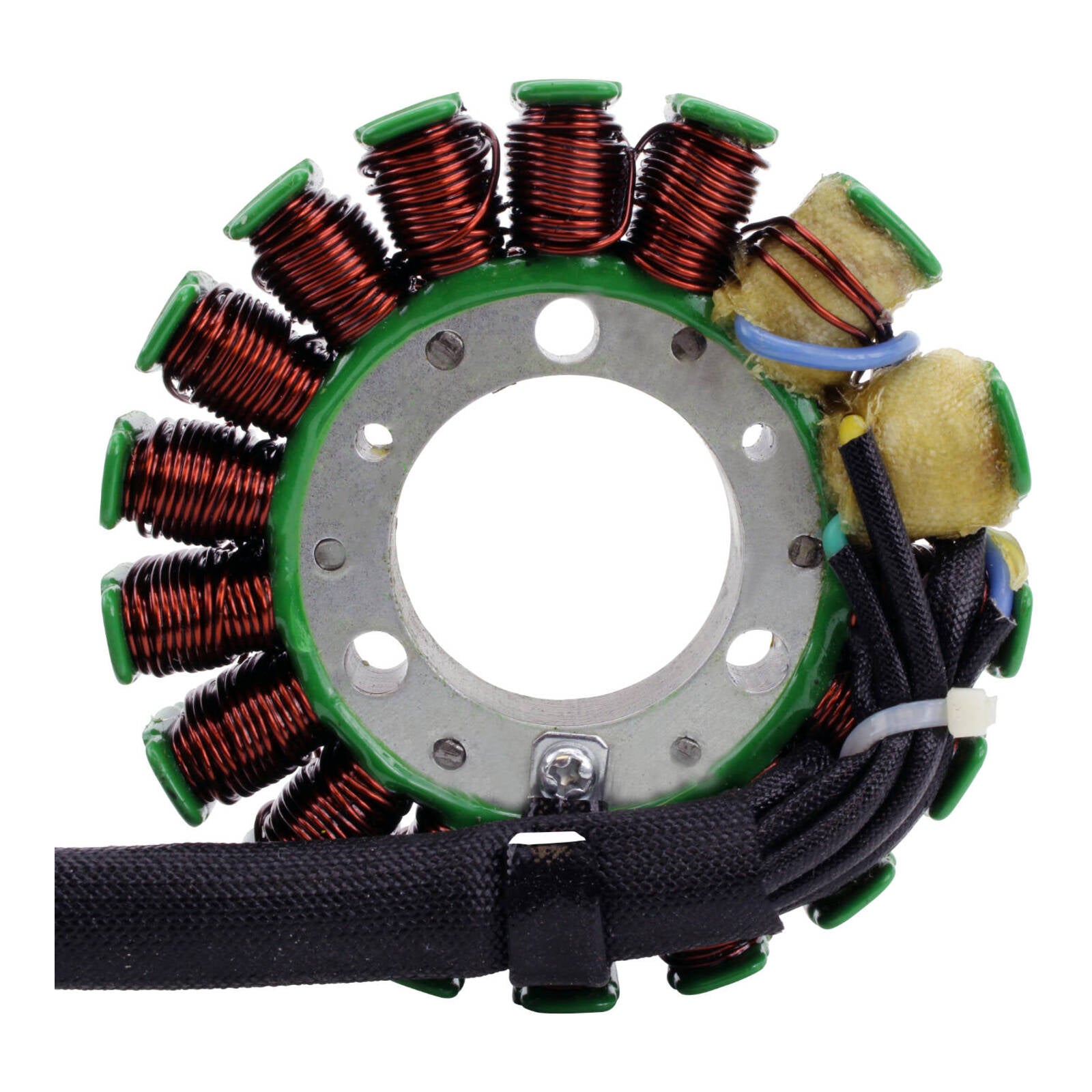

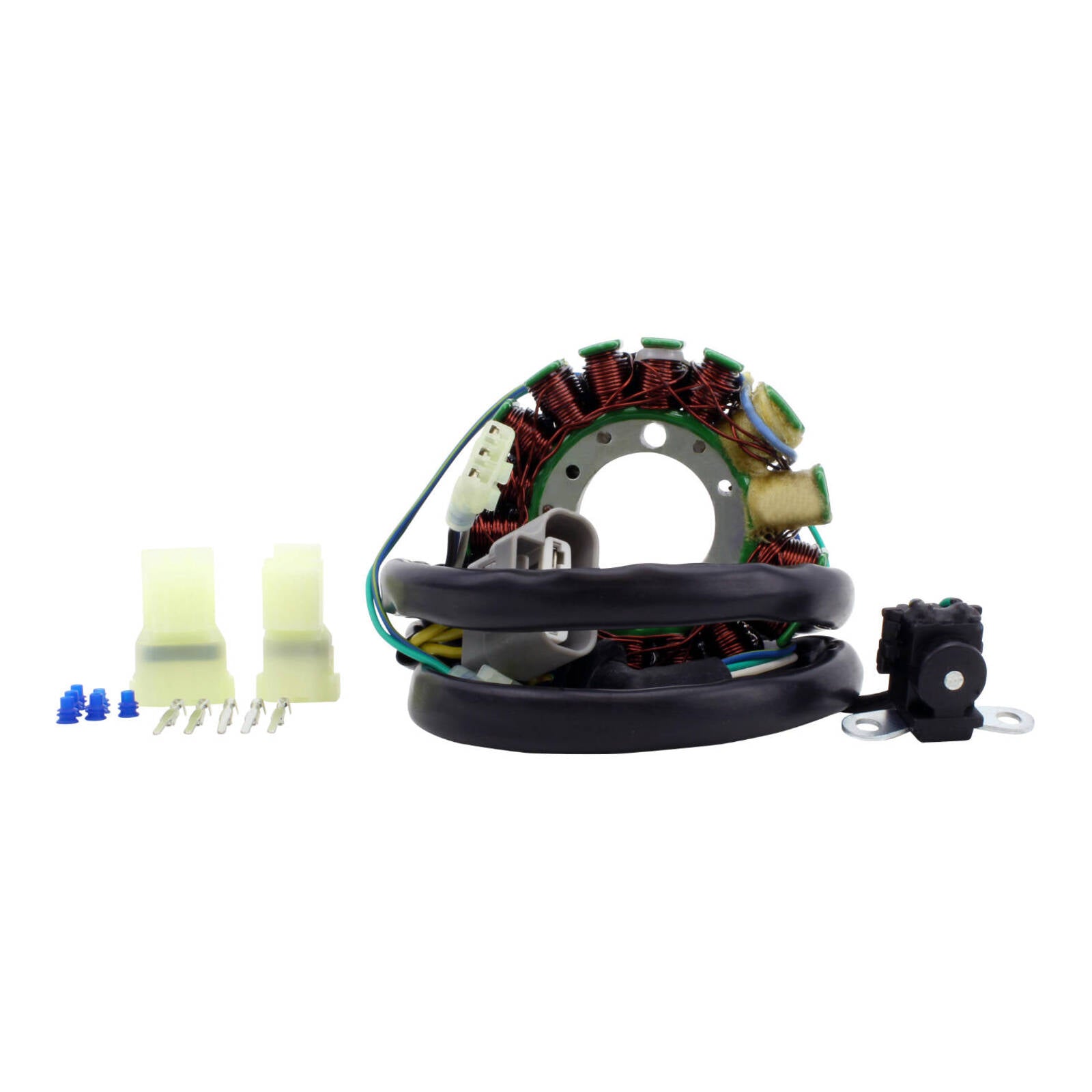

Stator Features:

• Made with high-grade lamination materials.
• High-grade copper winding, resistant to temperatures up to 200°C.
• Pickup/pulser coil included.
• Connectors included.
• Rubber grommet included.

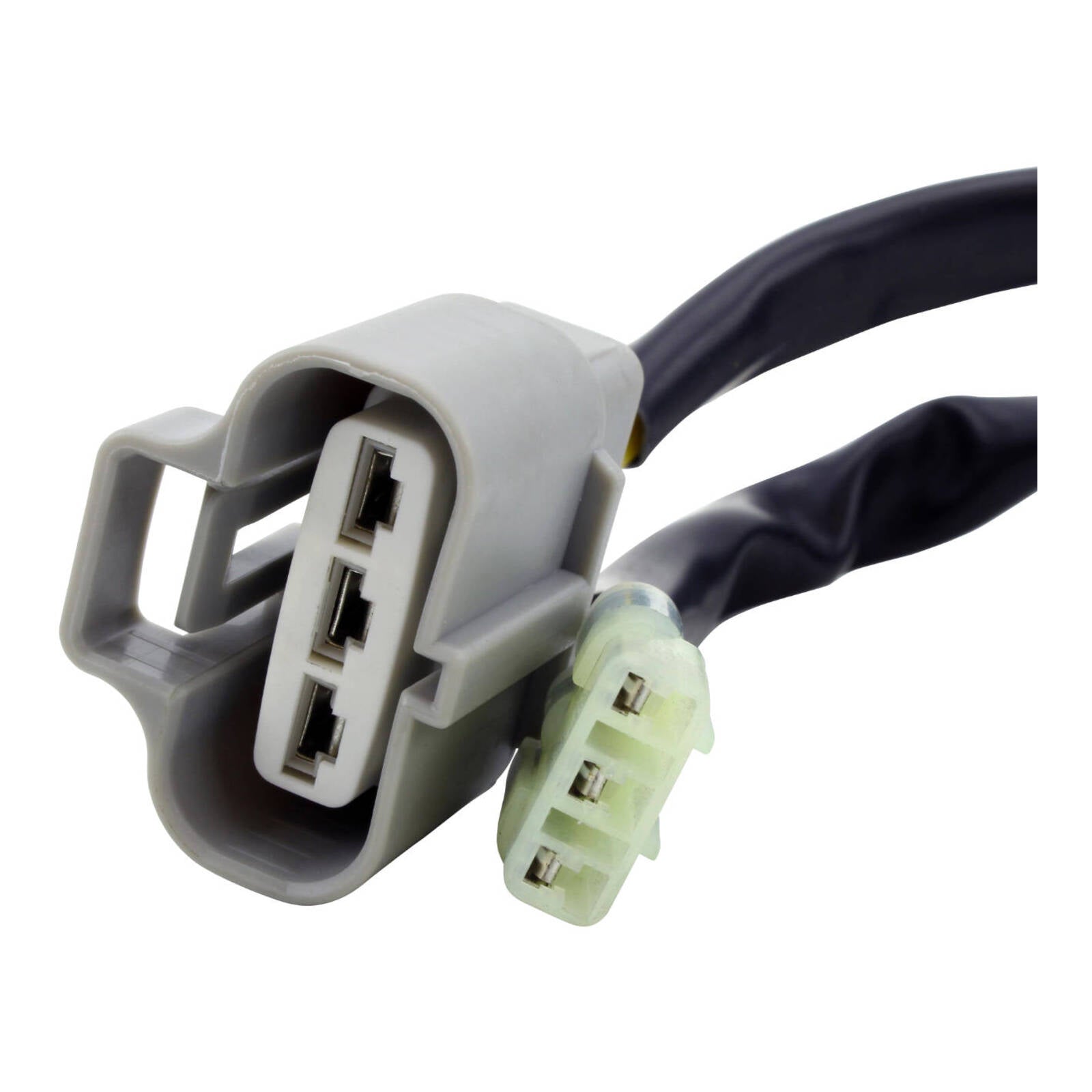

An opposite connector for the main harness side is also included, as these connectors are often melted, corroded or defective and can be a major cause of recurring electrical issues.

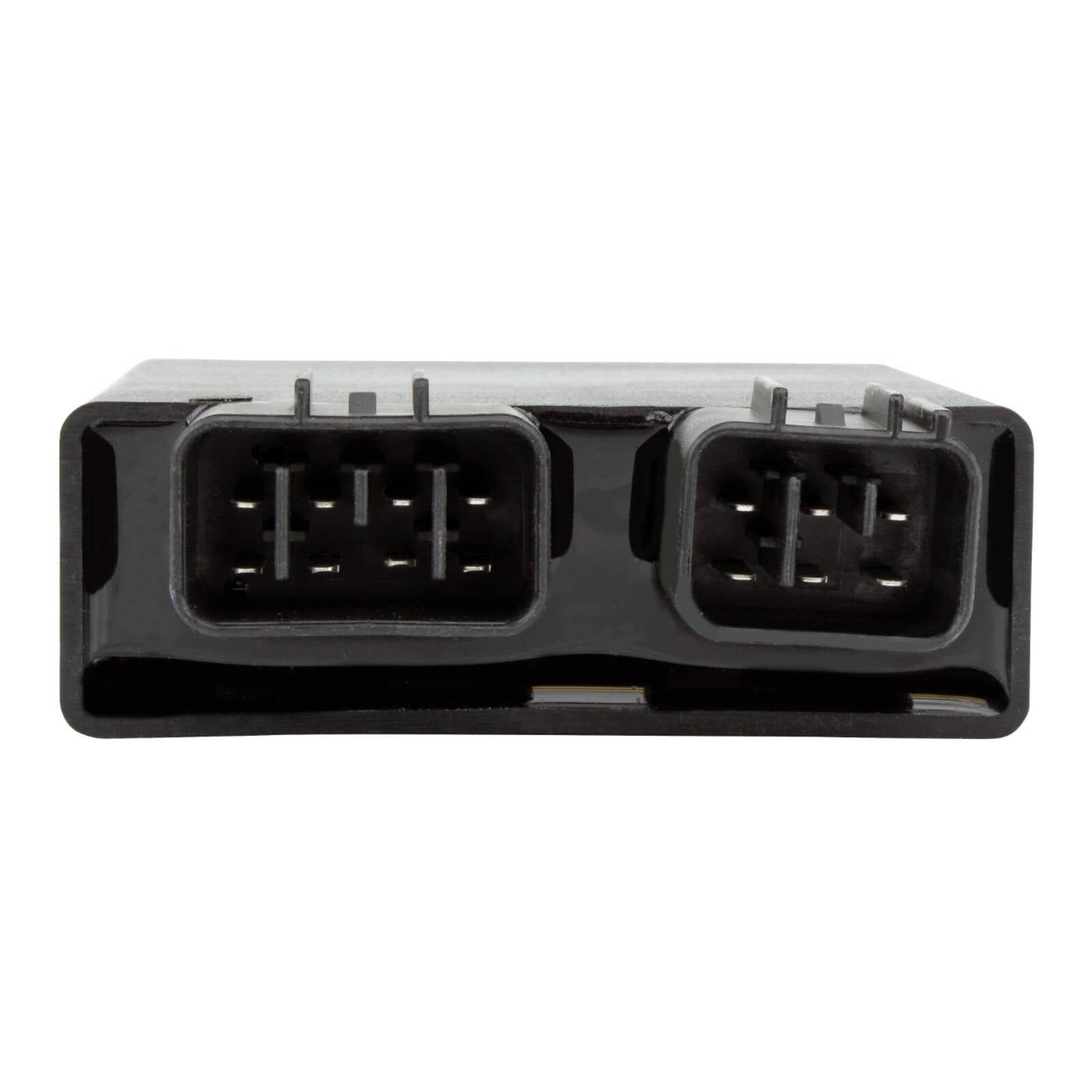

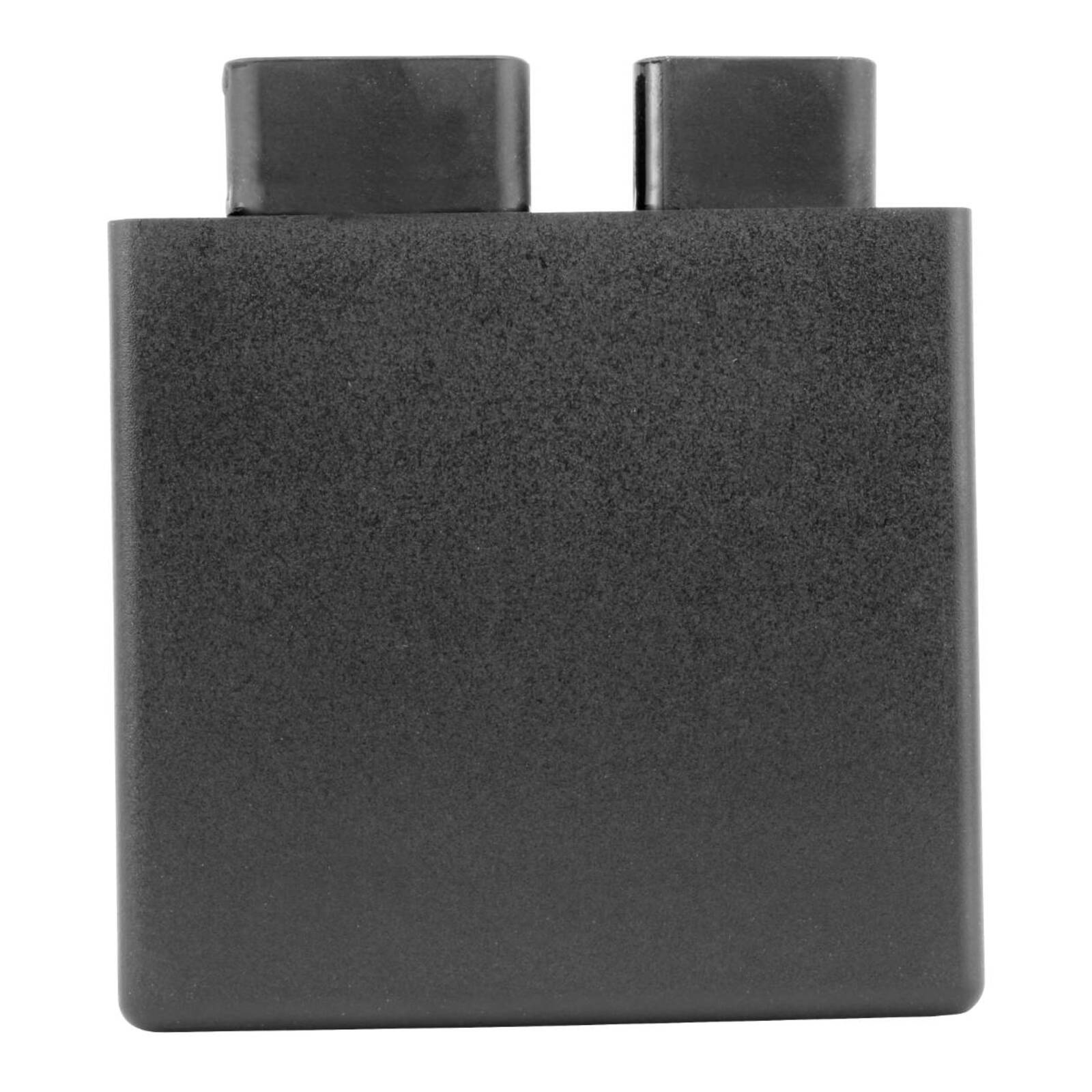

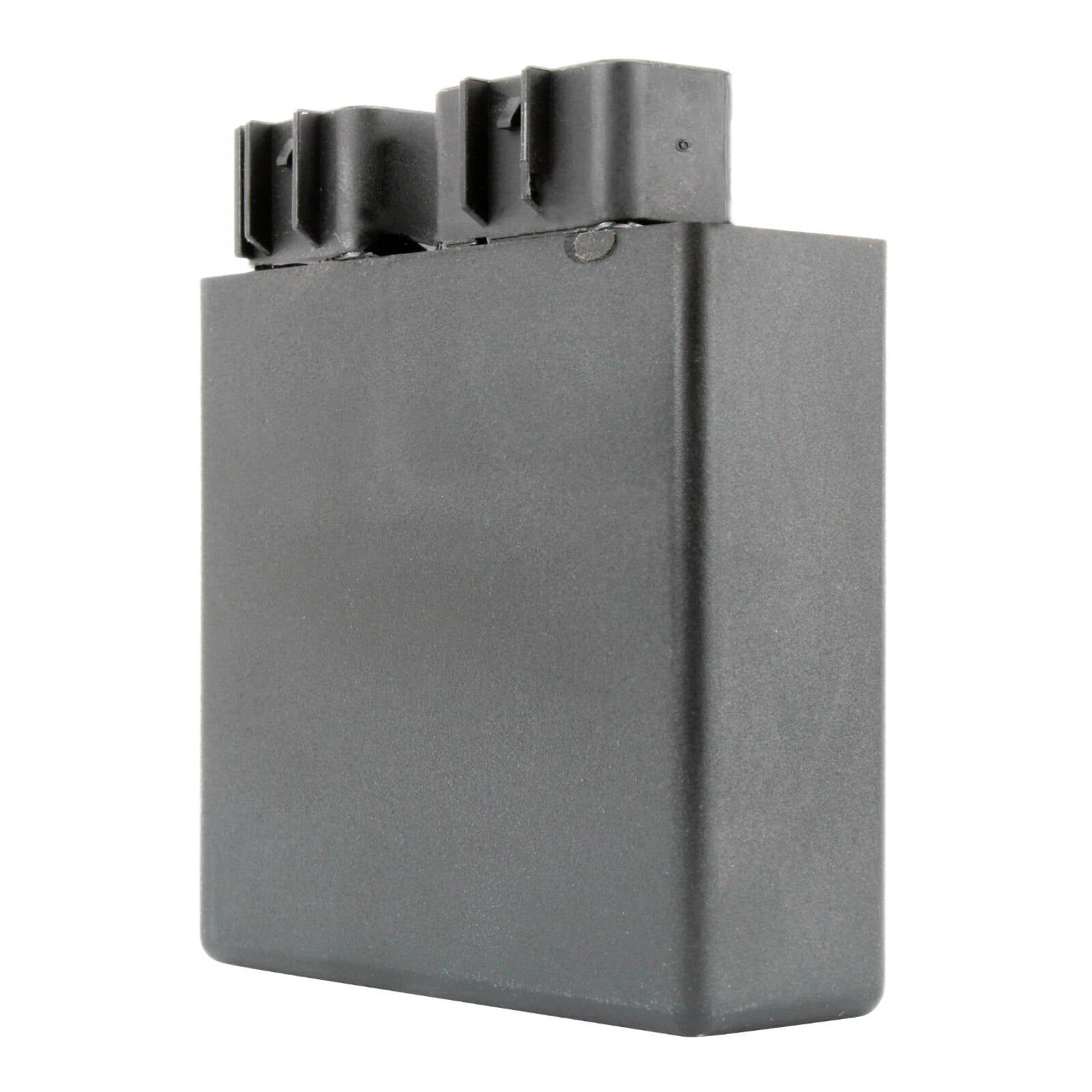

PeakRPM CDI Box Features:

• Provides optimal output for the vehicle.
• Higher-grade electronic components.
• Quality exceeds OEM equipment.

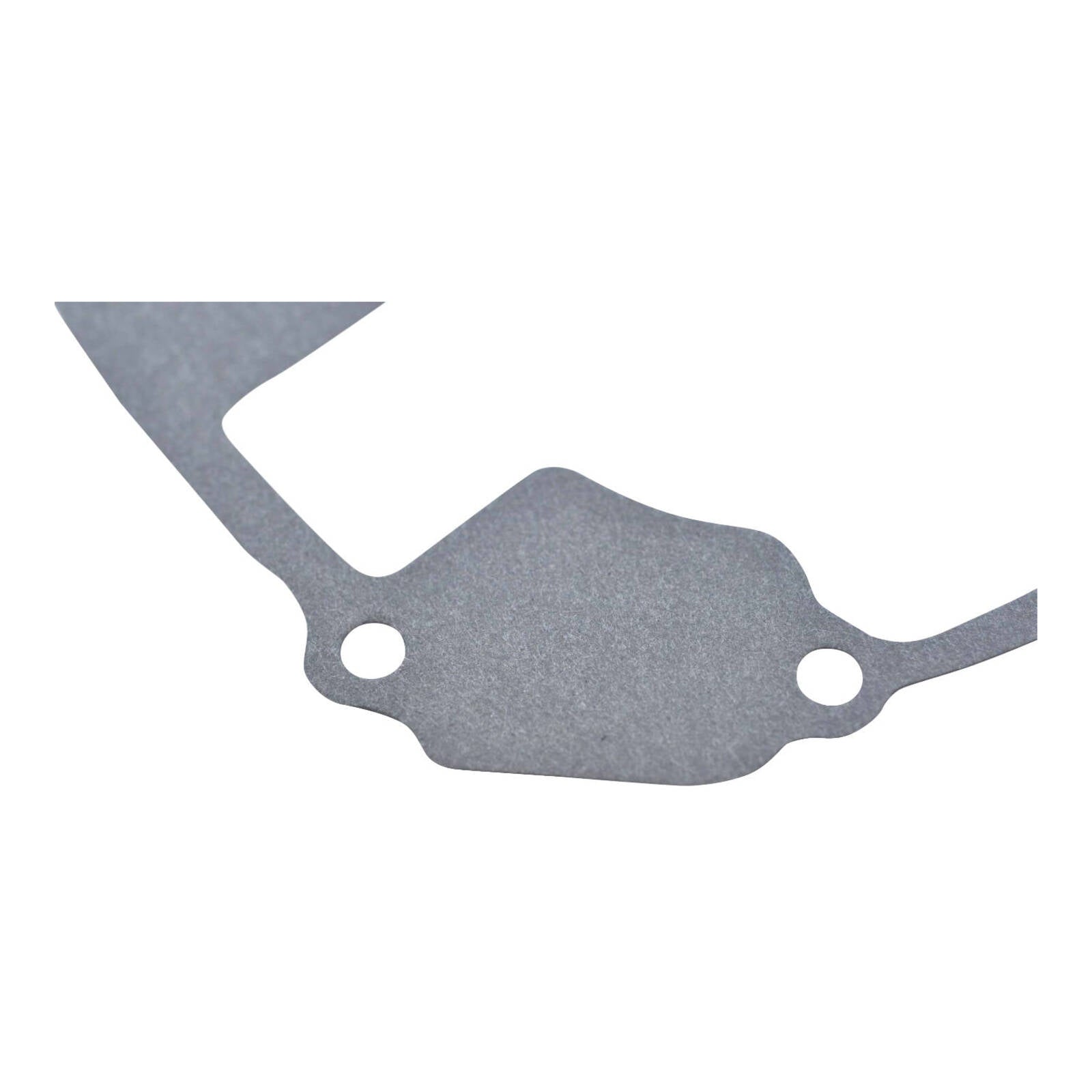

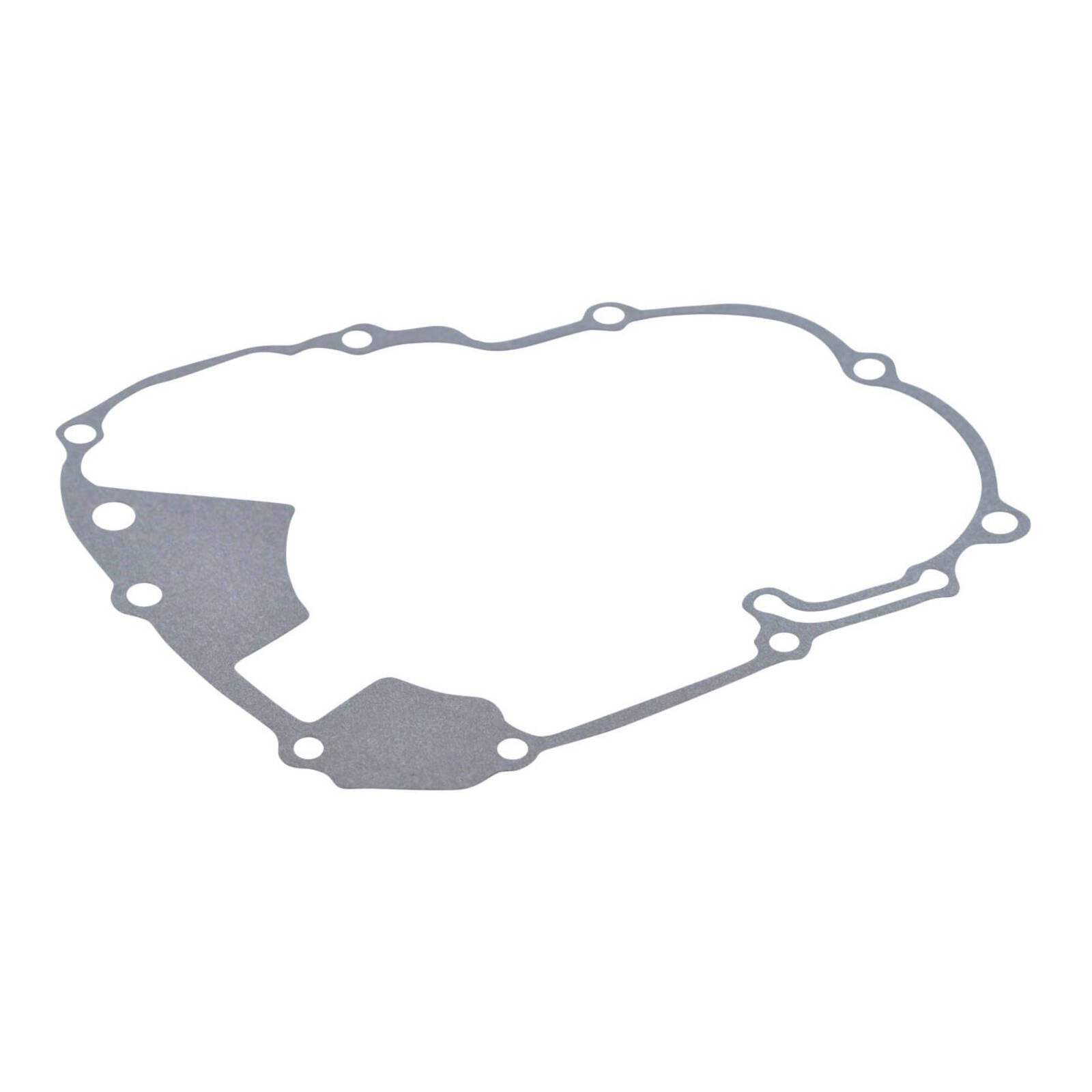

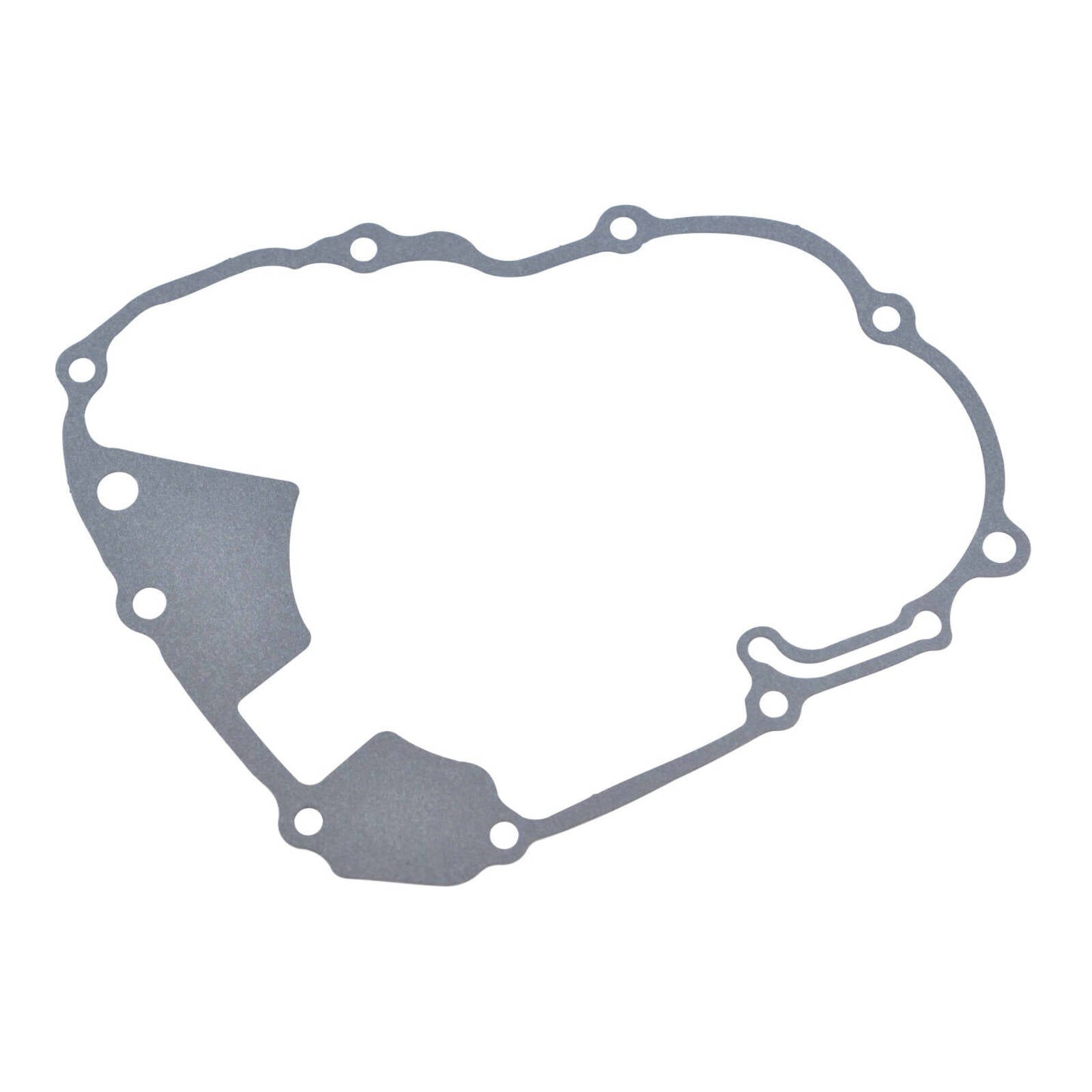

Gasket:

Brand new stator crankcase cover gasket.

Before Installing the New Stator:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on the stator and regulator rectifier.
• Check and repair any melted wiring.
• Use high-temperature dielectric grease on all connectors.

The stator may use a different wire colour code from the original. All wires are installed in the correct order; do not change any wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. Always use locking compound when bolting the stator in place. If the stator includes a pickup coil, ensure the air gap is correct during installation. We recommend setting it as close as possible, but no less than 0.010 inches.

Before Installing the New CDI Box:

The CDI may use a different wire colour code from the original. All wires are installed in the correct order; do not change any wiring configurations. This CDI is designed as a direct plug-in replacement and should be used as such.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Stator Dimensions:

• Interior diameter: 34 mm
• Exterior diameter: 92 mm
• Thickness: 15 mm
• Length of wires from stator to grommet: 75 mm
• Length of wires from grommet to plug: 900 mm
• Length of pickup coil wire to grommet: 80 mm

Stator Specifications:

• Number of wires: 8
• Number of plugs: 3
• Number of pins: 8
• Number of poles: 17

Wire-to-Wire Resistance:

• Alternator 3P: Between each Yellow = 0.4 ohms ±20%
• Alternator 1P: Yellow to ground = O.L.
• Pickup: Green to Blue = 250 ohms ±20%
• Source 1: Black/Red to Blue = 36 ohms ±20%
• Source 2: Blue to White = 7 ohms ±20%

CDI Box Dimensions:

• Height: 26 mm
• Length: 75 mm
• Width: 70 mm

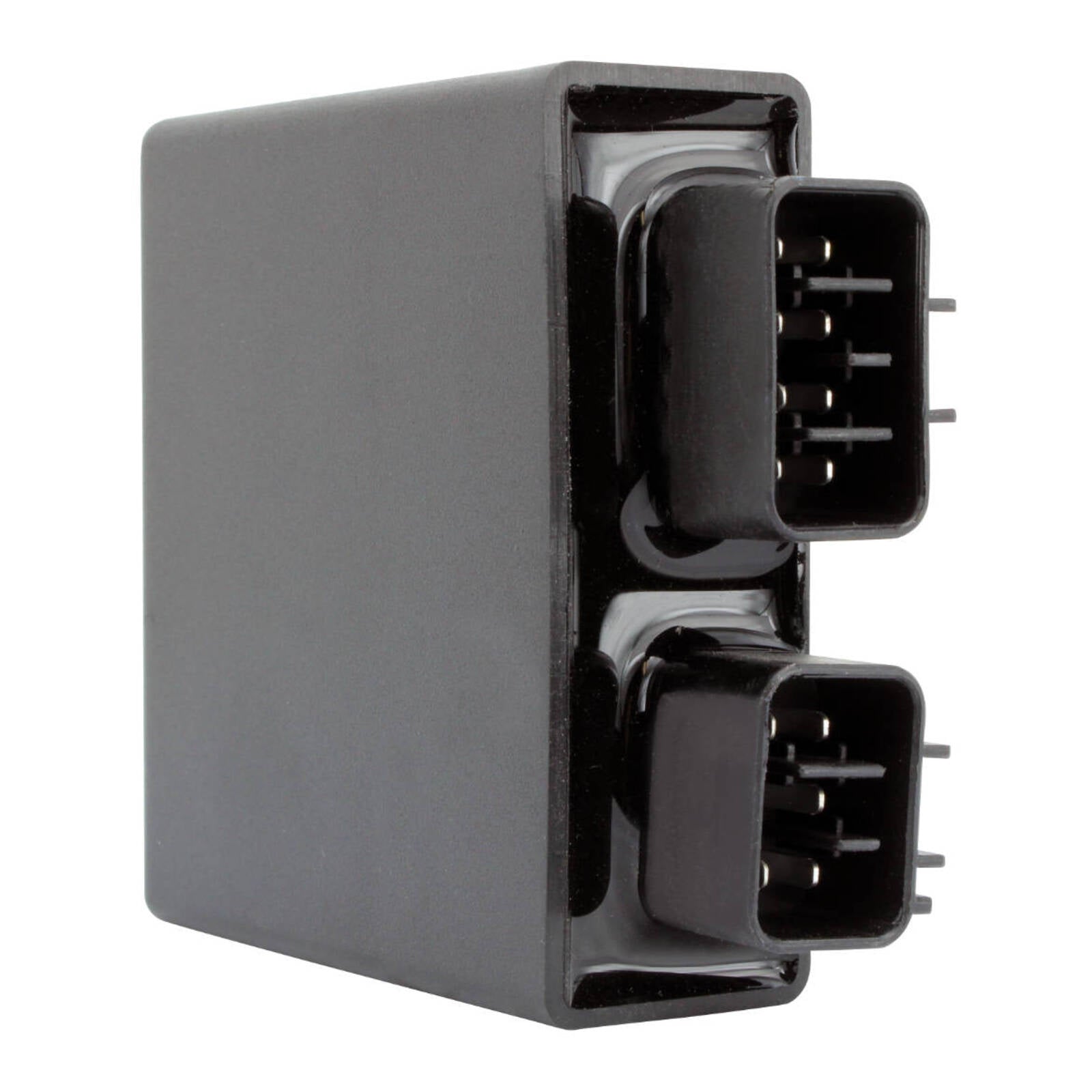

CDI Box Specifications:

• Number of plugs: 2
• Number of pins: 14

Please Note: The only reliable way to test the CDI box is to swap it with another known-good unit from the same year, make and model. We recommend ruling out all other possible causes before replacing the CDI box.
