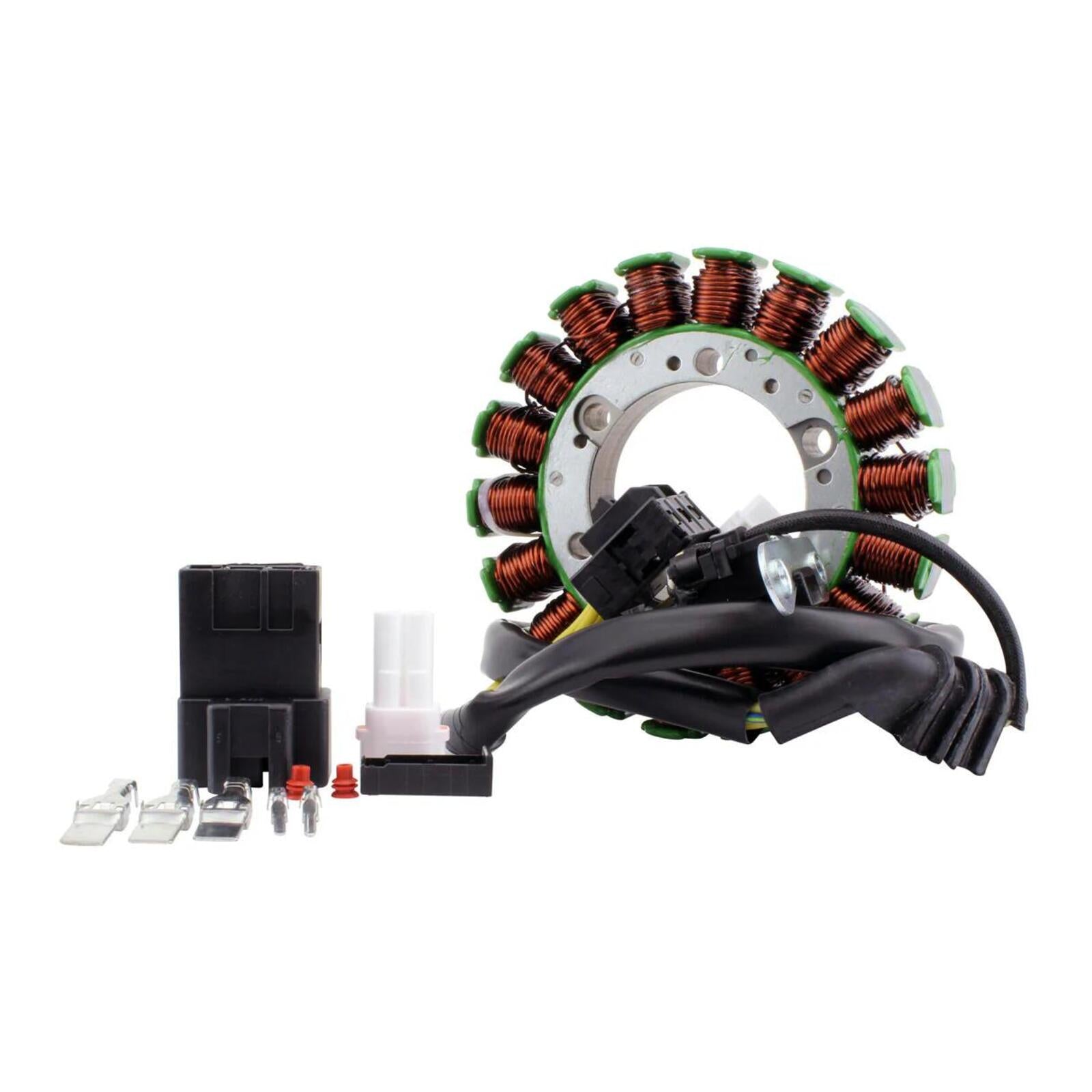

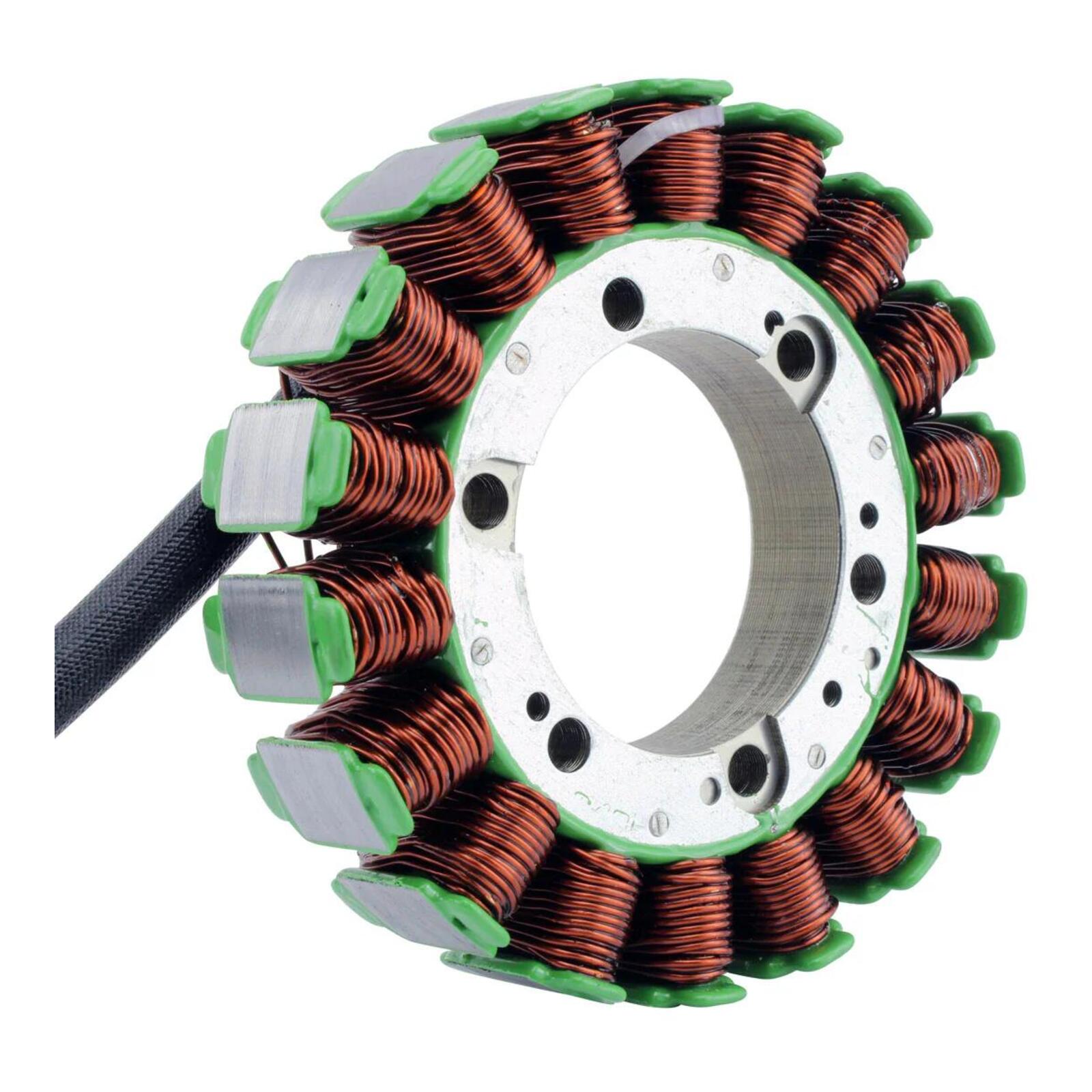

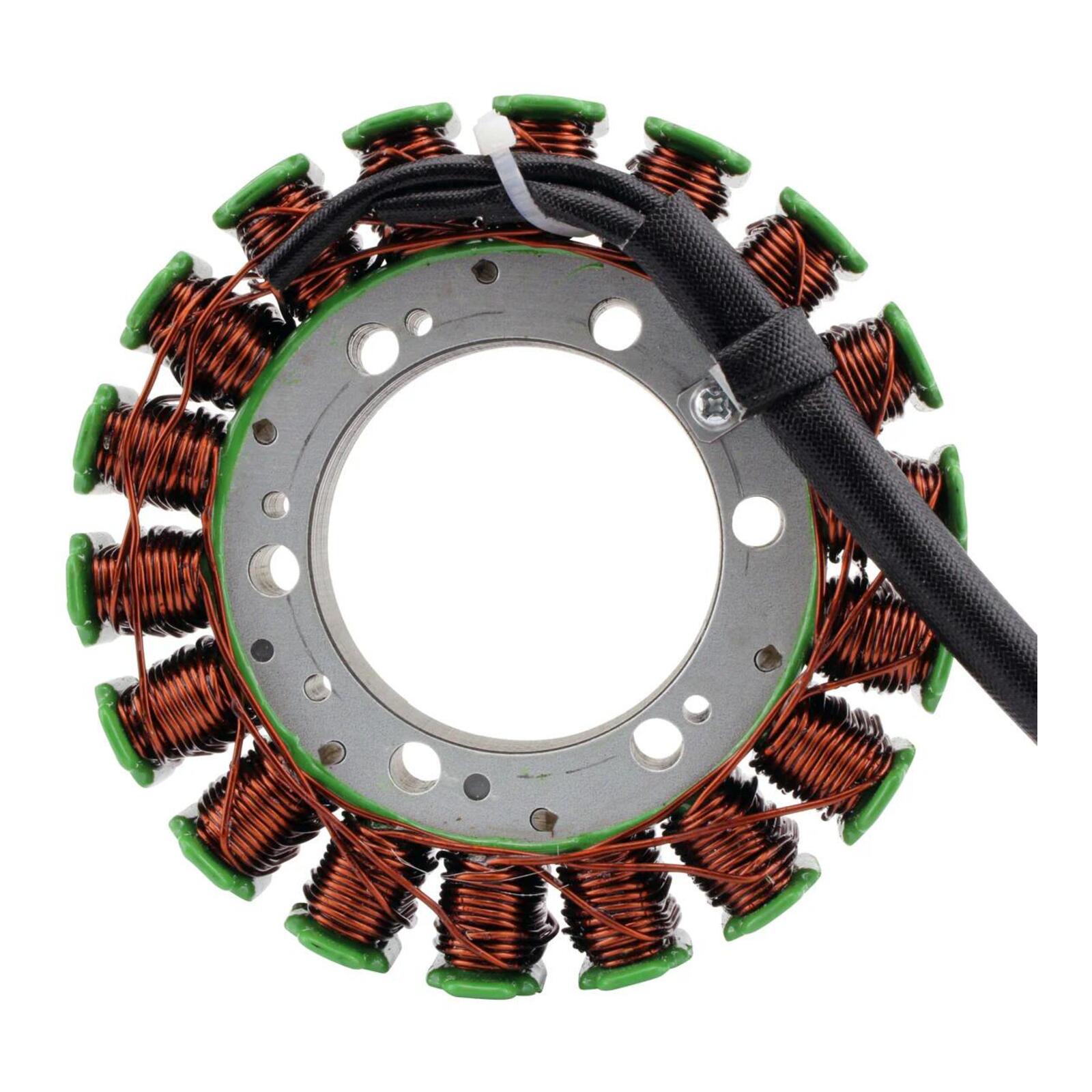

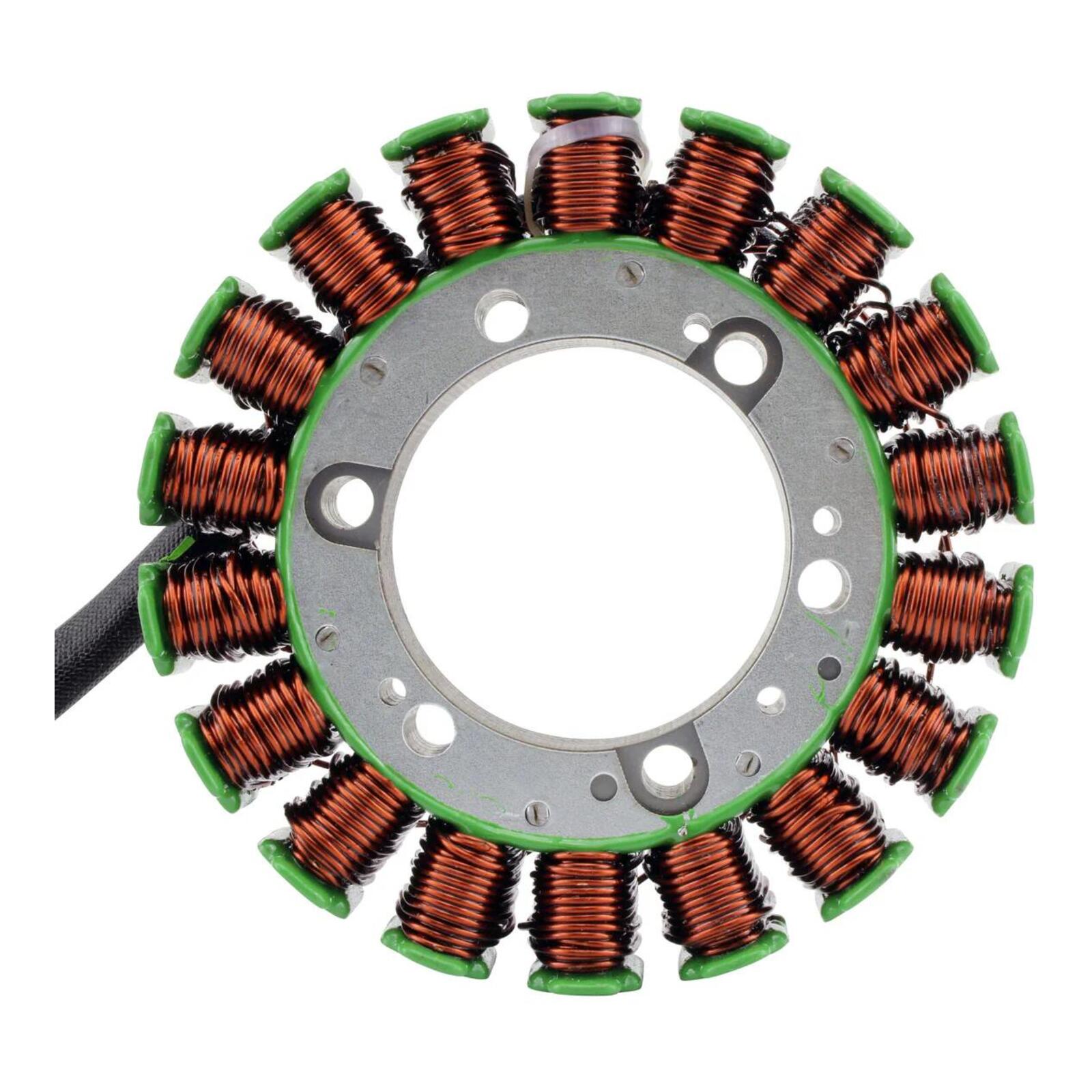

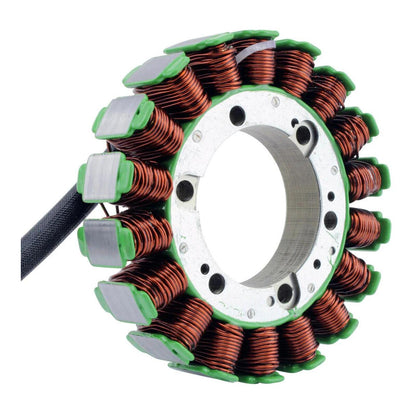

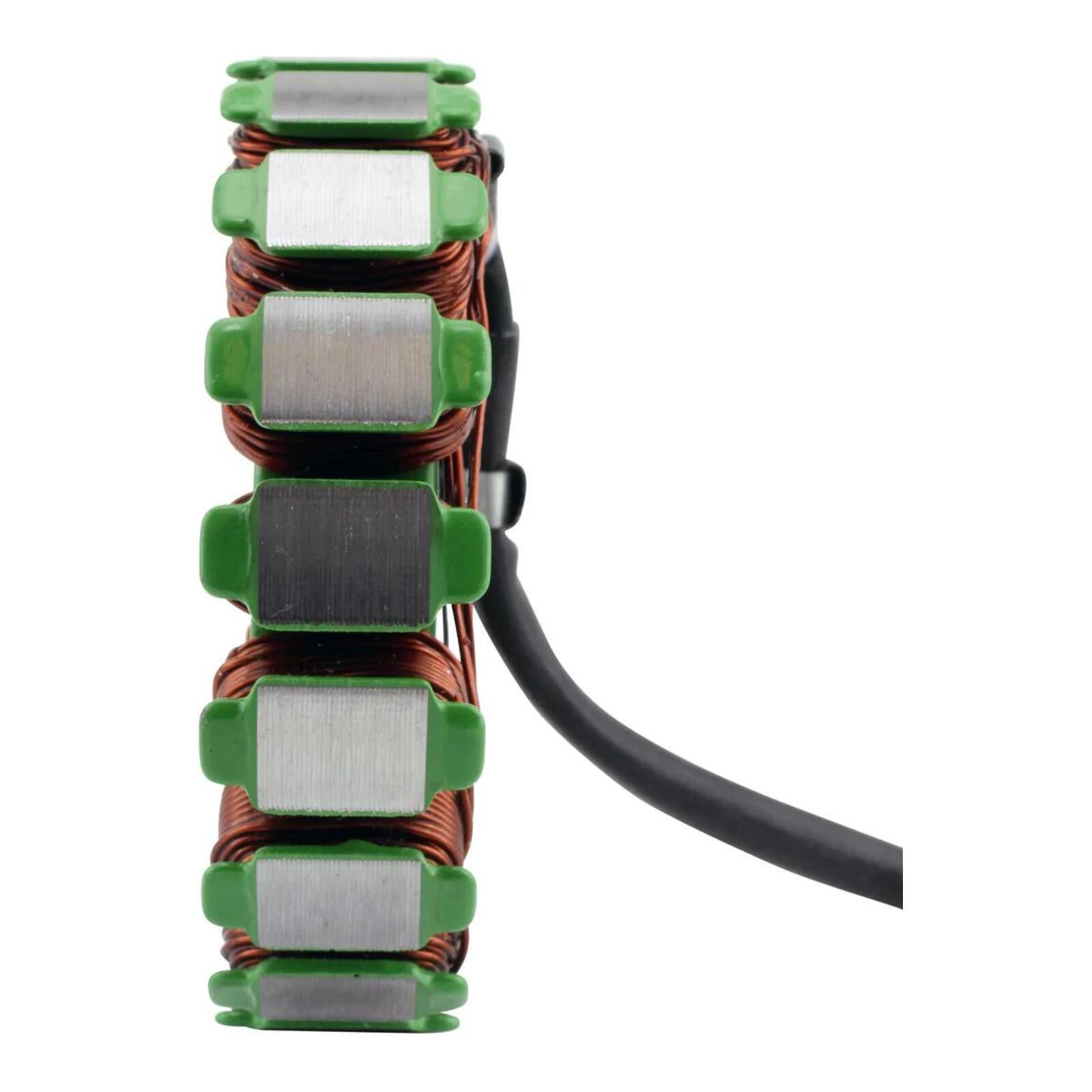

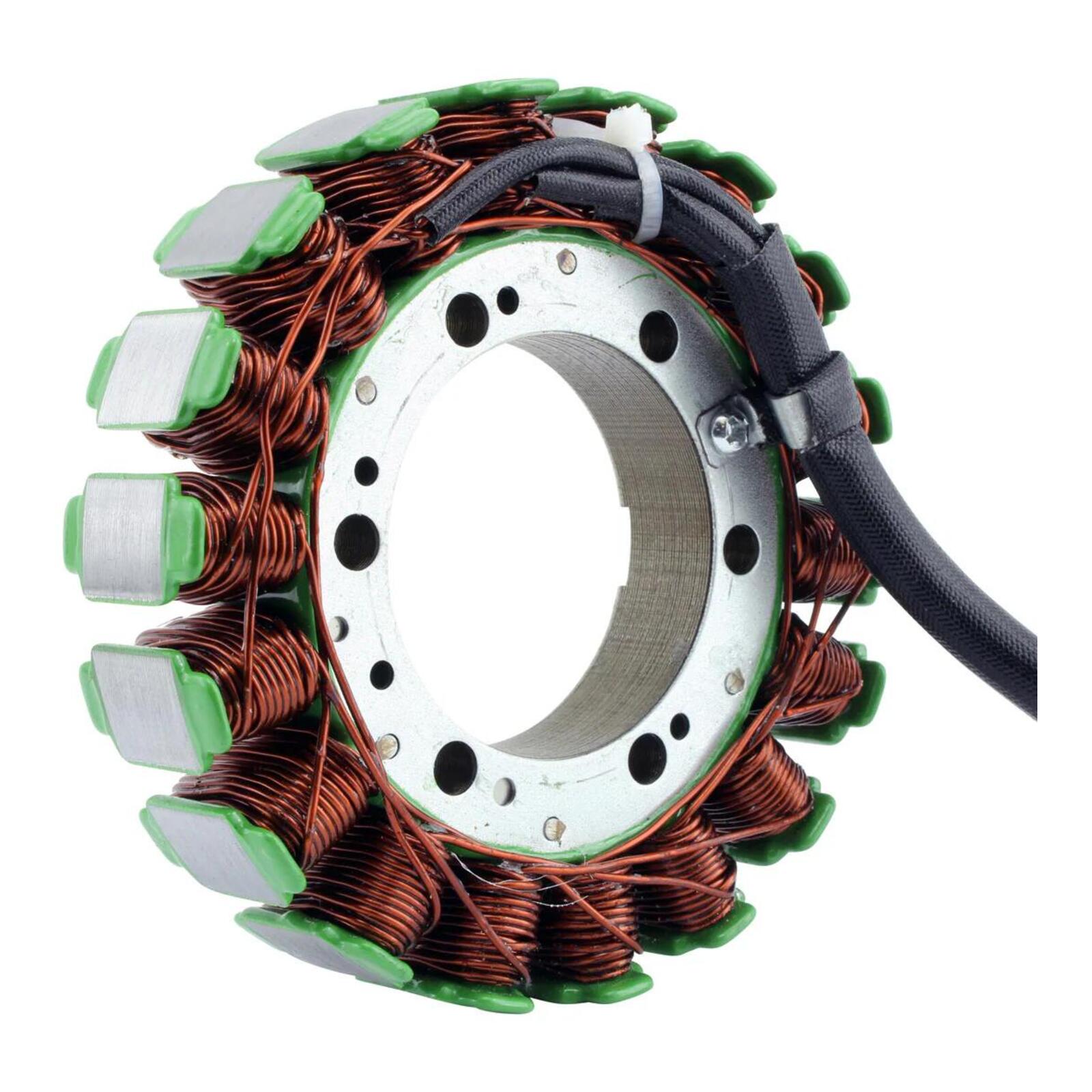

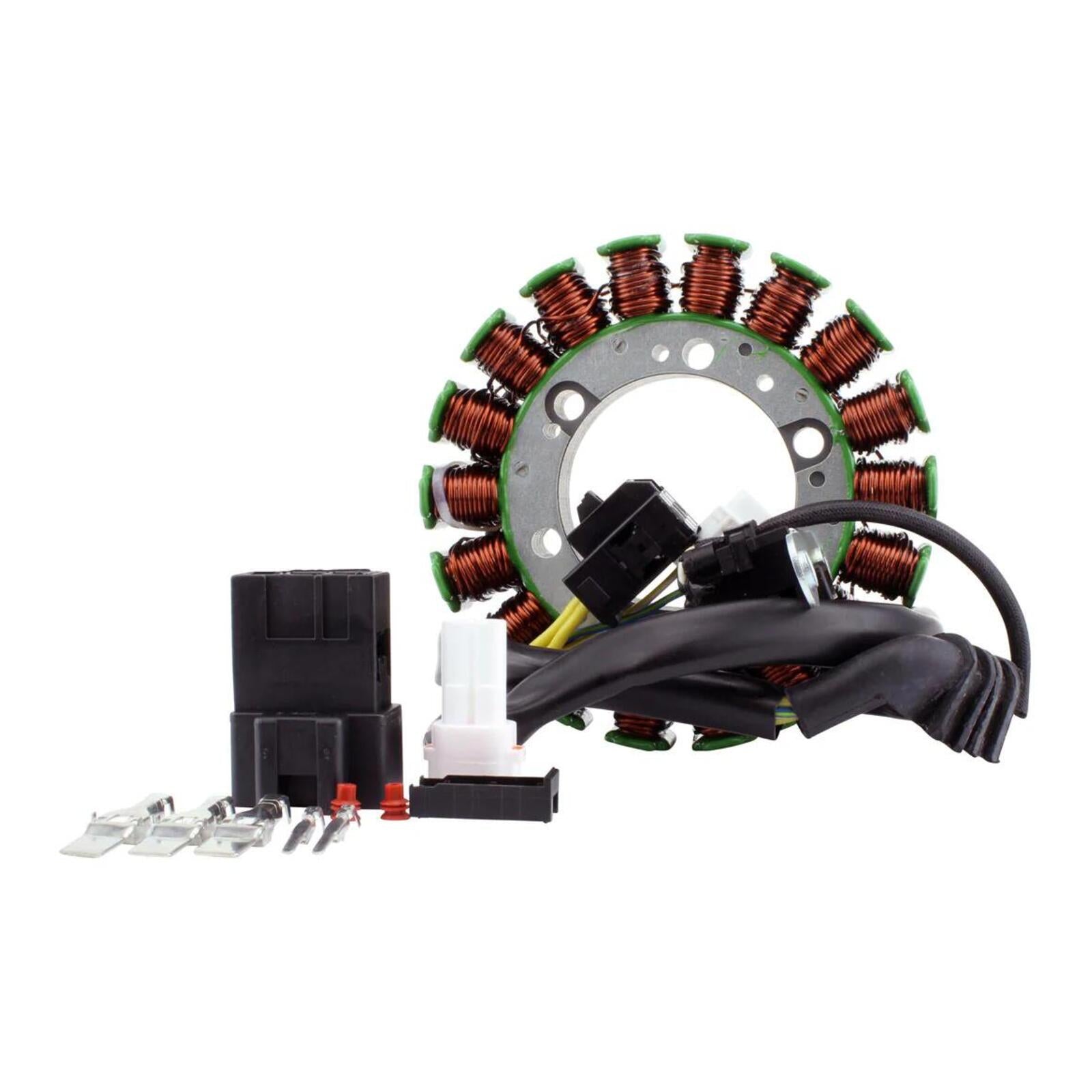

RM Stator Generator Stator Aprilia Models (RMS010-106004)
Low stock
Regular price
$359.99
Sale price
$359.99
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Want next day delivery? Be quick!
Question about this product?
We're happy to help.
Direct replacement for your original unit.
Features:
- Plug-and-play direct fit for easy installation.

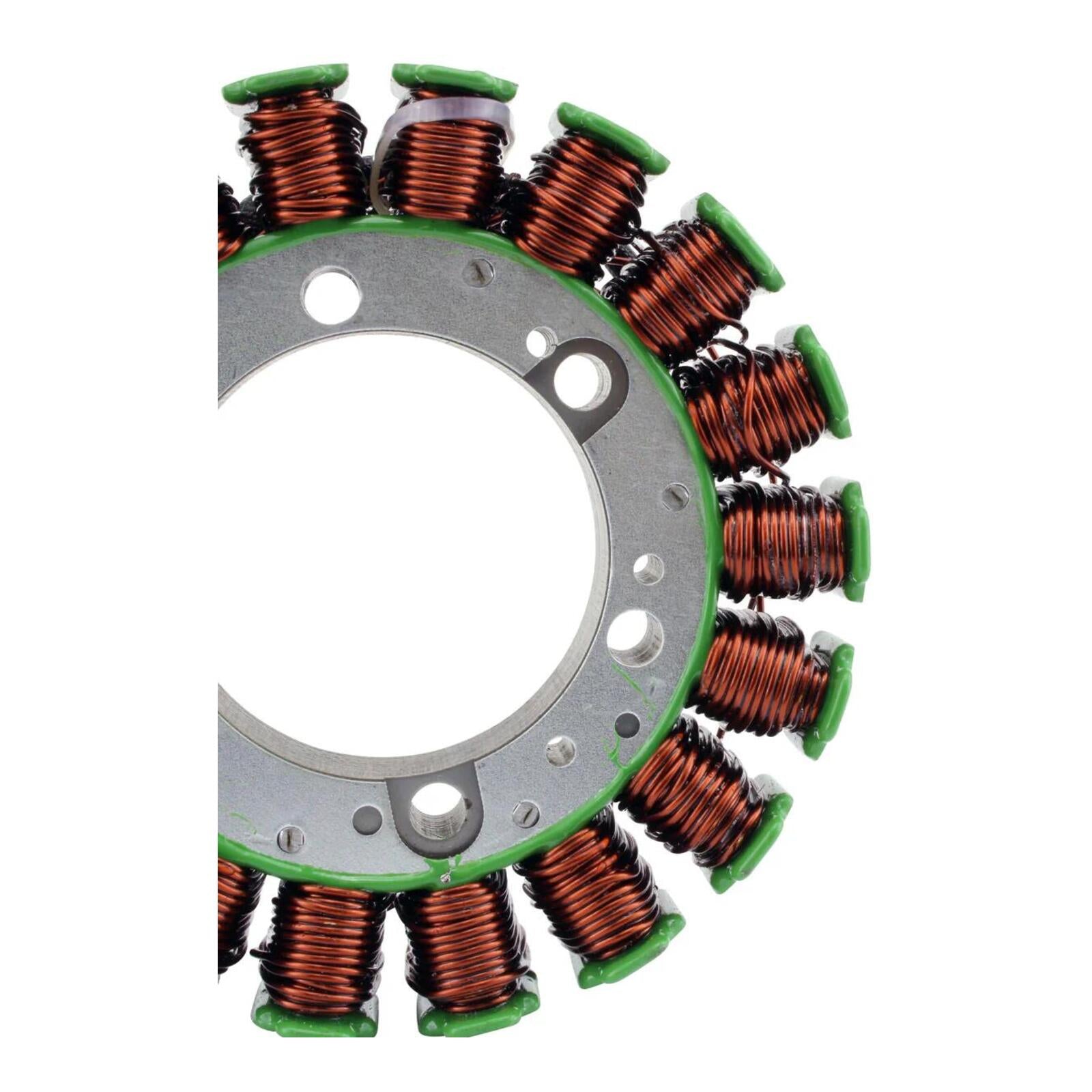

- Manufactured using high-grade lamination materials.
- Premium copper windings resistant to temperatures up to 200°C.

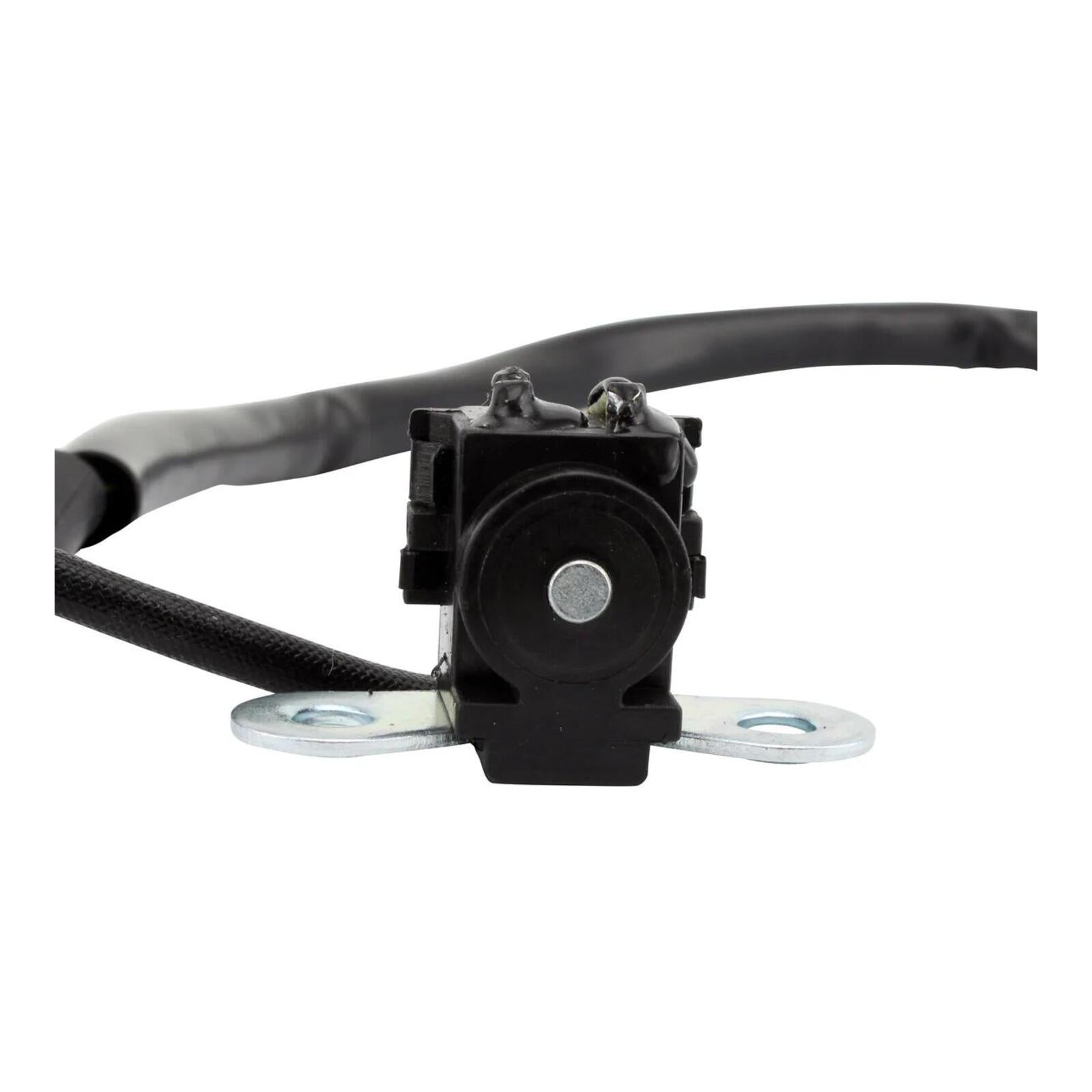

- Pickup pulsar coil included.

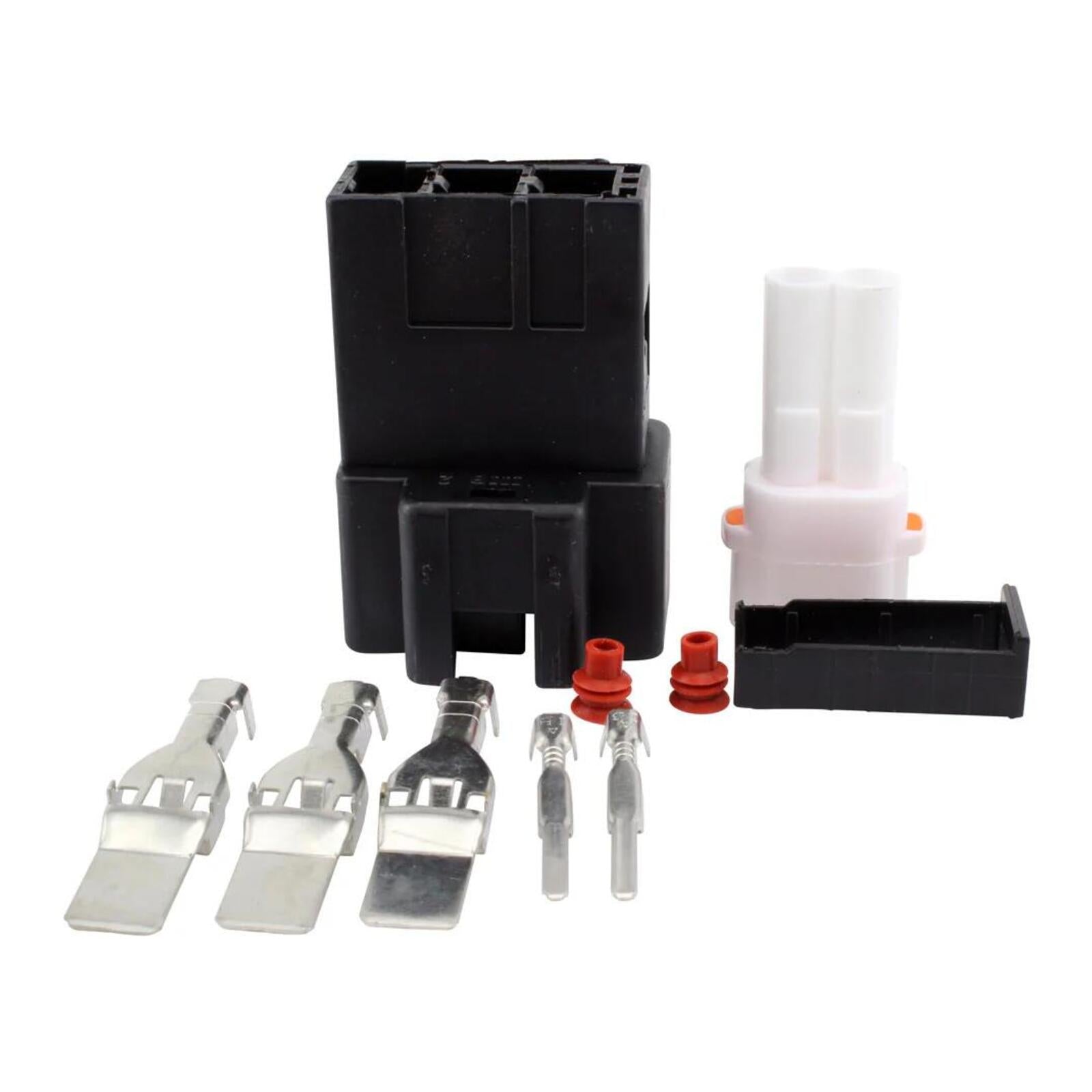

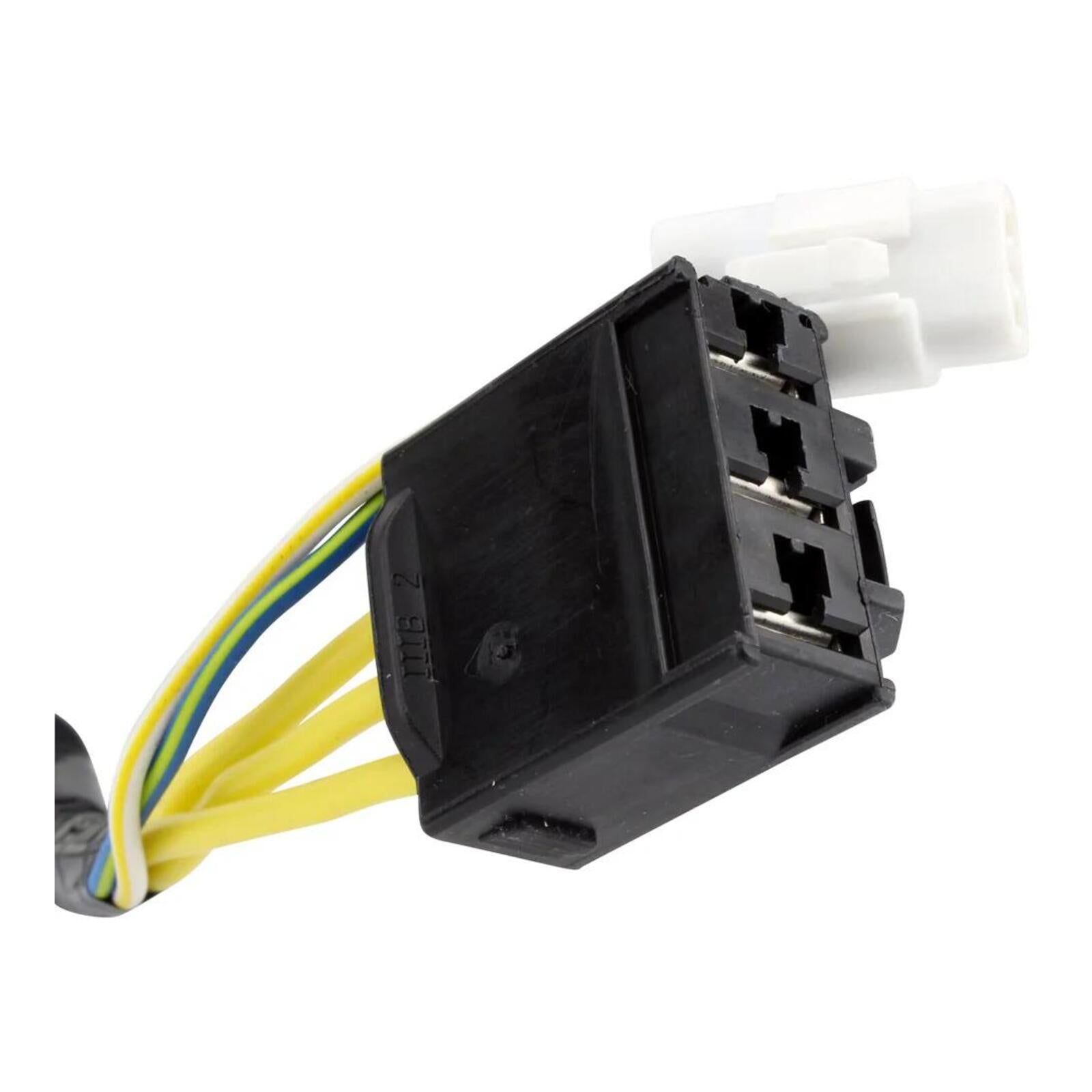

- Connectors included.

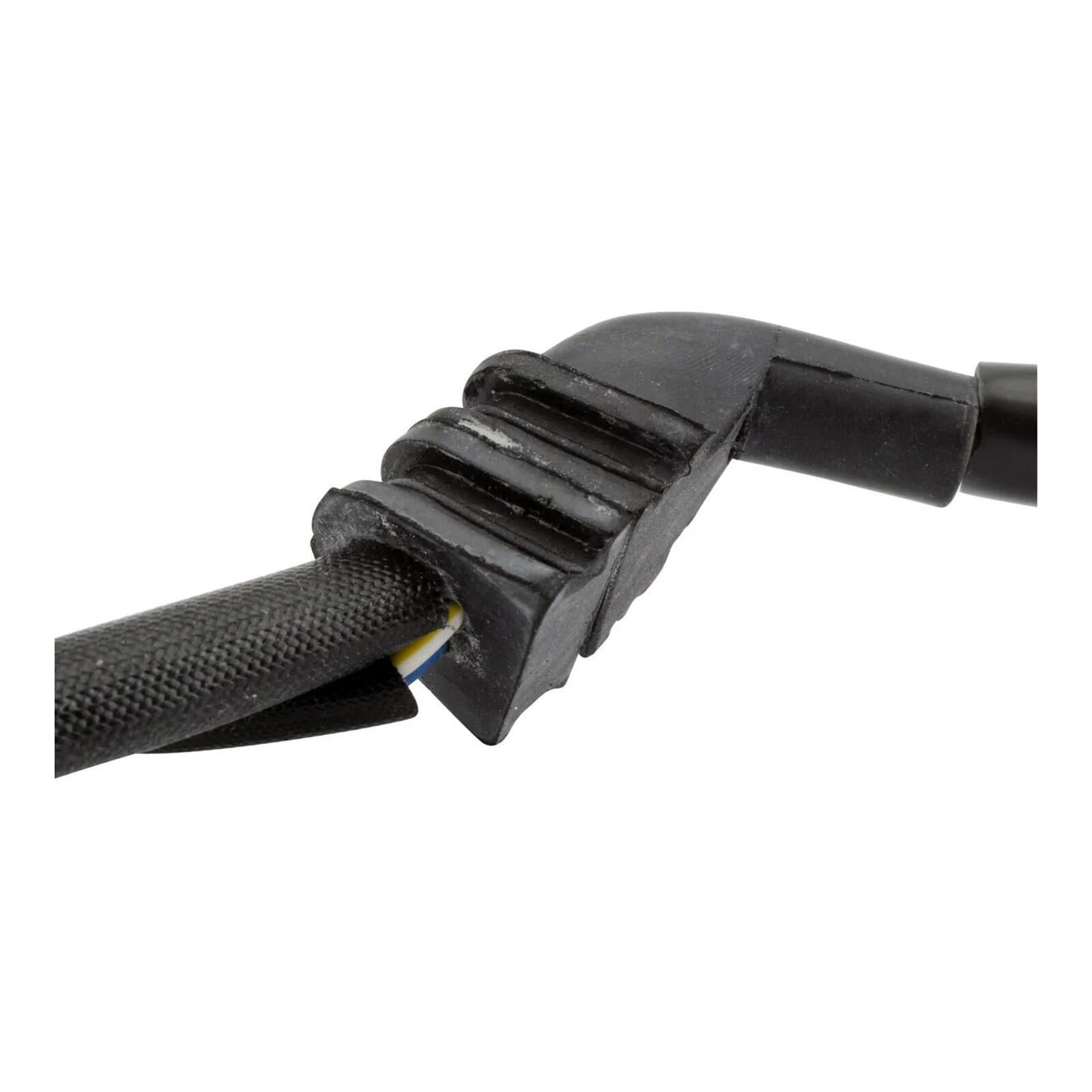

- Rubber grommet included.
- All units are tested before shipping.
Specifications:
- Interior Diameter: 54 mm
- Exterior Diameter: 118 mm
- Thickness: 19 mm
- Stator Wire Length (Stator to Grommet): 110 mm
- Stator Wire Length (Grommet to Plug): 520 mm
- Pickup Coil Wire Length (to Grommet): 10 mm
- Number of Wires: 5
- Number of Plugs: 2
- Number of Pins: 5
- Number of Poles: 18
Resistance Values:
- Alternator Resistance: Between each yellow wire = 0.4 Ω ±20%
- Pickup Coil Resistance: Yellow/White to Yellow/Blue = 272 Ω ±20%
-
