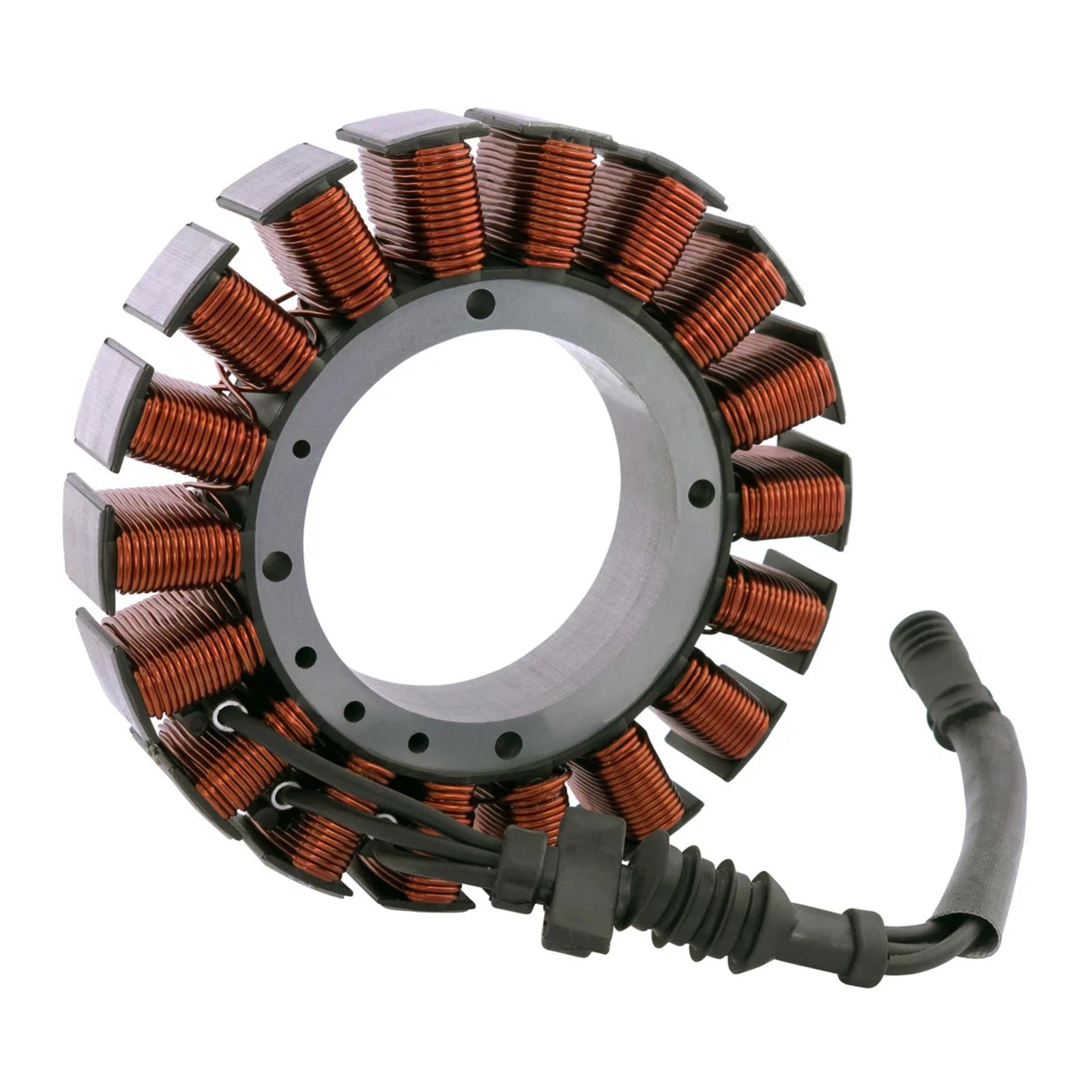

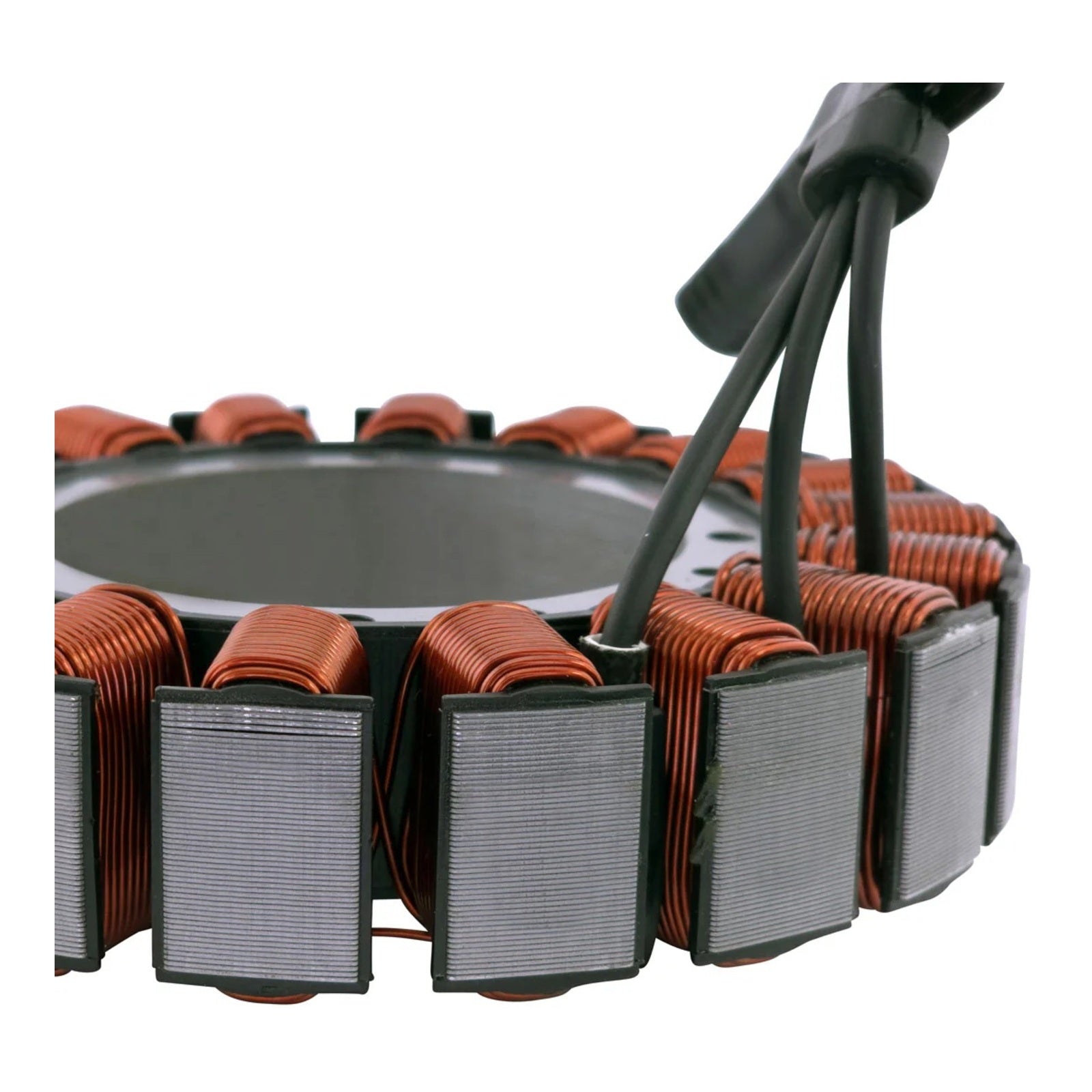

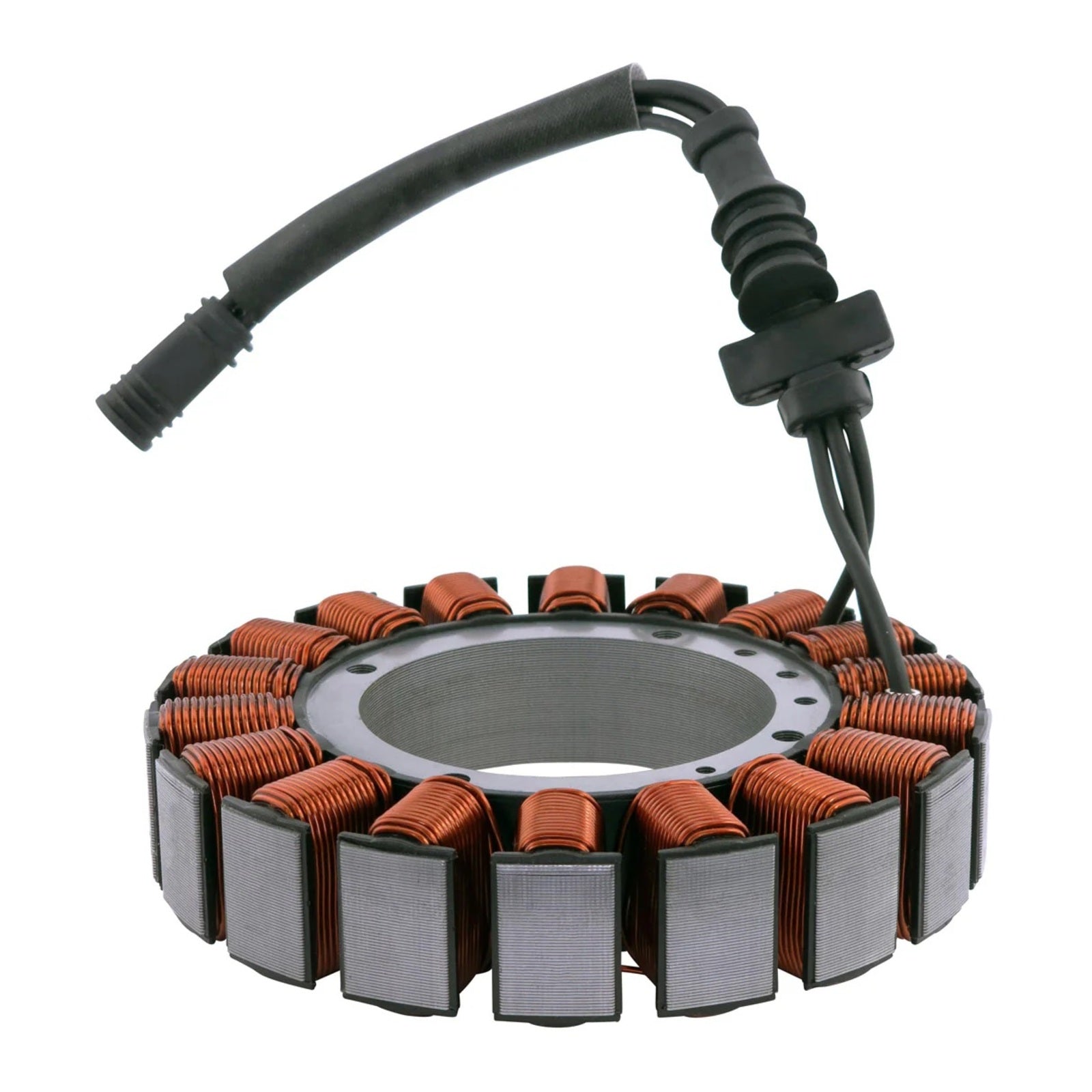

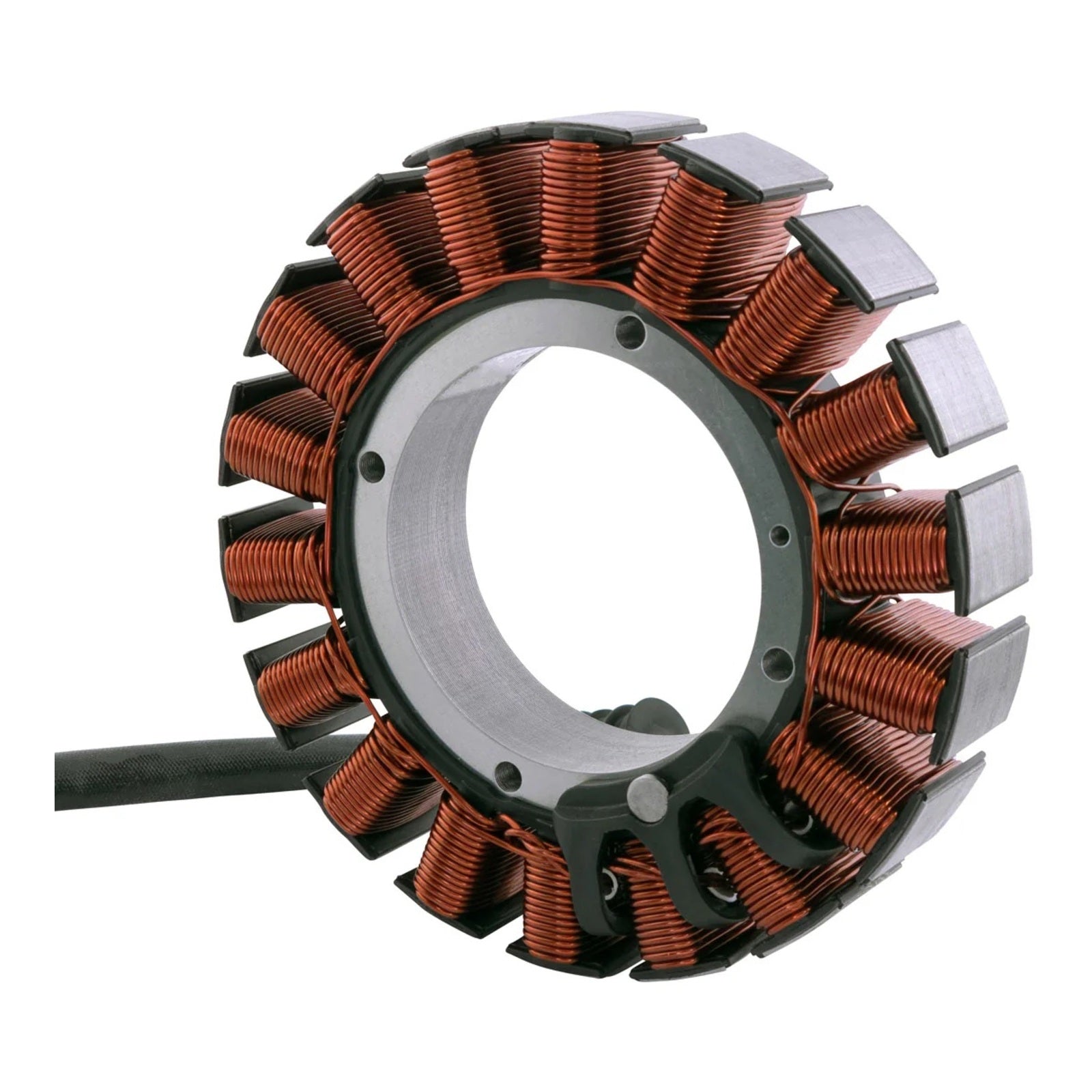

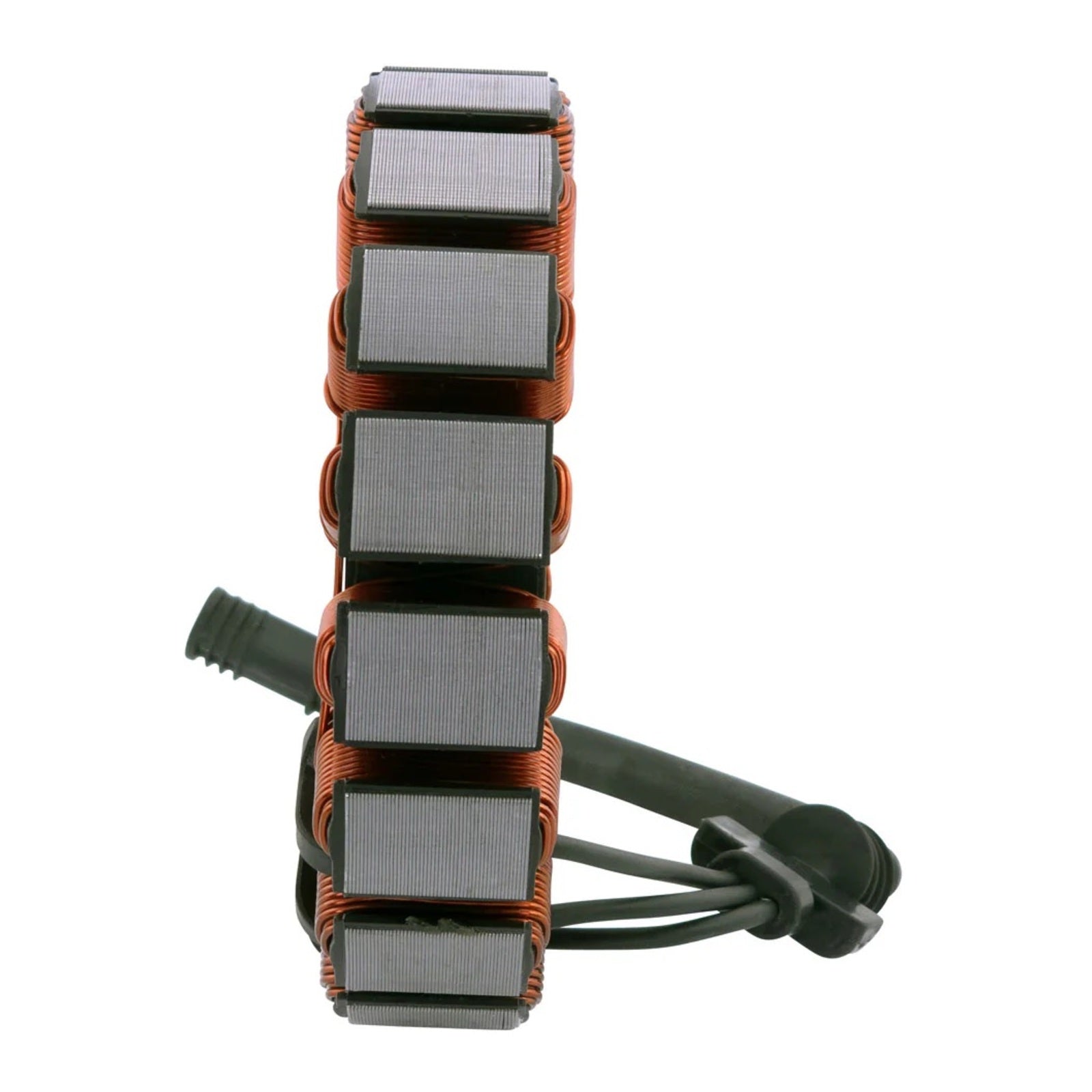

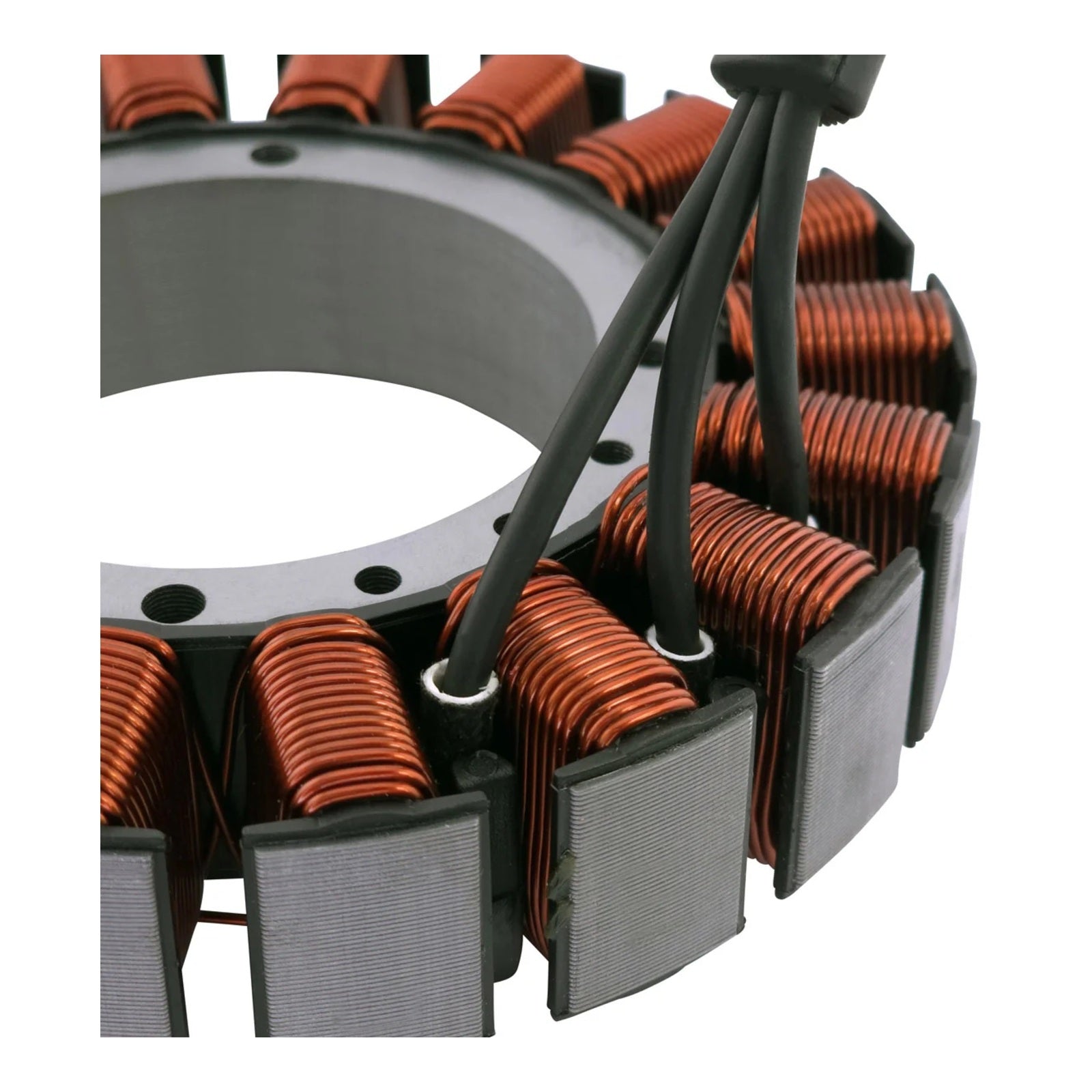

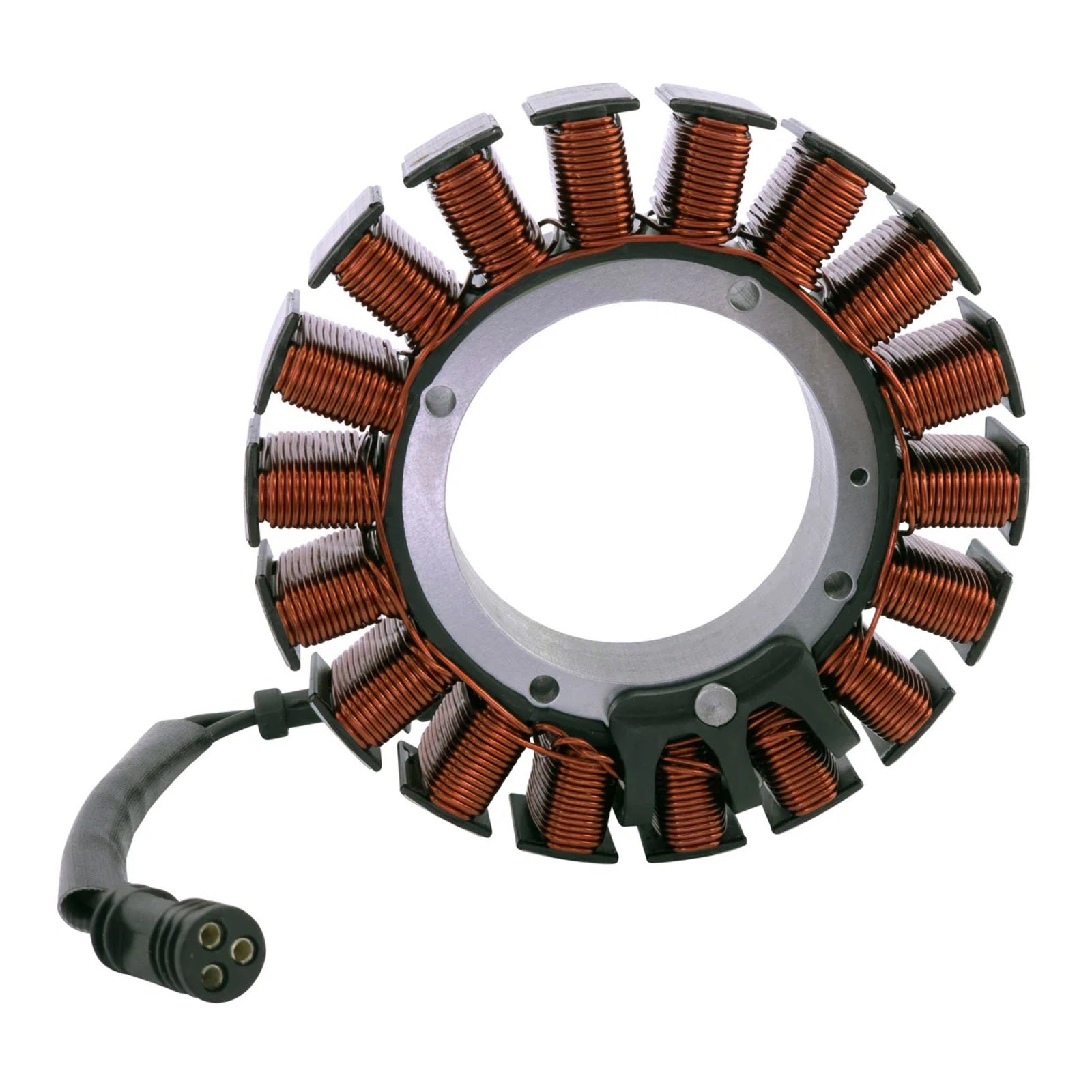

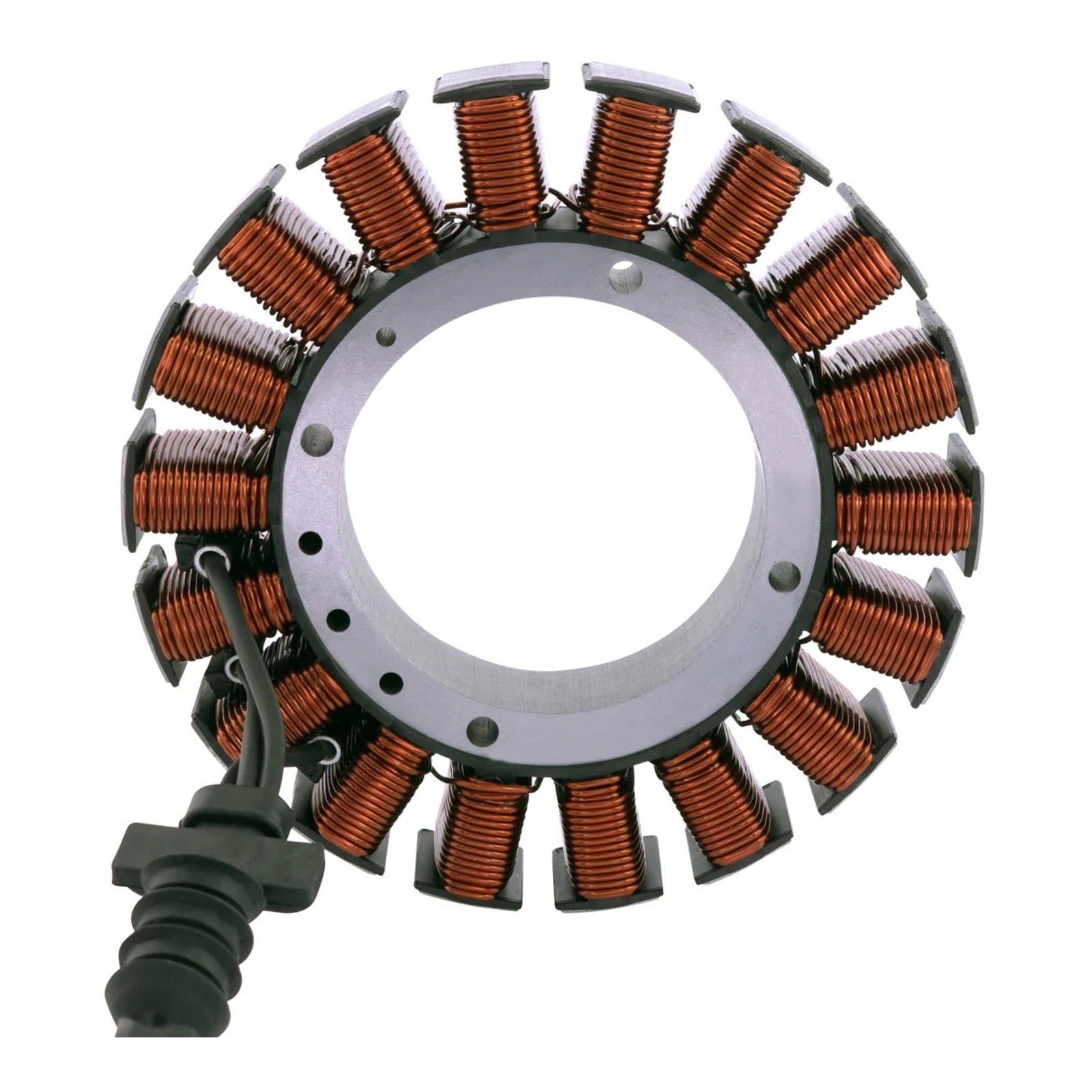

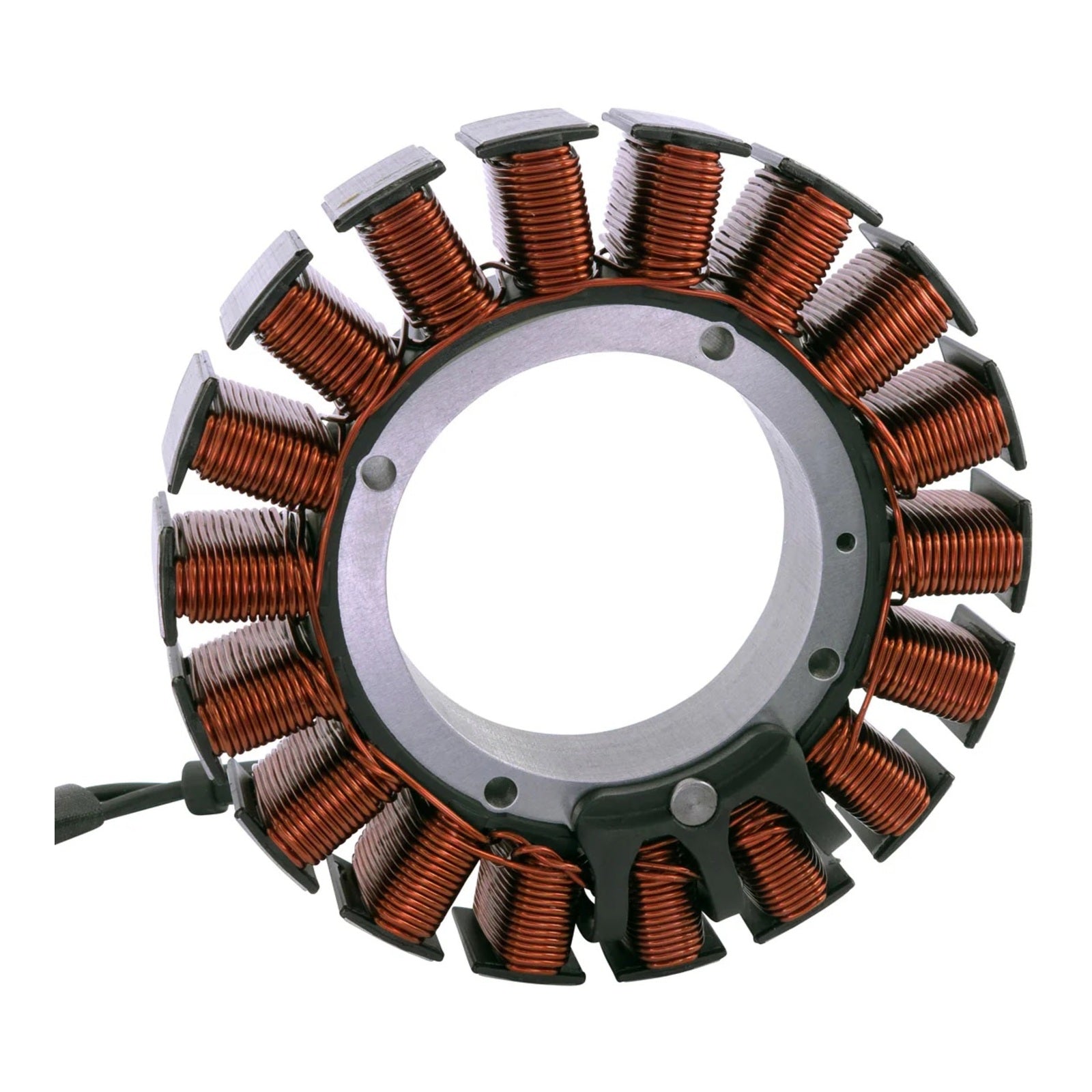

Stator Assorted Harley Davidson Models (Refer to Fitments) (RMS010-108654)

Brand new aftermarket stator.

Features:

• Direct replacement for your original unit.
• Plug-and-play, direct fit, easy installation.
• Made with the highest grade lamination materials.
• Premium copper winding, resistant up to 200°C.
• Connectors included.

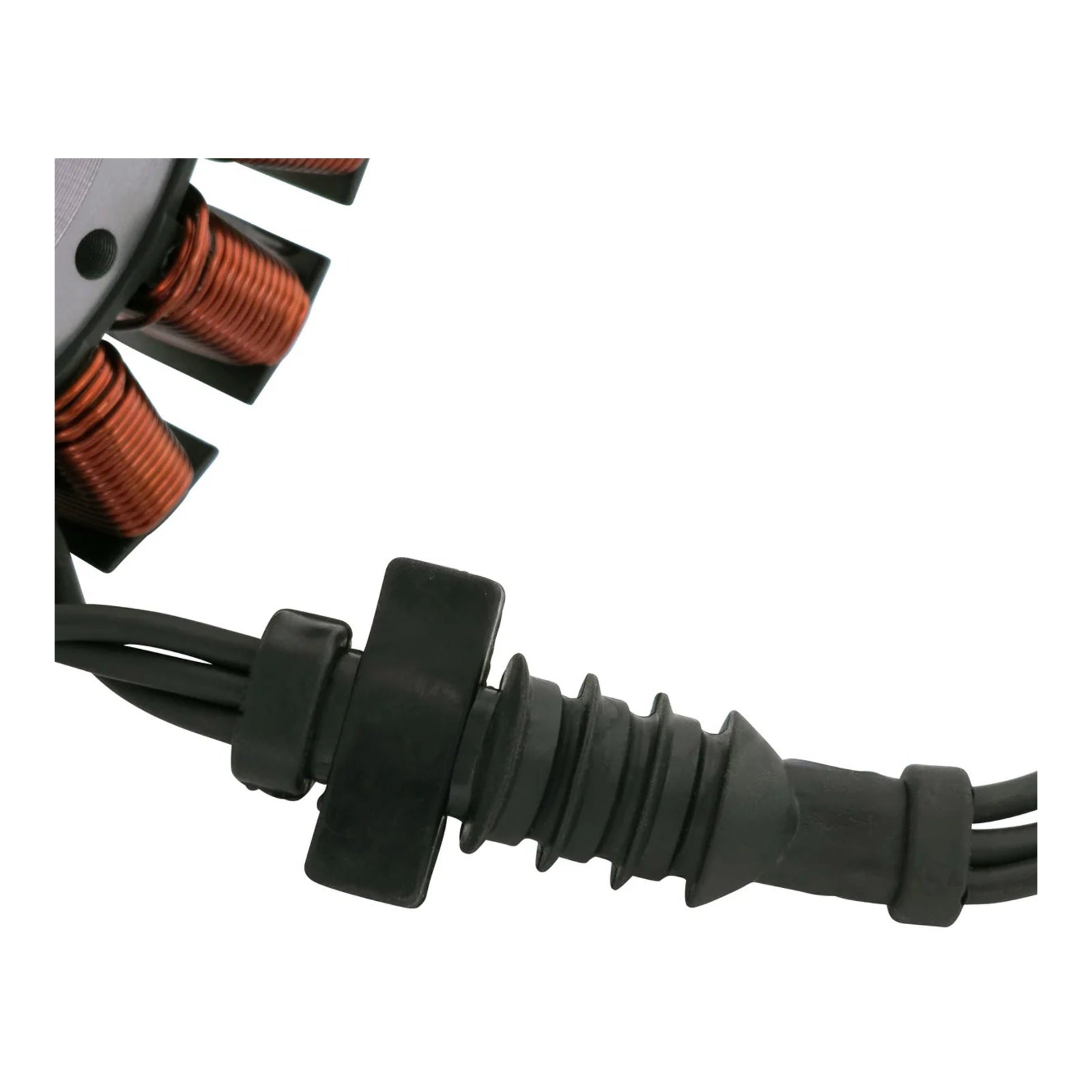

• Rubber grommet included.
• All products are fully tested before shipping.

Specifications:

Dimensions:

• Interior diameter: 71 mm
• Exterior diameter: 144 mm
• Thickness: 24 mm
• Length of wires (stator ? grommet): 40 mm
• Length of wires (grommet ? plug): 130 mm

Other specifications:

• Number of wires: 3

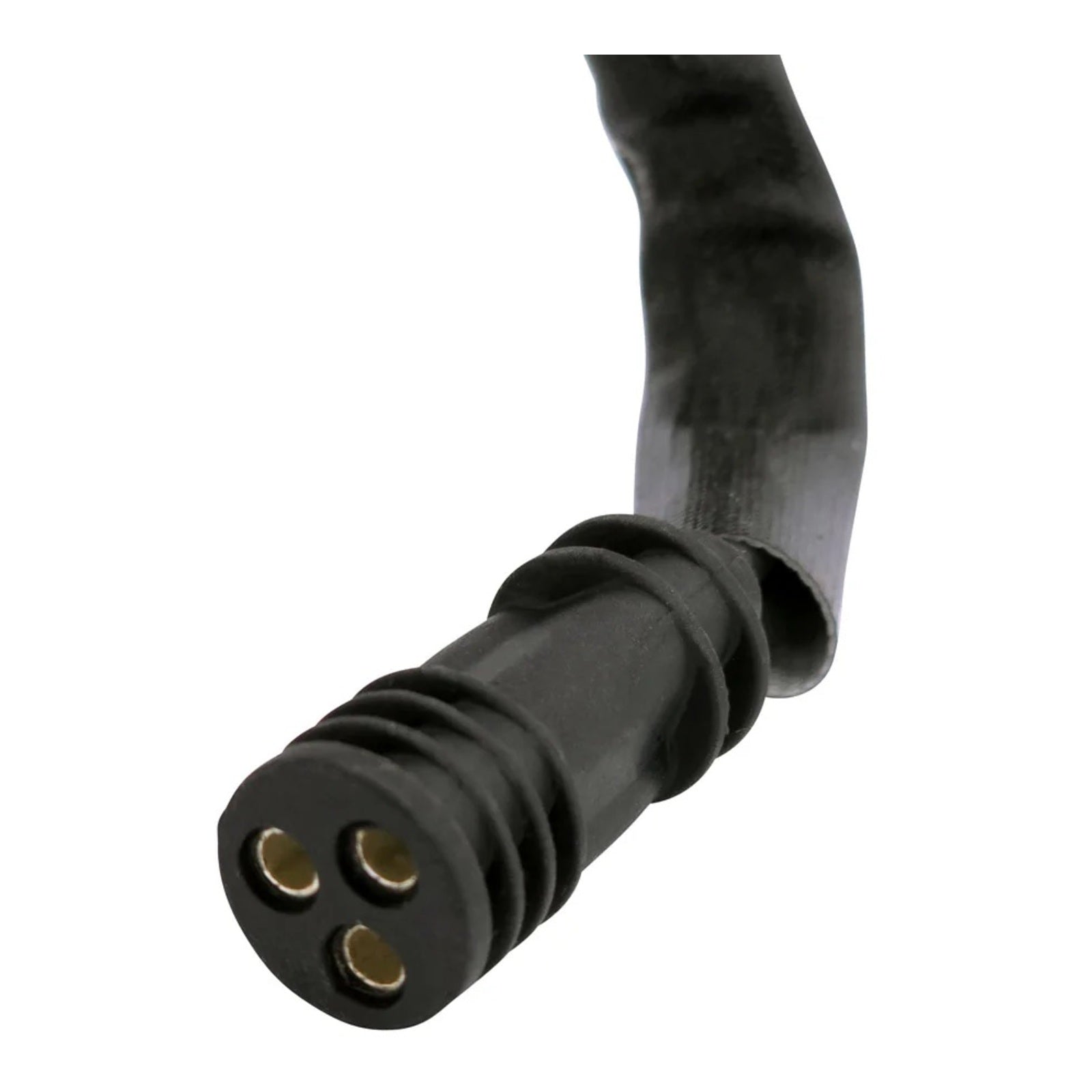

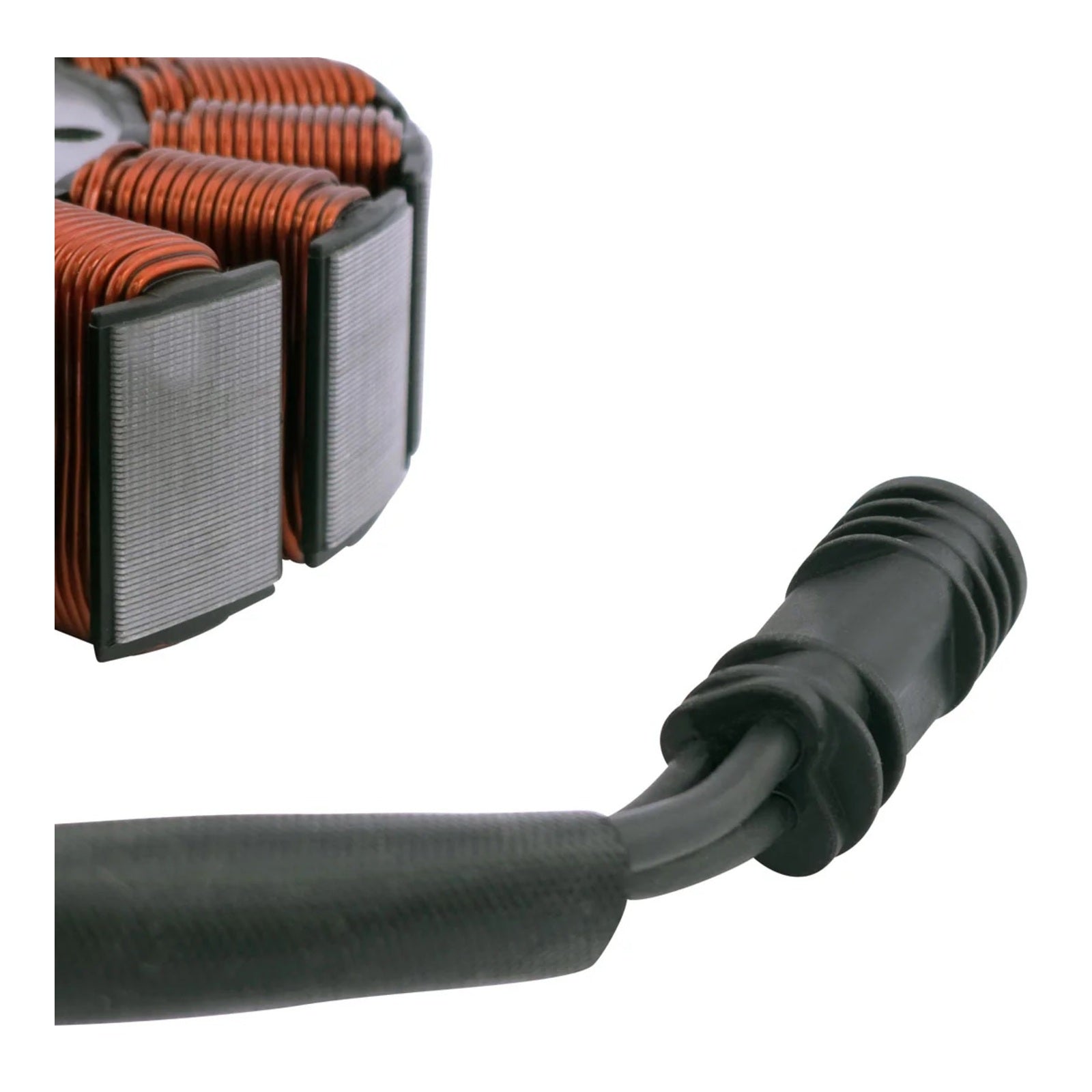

• Number of plugs: 1
• Number of pins: 3
• Number of poles: 18

Wire-to-wire resistance:

• Alternator: Black to Black = 0.6 O ±20%
• Alternator: Black to Ground = O.L (Open Loop)

Brand new aftermarket stator.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connectors included.
• Rubber grommet included.
• All products shipped are tested.

Specifications:

Dimensions

• Interior diameter: 71 mm
• Exterior diameter: 144 mm
• Thickness: 24 mm
• Length of wires stator to grommet: 40 mm
• Length of wires grommet to plug: 130 mm

Other specifications

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Number of poles: 18

Wire-to-wire resistance

• Alternator: Black to Black = 0.6 ohms +/-20%
• Alternator: Black to ground = O.L
