Stator Kawasaki KLF220 Bayou '88-'95 (RM01318)

Low stock
$479.99
$479.99
Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

Direct replacement for your original unit.

  • Plug-and-play, direct fit for easy installation.
  • Constructed with the highest grade lamination materials.
  • Equipped with highest grade copper windings, resistant to 200 degrees Celsius.

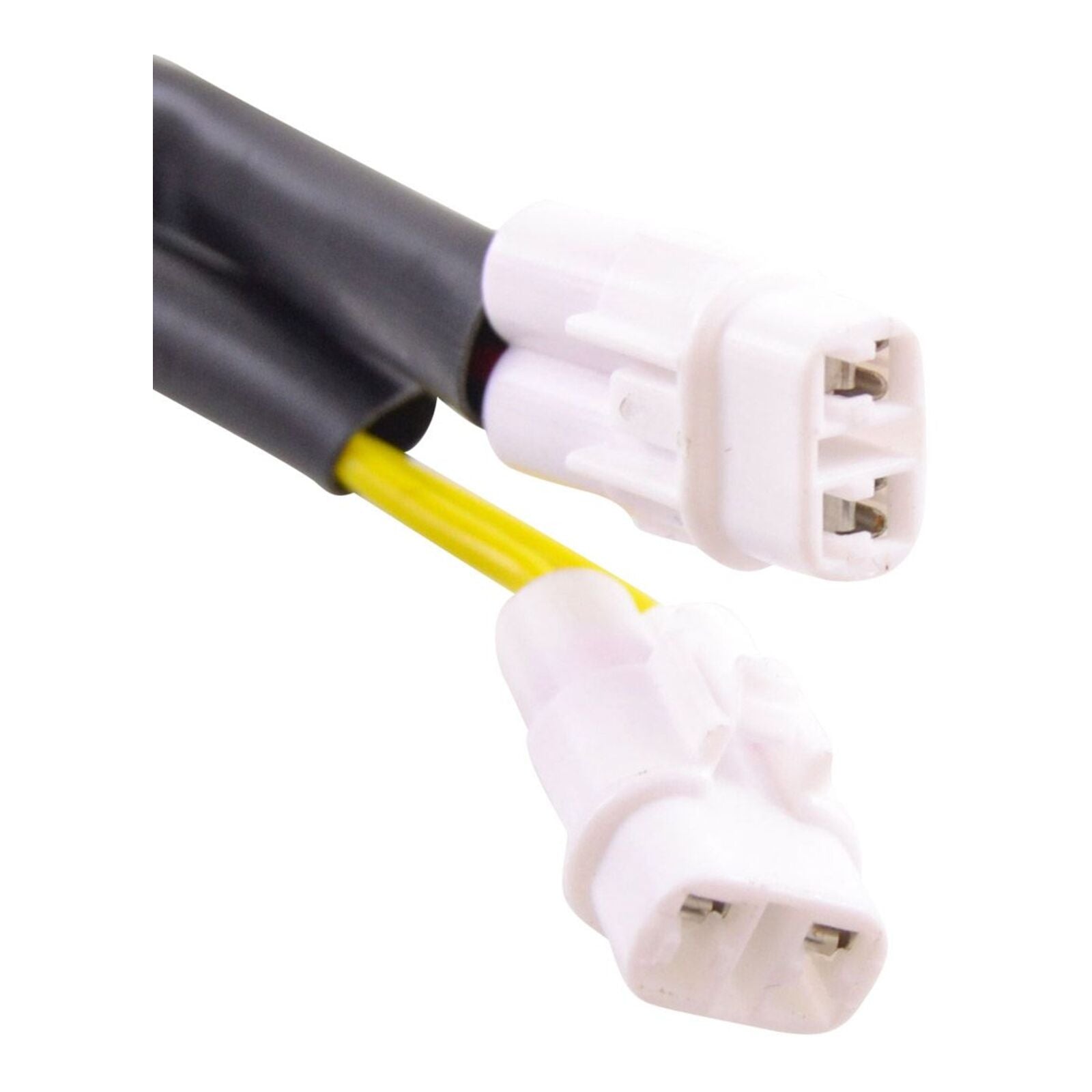

  • Includes connector.
  • Includes rubber grommet.
  • All products are tested before shipping.

Specifications:

Dimensions:

  • Interior diameter: 34mm
  • Exterior diameter: 92mm
  • Thickness: 18mm
  • Length of wires (stator to grommet): 100mm
  • Length of wires (grommet to plug): 150mm and 900mm

Other Specifications:

  • Number of wires: 4
  • Number of plugs: 2
  • Number of pins: 4

Wire to Wire Resistance:

  • Alternator (Yellow to Yellow): 0.4 ohms +/- 20%
  • Source (Red to Black/Red): 140 ohms +/- 20%
Stator Kawasaki KLF220 Bayou '88-'95 (RM01318)
